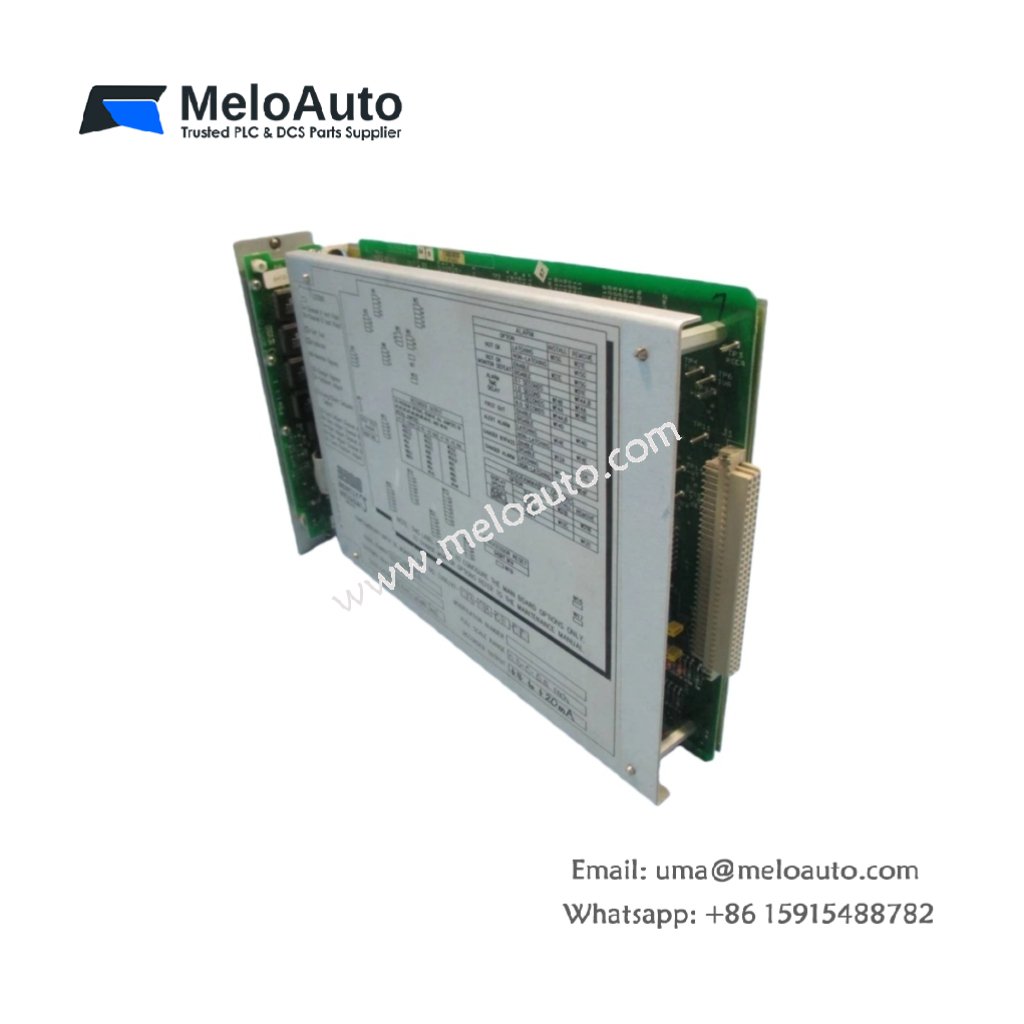

Bently 3300/47-XX-XX-02-00 Differential Expansion Monitor

The Bently Nevada 3300/47-XX-XX-02-00 Differential Expansion Monitor is a key component within the Bently Nevada 3300 System. It is designed to accurately measure the thermal expansion of machinery components such as shafts and casings. The “XX” in the part number refers to model-specific variations, so certain features may differ based on the exact configuration.

Key Features of the Bently Nevada 3300/47-XX-XX-02-00

Thermal Expansion Monitoring: Measures the expansion of machinery components, including shafts and casings.
Early Warning Alerts: Provides early detection of potential equipment issues caused by excessive thermal growth.
Dual Input Channels: Two independent channels enable simultaneous monitoring of expansion in different locations.
On-board Signal Processing: Accurately calculates thermal expansion, rate of expansion, and related parameters.
Alarm Outputs: Triggers alerts when expansion exceeds preset limits, helping to prevent damage.
Seamless Integration: Compatible with other Bently Nevada 3300 system modules and software for complete monitoring.

Applications

The 3300/47-XX-XX-02-00 Differential Expansion Monitor is widely used across various industries for the protection and optimization of machinery, including:

Power Plants: Monitors thermal expansion in turbine casings, steam lines, and other critical components.
Machinery Protection: Prevents potential damage by detecting thermal distress and excessive expansion.
Performance Optimization: Ensures machinery operates within the correct tolerances by monitoring thermal growth.
Preventive Maintenance: Tracks expansion trends to identify when maintenance or adjustments are required, improving machinery longevity.

Technical Specifications

Specification	Details
Model Number	3300/47-XX-XX-02-00
Product Type	Differential Expansion Monitor
System Compatibility	Compatible with Bently Nevada 3300 System
Number of Input Channels	2 (Independent channels)
Monitoring Parameters	Expansion, Rate of Expansion
Alarm Outputs	Yes (Triggers when preset limits are exceeded)
Signal Processing	On-board, for real-time data calculation
Mounting	Typically panel or rack-mounted
Temperature Range	-40°C to 85°C (-40°F to 185°F)
Output Type	Alarm and monitoring outputs
