Precision Analog Signal Generation for ET 200S Systems

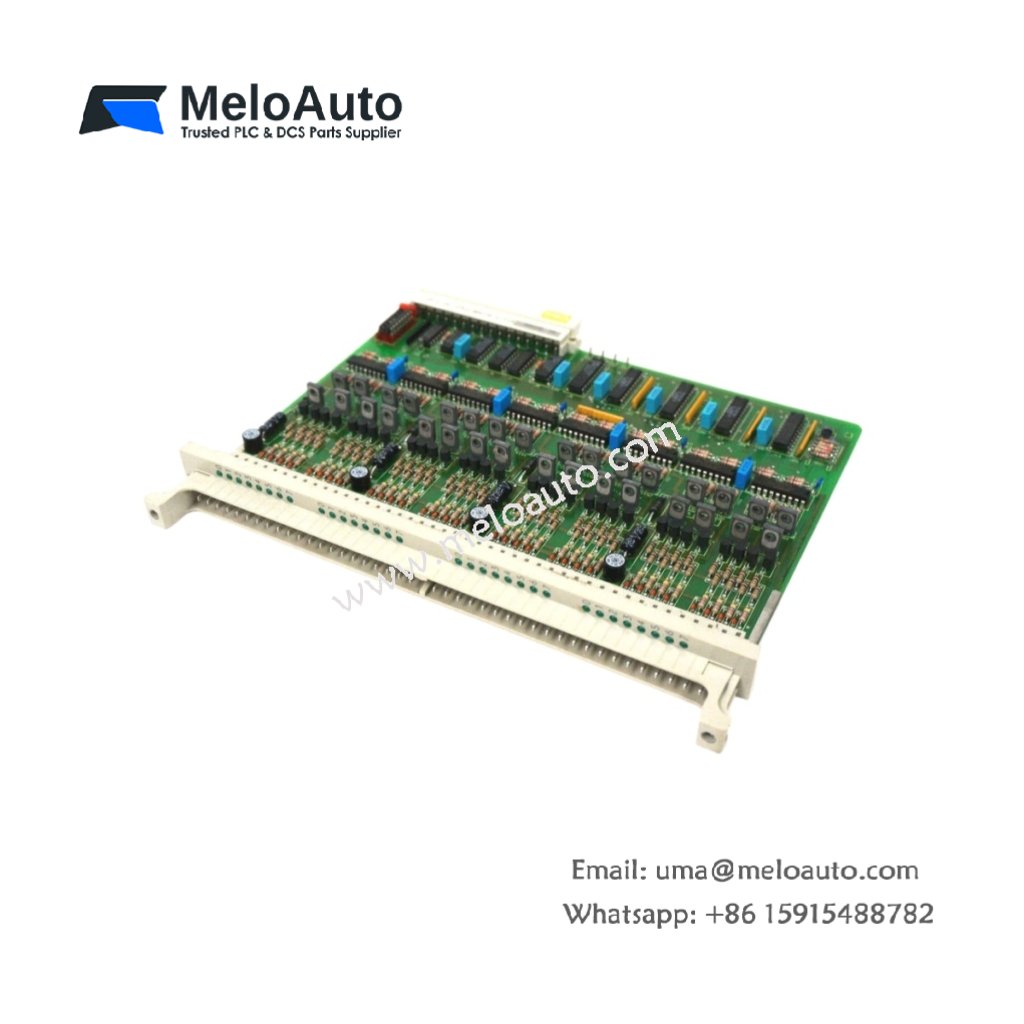

The Siemens 6ES7135-4GB00-0AB0 electronic module provides four analog output channels for the SIMATIC ET 200S distributed I/O system. This module generates standard 0-10V voltage or 4-20mA current signals to control actuators and process instruments. Each channel features 12-bit resolution, delivering precise analog control with minimal drift. The module includes programmable diagnostics for detecting open-circuit or short-circuit conditions. It also supports configurable output behavior during CPU stop or bus failure. Furthermore, the compact design saves valuable space in control cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Output Electronic Module |
| Product Line | SIMATIC ET 200S |
| Output Channels | 4 analog outputs |
| Output Signal | 0-10V or 4-20mA (configurable) |
| Resolution | 12 bits (including sign) |
| Accuracy | ±0.5% of full scale |
| Load Impedance | ≥ 2 kΩ (voltage) / ≤ 500 Ω (current) |
| Conversion Time | 1 ms per channel |
| Diagnostics | Open-circuit and short-circuit detection |
| Power Supply | Via backplane bus |
| Power Consumption | 150 mA from backplane |
| Electrical Isolation | 500V between channels and backplane |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (W x H x D) | 65 x 100 x 52 mm |
| Weight | 0.15 kg |
| Mounting | DIN-rail |
| Protection Class | IP20 |
| Certifications | CE, UL, CSA |
| Product Origin | Germany |
Application and System Integration
Engineers commonly deploy the Siemens 6ES7135-4GB00-0AB0 in flow control, temperature regulation, and valve positioning applications. This module integrates with ET 200S stations and S7-300/400 controllers through PROFIBUS DP. It provides smooth analog signals for modulating drives and process actuators. The module supports easy configuration via STEP 7 software. Consequently, plant operators achieve precise process control and improved product quality.
