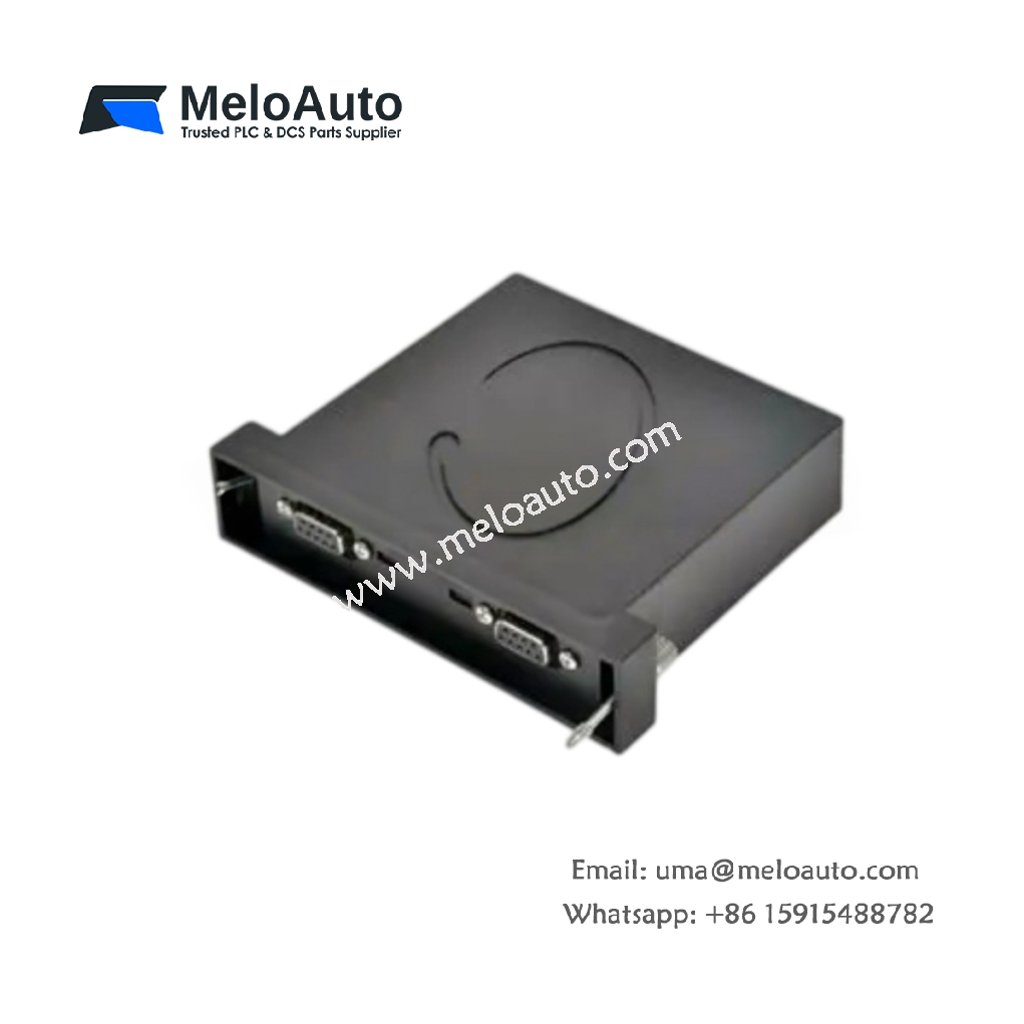

The 1034549-40 dual galvanic isolator field monitor module from Bently Nevada separates and conditions transducer signals inside machinery protection systems. Plant engineers install this module whenever ground loops and noise threaten measurement integrity. Consequently, it delivers clean, isolated data from field sensors to the monitor rack.
Key Technical Specifications
The table below outlines the main physical and electrical parameters of the 1034549-40 module.
| Parameter | Specification |
|---|---|
| Product Type | Dual Galvanic Isolator Field Monitor Module |
| Compatibility | Bently Nevada machinery protection systems |
| Dimensions | Approximately 254 mm x 127 mm x 51 mm |
| Weight | Approximately 1.0 kg (2.2 lbs) |
| Mounting | Rack frame or panel mounting base |
| Interface | Backplane bus and isolated transducer input terminals |
| Connectors | Multi-pin connector and coaxial input ports |
| Component Count | Multiple isolation transformers, signal conditioners, and driver circuits |
| Energy Storage | On-board capacitors for signal and voltage stabilization |
| Input Channels | Two independent isolated input channels |
| Isolation Type | Galvanic isolation between field and rack circuits |
| Operating Temperature | 0 degrees C to 60 degrees C |
| Storage Temperature | -40 degrees C to 85 degrees C |
| Humidity | 5% to 95% non-condensing |
Functional Overview
This module isolates field transducers from rack circuitry and conditions each signal for processing. Therefore, it blocks ground loops that would otherwise corrupt vibration and position readings. The 1034549-40 also filters electrical noise on both input channels. Meanwhile, its onboard energy storage stabilizes signals during transient voltage fluctuations.
Installation and Handling Notes
Always verify isolation ratings before connecting field sensors to the 1034549-40. In addition, use low-noise coaxial cable to protect signal integrity. Tighten all connectors fully to prevent intermittent data loss. Finally, confirm channel readings during commissioning.
