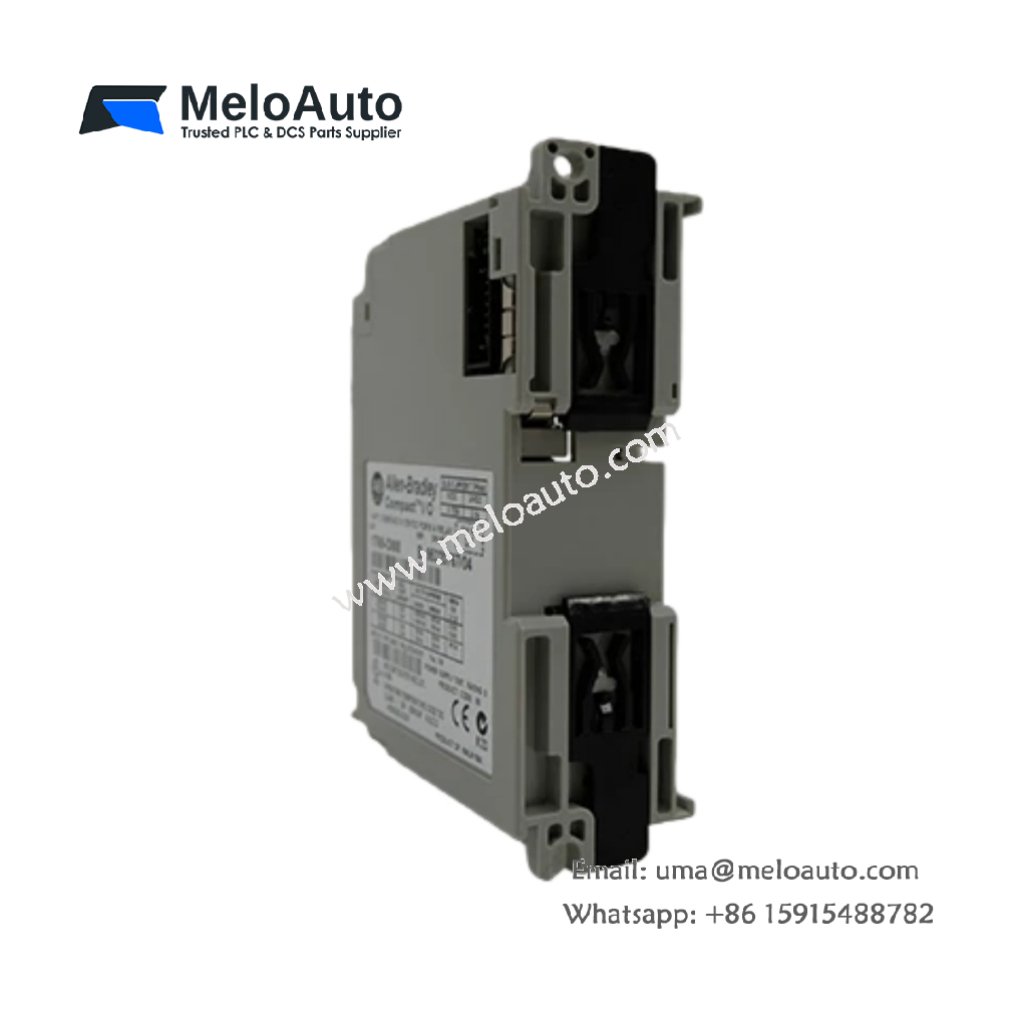

Allen-Bradley 1769-OW8 Relay Output Module

The Allen-Bradley 1769-OW8 is a high-performance relay output module in the CompactLogix series. It provides eight normally open output channels and supports both AC and DC voltage. Designed for industrial automation, this module delivers reliable performance with precise voltage and current handling. You can install it easily with CompactLogix or MicroLogix 1500 controllers for flexible I/O expansion.

Key Features

Eight Form A contact outputs allow versatile control for discrete devices.
Supports operating voltages from 5 to 265V AC and 5 to 125V DC.
Groups channels into two output groups with four channels each for varied voltage use.
Each output handles 2.5A at 120–240V AC, 1.0A at 125V DC, and 2.0A at 24V DC.
On/off signal delay is 10 ms, ensuring fast and responsive switching.
Compatible with 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 power supplies.
Supports remote I/O expansion via 1769-ADN DeviceNet or 1769-AENTR Ethernet adapters.
Certified to CE, c-UL, and C-Tick standards for industrial safety.

Technical Specifications

Specification	Details
Manufacturer	Allen-Bradley
Part Number	1769-OW8
Product Line	CompactLogix
Module Type	Relay Output Module
I/O Channels	8 normally open
Operating Voltage	5–265V AC, 5–125V DC
Current Rating	2.5A AC, 1A DC (125V), 2A DC (24V)
Signal Delay	10 ms on/off
Bus Current Draw	125 mA (5.1V DC), 100 mA (24V DC)
Wire Size (Solid)	22–14 AWG
Wire Size (Stranded)	22–16 AWG
Wire Type	Copper, 90°C rated
Heat Dissipation	2.83 W
Slot Width	1
Mounting	DIN Rail or Panel
Compatible Controllers	MicroLogix 1500; CompactLogix 5370 L1/L2/L3

Physical Dimensions and Origin

Dimensions: 118 × 35 × 87 mm
Weight: 0.28 kg (0.62 lbs)
Origin: USA

Installation and Compatibility

Allen-Bradley 1769-OW8 installs seamlessly with CompactLogix and MicroLogix 1500 controllers. The module supports a maximum of 8 modules per power supply, and it integrates with 1769-PB4, 1769-PA2, 1769-PB2, 1769-PA4 power units. Use copper wire rated for 90°C and follow terminal torque specifications for reliable connections.
