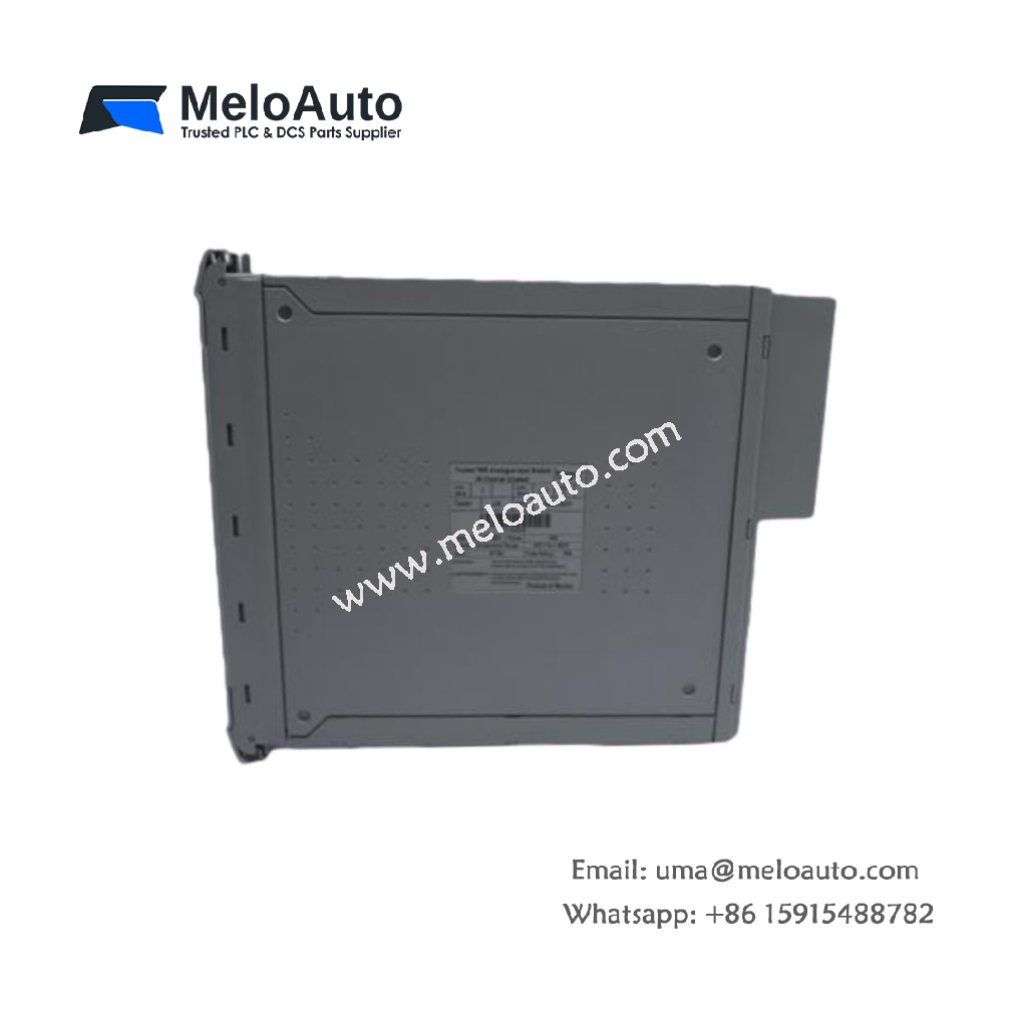

ICS Triplex T8222 Trusted Power Supply Unit

Product Overview

The ICS Triplex T8222 is a high-reliability Trusted Power Supply Unit (PSU), specifically designed for safety-critical applications. It plays a crucial role in the ICS Triplex Trusted system, converting a dual 24 VDC input to dual 15 VDC outputs. This power supply module ensures continuous, stable power for systems that require high availability and fault tolerance.

Built with a Triple Modular Redundant (TMR) design, the ICS Triplex T8222 guarantees operation even if one or two channels fail. As a result, it maintains uptime and reliability in critical applications where power disruptions can lead to severe consequences.

Key Features

Triple Modular Redundant (TMR) Design: Each channel in the ICS Triplex T8222 operates in triplicate. Therefore, even if one or two channels fail, the module continues to function without any disruption to system performance.
24 VDC Output at Up to 20 Amps: The ICS Triplex T8222 delivers 24 VDC output at up to 20 amps, ensuring reliable power for a wide range of industrial equipment. This makes it ideal for systems that require substantial current for operation.
Wide Input Voltage Range: Supporting an input voltage range of 18 VDC to 32 VDC, the ICS Triplex T8222 offers flexibility in power sources. It can easily operate with AC mains, DC batteries, or solar panels, providing versatility for various power setups.
Certified Trusted Design: The ICS Triplex T8222 meets the stringent requirements of the Functional Technology Assessment (FTA) standard. This certification ensures that the module provides the necessary safety integrity for safety-critical applications.
Comprehensive Diagnostics: The ICS Triplex T8222 includes advanced diagnostic features. It continuously monitors each channel’s status and provides real-time updates on the module’s overall health, making it easier to detect and address issues.
Ease of Installation and Operation: Designed for user convenience, the ICS Triplex T8222 comes with a comprehensive manual that provides step-by-step instructions for installation, configuration, and operation, ensuring seamless integration into existing systems.

Technical Specifications

Parameter	Value
Model	ICS Triplex T8222
Type	Trusted Power Supply Unit (PSU)
Input Voltage Range	18 VDC to 32 VDC
Output Voltage	Dual 15 VDC
Output Current	Up to 20 Amps
Fault Tolerance	Triple Modular Redundant (TMR)
Certification	Functional Technology Assessment (FTA) Standard
Diagnostics	Full channel and health status diagnostics
Operating Temperature	-20°C to +60°C
Dimensions (WxDxH)	150 mm x 200 mm x 100 mm
Weight	2.3 kg
