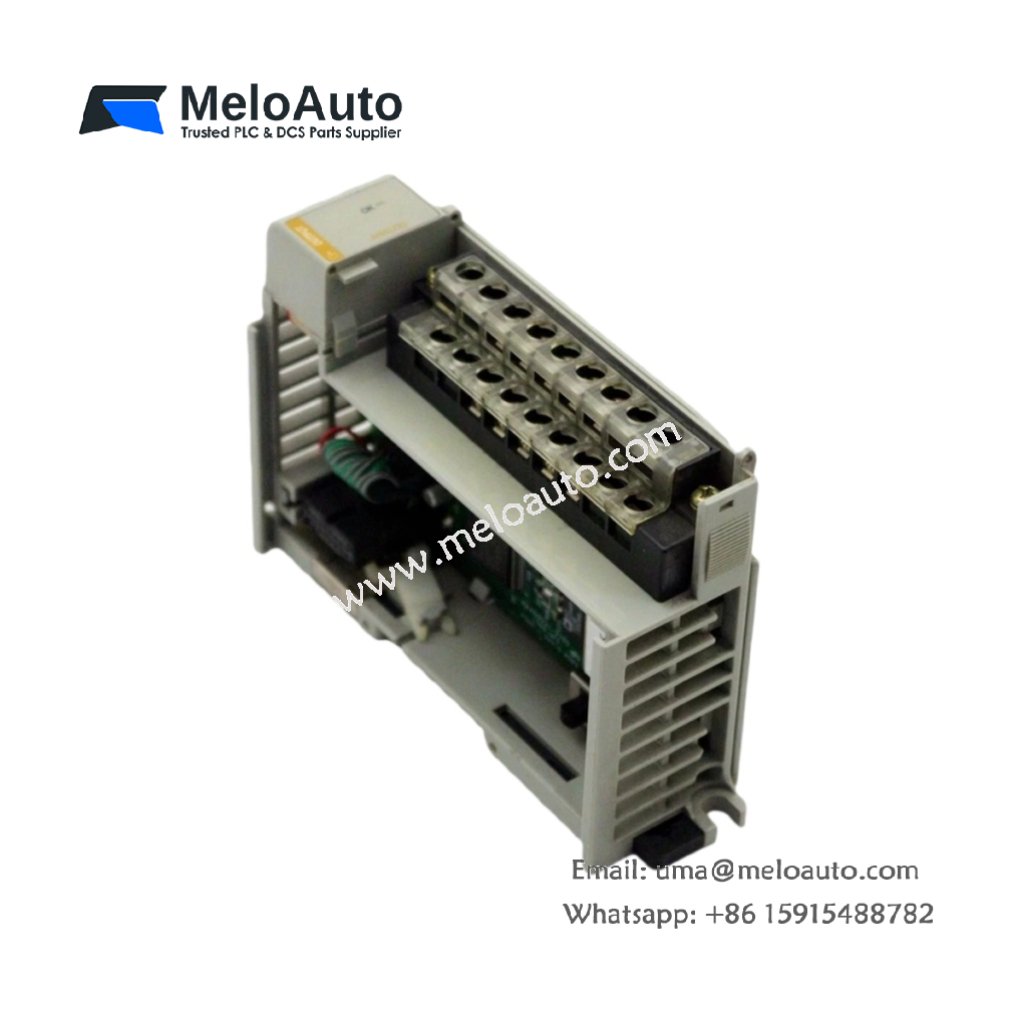

Allen-Bradley 1769-OF5 CompactLogix Analog Output Module

The Allen-Bradley 1769-OF5 is a high-performance analog output module designed specifically for industrial control systems. As part of Rockwell Automation’s CompactLogix™ 5000 series, it provides precise analog control for various field devices. This module supports 8 independent output channels, making it perfect for applications requiring analog voltage or current control.

Key Specifications

Specification	Details
Model	1769-OF5
Channels	8
Resolution	10-bit (0–1023 digital counts)
Output Range	0–10V DC or ±10V DC (Selectable)
Output Current	20mA maximum
Accuracy	±0.2% of full scale
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Mounting Type	DIN rail
Weight	0.22 kg (0.49 lbs)

Features and Benefits

Independent Channel Operation: Each output channel operates independently, providing flexibility for system design and customization.
Built-in Isolation: The module offers robust protection against electrical noise and ground faults, ensuring reliable performance in harsh environments.
Diagnostic LEDs: The module features clear visual indicators for each channel. These LEDs make it easy to monitor operational status and quickly troubleshoot issues.
Software Configurable: You can configure the output range, scaling, and filtering via the programming software. This adaptability makes it suitable for a wide range of applications.
Compact Design: Its small size allows the module to fit into tight spaces, maximizing panel real estate and simplifying system integration.
Easy Setup and Installation: Designed for straightforward installation, this module minimizes setup time and reduces downtime.

Applications

The 1769-OF5 is ideal for various industrial automation tasks, such as:

Controlling Valves and Actuators: It delivers precise output signals, perfect for process control applications.
Dimming Lights: The module is used to adjust the brightness of lighting systems, offering fine-tuned control in environments that require variable lighting.
Temperature Control: Commonly used in HVAC systems to regulate temperatures through accurate analog outputs.
Interfacing with Sensors: It provides the necessary analog output signals to field devices like sensors and transducers, enabling efficient data transfer and control.
