Overview

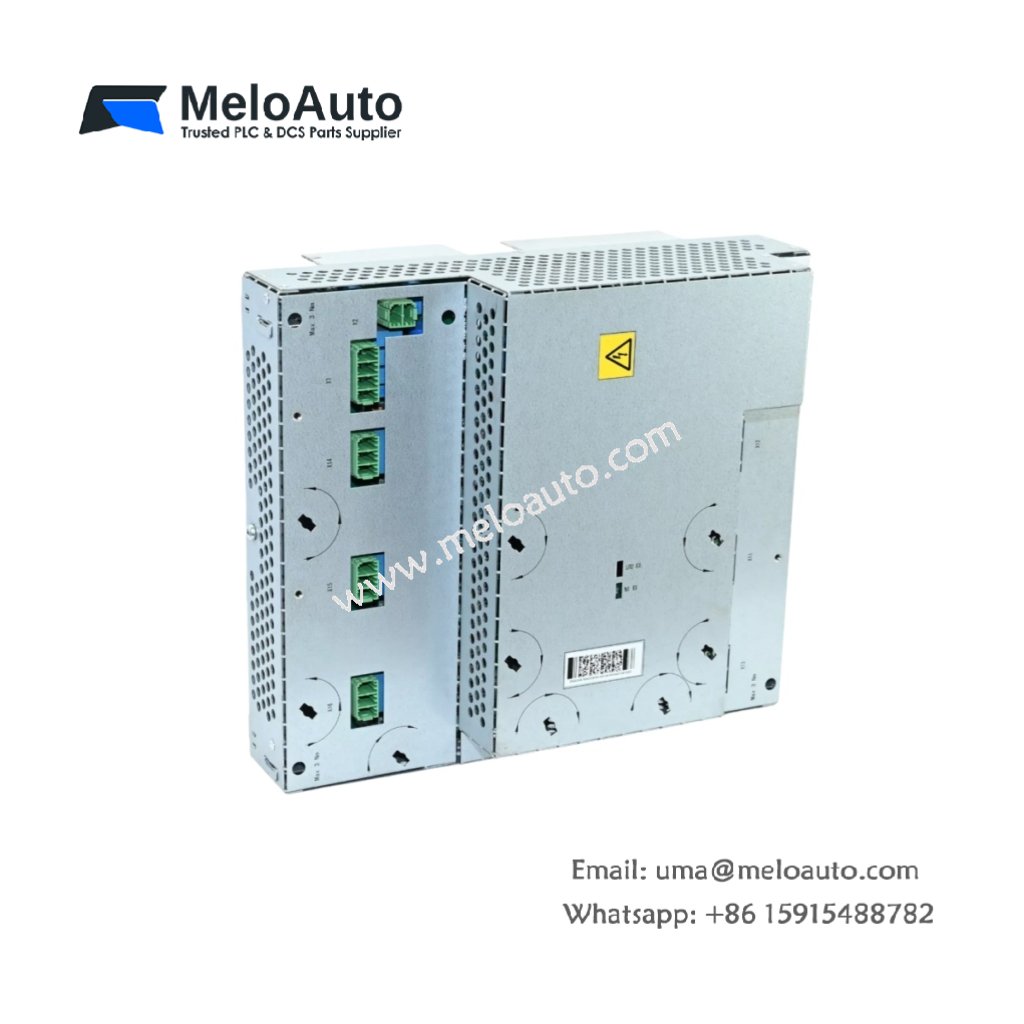

The ABB DSQC406 is a high-performance servo drive unit designed for precise control of AC servo motors in a wide range of industrial applications. Whether applied in robotics, industrial automation, or other demanding systems, the DSQC406 offers enhanced operational efficiency and performance. It ensures smooth motor control, optimizing robotic and machine movement with exceptional accuracy.
Key Features
- Flexible Power Ratings: The DSQC406 comes in power ratings ranging from 0.75 kW to 3 kW, ensuring compatibility with various industrial needs. This flexibility makes it an ideal choice for both light and heavy-duty applications.
- High Torque Capabilities: The DSQC406 delivers continuous torque of up to 23 Nm, ensuring stable performance in different operational conditions. Additionally, it offers a peak torque of up to 46 Nm, which helps the motor handle even the most demanding tasks.
- Precise Speed Control: Capable of controlling motors at speeds of up to 3000 rpm, the DSQC406 ensures dynamic and accurate speed adjustments. This allows for optimal motor performance, making it perfect for processes requiring precise speed regulation.
- Exceptional Positioning Accuracy: The offers high-precision control with an accuracy of up to +0.001 mm. This ensures repeatable, exact motion control, which is critical for tasks that require meticulous handling, such as assembly or material processing.
Technical Specifications
| Specification | Details |
|---|---|
| Power Rating | 0.75 kW to 3 kW |
| Continuous Torque | Up to 23 Nm |
| Peak Torque | Up to 46 Nm |
| Speed Range | Up to 3000 rpm |
| Positioning Accuracy | ±0.001 mm |
| Motor Type Supported | AC Servo Motors |
| Manufacturer | ABB Robotics |
Applications
The ABB DSQC406 excels in a variety of industrial sectors where precise control is essential. Its ability to deliver high torque, speed control, and accuracy makes it perfect for:
- Industrial Automation: Used in factory automation systems to drive AC servo motors, ensuring reliable operation with precise movement.
- Robotics: Critical for robotic arms, the DSQC406 ensures precise and repeatable motion, making it suitable for automated tasks requiring high accuracy.
- CNC Machines: The DSQC406 is also highly effective in CNC machines, where exact positioning and torque control are required for machining operations.
Why Choose the ABB DSQC406?
- Scalable Power Options: The DSQC406 accommodates various power ratings to support both small and large systems, offering a tailored solution for any application.
- Enhanced Performance: Its continuous and peak torque capabilities, combined with precise speed and position control, enable the DSQC406 to handle demanding operations efficiently.
- Reliability and Durability: Built to perform under harsh industrial conditions, the DSQC406 offers long-term reliability with minimal maintenance, reducing downtime and increasing system longevity.
