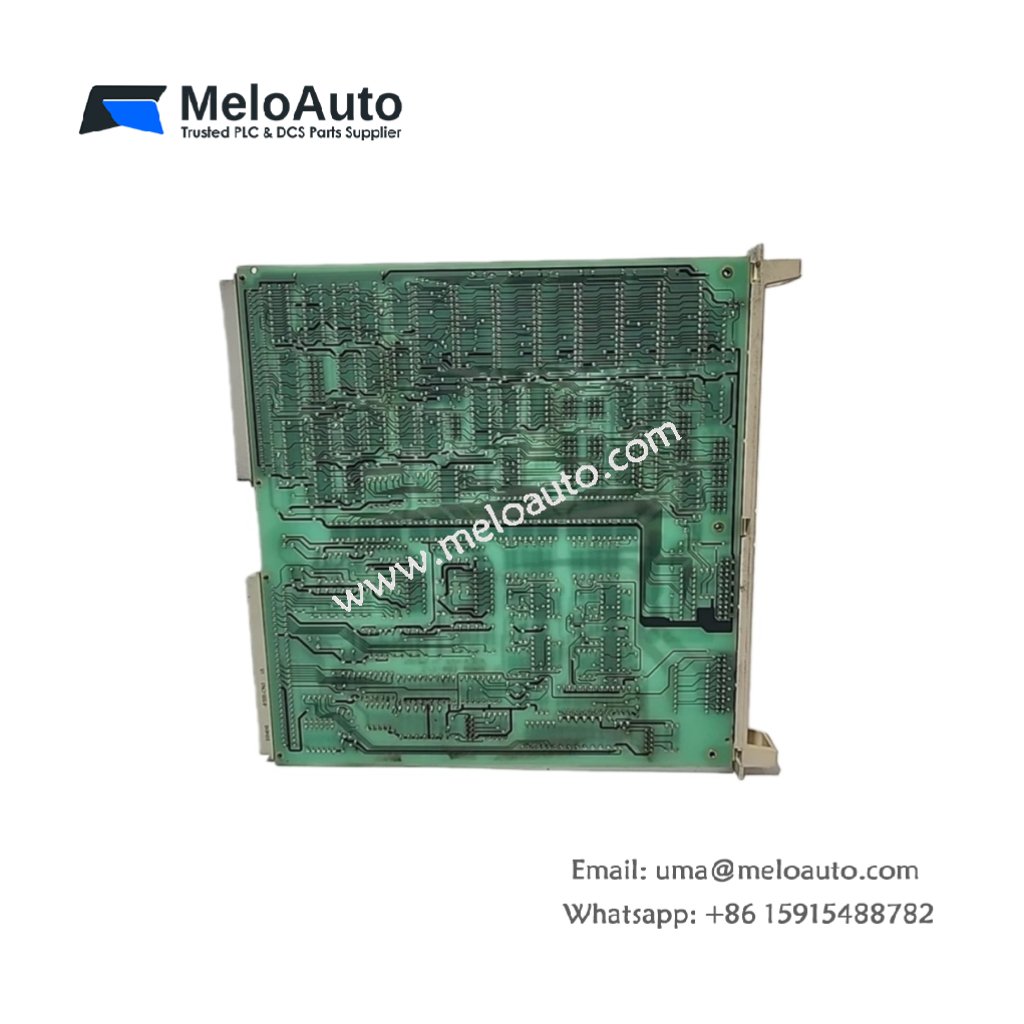

ABB DSDP150 5716-0001-GF Pulse Encoder Input Unit

Overview

The ABB DSDP150 5716-0001-GF is a highly efficient pulse encoder input unit, designed for accurate pulse counting and frequency measurement. It operates flawlessly in industrial automation systems, where precision and reliability are paramount. With its ability to handle frequencies of up to 10 kHz, it supports a wide variety of industrial applications. Additionally, this unit works with a 12V DC power supply, making it compatible with numerous systems.

Key Features and Specifications

The DSDP150 offers a range of robust features that make it an ideal choice for demanding industrial environments. It efficiently processes pulse counting and frequency measurement tasks, delivering accurate results. Moreover, its compact size and simple integration make it an excellent fit for space-limited applications.

Technical Specifications

The DSDP150 features a compact design, measuring 280 mm in length, 62 mm in width, and 15 mm in height. Weighing just 0.425 kg, it integrates seamlessly into various industrial systems. Furthermore, it adheres to RoHS exemptions and fits into WEEE Category 5.5, making it an environmentally-friendly choice.

Functionality and Use Cases

The ABB DSDP150 excels in industrial applications that require precise pulse counting and frequency measurements. For instance, it accepts inputs from pulse generators with frequencies up to 10 kHz, making it perfect for high-speed operations. As a result, this unit is ideal for use in process control, industrial automation, and robotics, where real-time frequency tracking is crucial.

Benefits

• High-Speed Performance: The DSDP150 processes pulse frequencies of up to 10 kHz, ensuring high-speed and accurate measurements.
• Reliable Power Supply: It operates with a stable 12V DC power supply, which supports continuous and reliable performance.
• Space-Saving Design: The unit’s compact dimensions make it easy to install in tight spaces, providing flexibility for diverse systems.
• Durable and Long-Lasting: Engineered for industrial environments, the DSDP150 ensures long-term reliability and minimal maintenance.

Manufacturer and Series

Manufactured by ABB, the DSDP150 5716-0001-GF is part of ABB’s extensive portfolio of automation solutions. Known for their precision and reliability, ABB products are widely recognized for delivering consistent performance in industrial settings.
