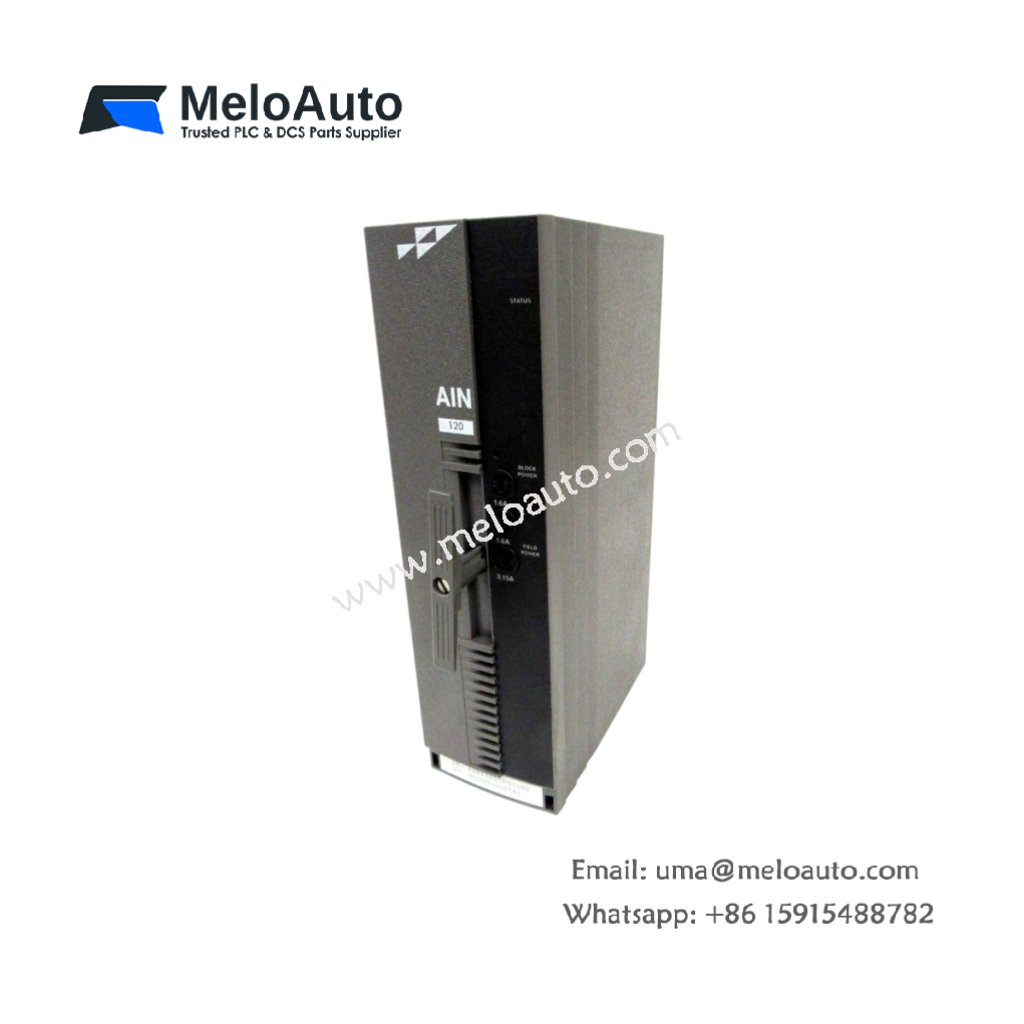

ABB Bailey PHBAIN12010000: Analog Input Block

Physical Dimensions and Mounting Details

The ABB Bailey PHBAIN12010000 converts analog field signals into digital values for controllers. This module measures 125mm in height, 70mm in width, 90mm in depth. You can mount this unit on a standard 35mm DIN rail inside any control cabinet. The block weighs 0.48 kilograms , allowing for straightforward installation in dense layouts.

Internal Architecture and Component Density

The ABB Bailey PHBAIN12010000 contains 135 individual components on its four-layer PCB. Twelve instrumentation amplifiers condition each analog channel independently. Two 16-bit analog-to-digital converters digitize signals with high resolution. Additionally, sixteen protection diodes clamp overvoltage conditions on every input channel.

Energy Storage and Signal Processing

This analog block stores 15.8 joules across six electrolytic capacitors. This energy reserve powers signal conversion for up to 45 milliseconds during power dips. The storage also maintains calibration coefficients while the system recovers. Consequently, the module prevents data loss during brief supply interruptions.

Interface and Connectivity Features

The ABB Bailey PHBAIN12010000 provides six 6-pin terminal blocks for analog wiring. A single 20-pin IDC header links the block to the Bailey backplane. You will also find one 2-pin connector for external excitation supply. Each terminal accepts AWG 24 to AWG 18 shielded instrument cable for noise-sensitive signals.

Signal Conditioning and Filtering

This analog block includes software-selectable input ranges for voltage or current. You can configure each channel as 0-10V, ±10V, 0-20mA, or 4-20mA individually. A 50 Hz/60 Hz digital filter rejects power line noise effectively. Furthermore, the module provides 1500V AC isolation between field inputs and the backplane.

Conversion Accuracy and Resolution

The ABB Bailey PHBAIN12010000 achieves 16-bit resolution across the full input range. Accuracy remains within ±0.1% of span at 25°C ambient temperature. The module auto-calibrates every 5 seconds to compensate for temperature drift. Additionally, you can perform manual zero and span adjustments through software commands.

Diagnostic and Status Indication

Thirteen LED indicators provide comprehensive feedback for module and channels. Green PWR confirms the presence of valid backplane power to the block. Amber RUN blinks during active analog-to-digital conversion cycles. Red FAULT lights up for any configuration mismatch or hardware error. Additionally, each channel includes a signal present LED that illuminates above 50% of range.

Configuration and Addressing

You can configure this analog block using DIP switches for base address selection. The module supports discrete polling by the host controller at configurable intervals. You can also enable limit detection with high and low alarms per channel. Furthermore, the module stores configuration settings in non-volatile EEPROM without battery backup.
