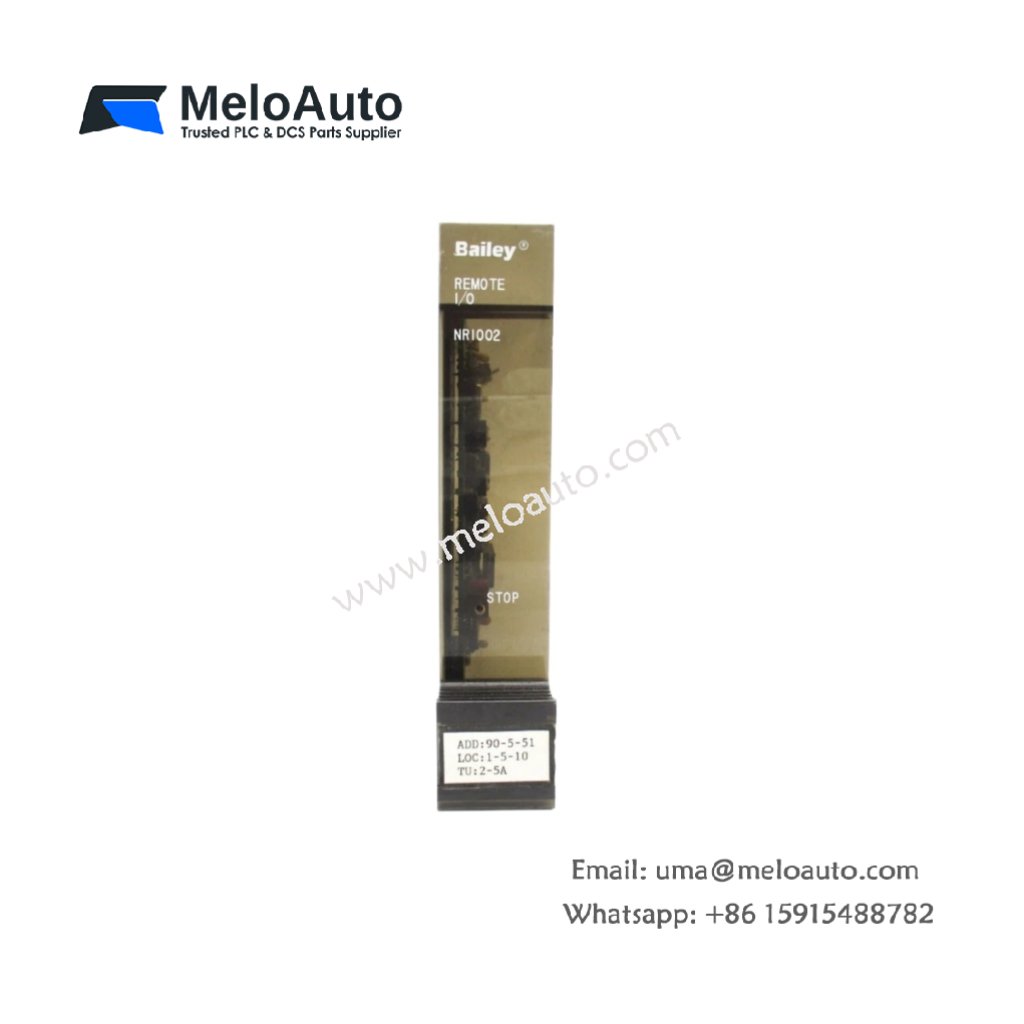

ABB Bailey NRIO02: Remote I/O Module

Physical Dimensions and Mounting Details

The ABB Bailey NRIO02 extends I/O coverage to distant field devices and equipment. This module measures 140mm in height, 75mm in width, 100mm in depth. You can mount this unit on a standard 35mm DIN rail inside remote field enclosures. The module weighs 0.58 kilograms , requiring secure mounting for vibration-prone locations.

Internal Architecture and Component Density

The ABB Bailey NRIO02 contains 172 individual components on its six-layer PCB. Sixteen opto-isolators separate input channels from the internal logic circuits. Eight power MOSFETs switch output loads up to 1 ampere each. Additionally, twenty flyback diodes protect outputs from inductive load switching spikes.

Energy Storage and Remote Data Buffering

This remote module stores 21.5 joules across eight electrolytic capacitors. This energy reserve maintains input data buffering for up to 50 milliseconds during communication loss. The storage also powers output hold circuits until the host restores link. Consequently, field devices continue operating through temporary network interruptions.

Interface and Communication Features

The ABB Bailey NRIO02 provides four 10-pin terminal blocks for all field wiring. A single 5-pin connector handles RS-485 communication and external power. You will also find two 2-pin connectors for daisy-chaining multiple remote modules. Each terminal accepts AWG 24 to AWG 16 copper wire for reliable field connections.

Remote Communication Protocol

This module uses Modbus RTU protocol over a two-wire RS-485 network. You can configure the station address from 1 to 247 using onboard DIP switches. The module supports baud rates of 9.6, 19.2, 93.75, and 187.5 kbps. Furthermore, the unit auto-synchronizes to the host scan rate without manual timing adjustments.

Input Signal Processing

The ABB Bailey NRIO02 filters each input with a 2ms hardware debounce circuit. This filtering rejects contact bounce and electrical noise effectively. Each channel includes reverse polarity protection for error-tolerant field wiring. Green LEDs illuminate for every active input, giving you instant visual feedback.

Output Switching and Protection

This remote module features current-limited outputs that trip at 1.5 amperes. Each output includes over-temperature shutdown that resets automatically upon cooling. You can connect outputs directly to solenoids, contactors, or pilot lights without external relays. Amber LEDs show output status and flash to indicate a thermal fault condition.

Diagnostic and Status Indication

Twenty-eight LED indicators provide comprehensive status for all I/O channels. Green shows active inputs or energized outputs under normal conditions. Red indicates a channel fault such as short-circuit or over-temperature. Four additional LEDs show module power, communication active, network error, and watchdog status.

Distributed Architecture Benefits

You can install the ABB Bailey NRIO02 up to 1200 meters from the host controller. The module supports daisy-chain wiring with up to 31 units on one network. Remote placement reduces field cabling costs significantly compared to centralized I/O. Each unit operates independently, so one failure does not affect other remote modules.

Environmental Specifications and Compliance

You can operate this remote I/O module from -20°C to 60°C ambient temperature without derating. Storage temperature ranges from -40°C to 85°C for long-term preservation. Non-condensing humidity tolerance spans 5% to 95% for harsh field conditions. This module meets IEC 61131-2 standards and carries CE and UL marks.
