Functional Overview

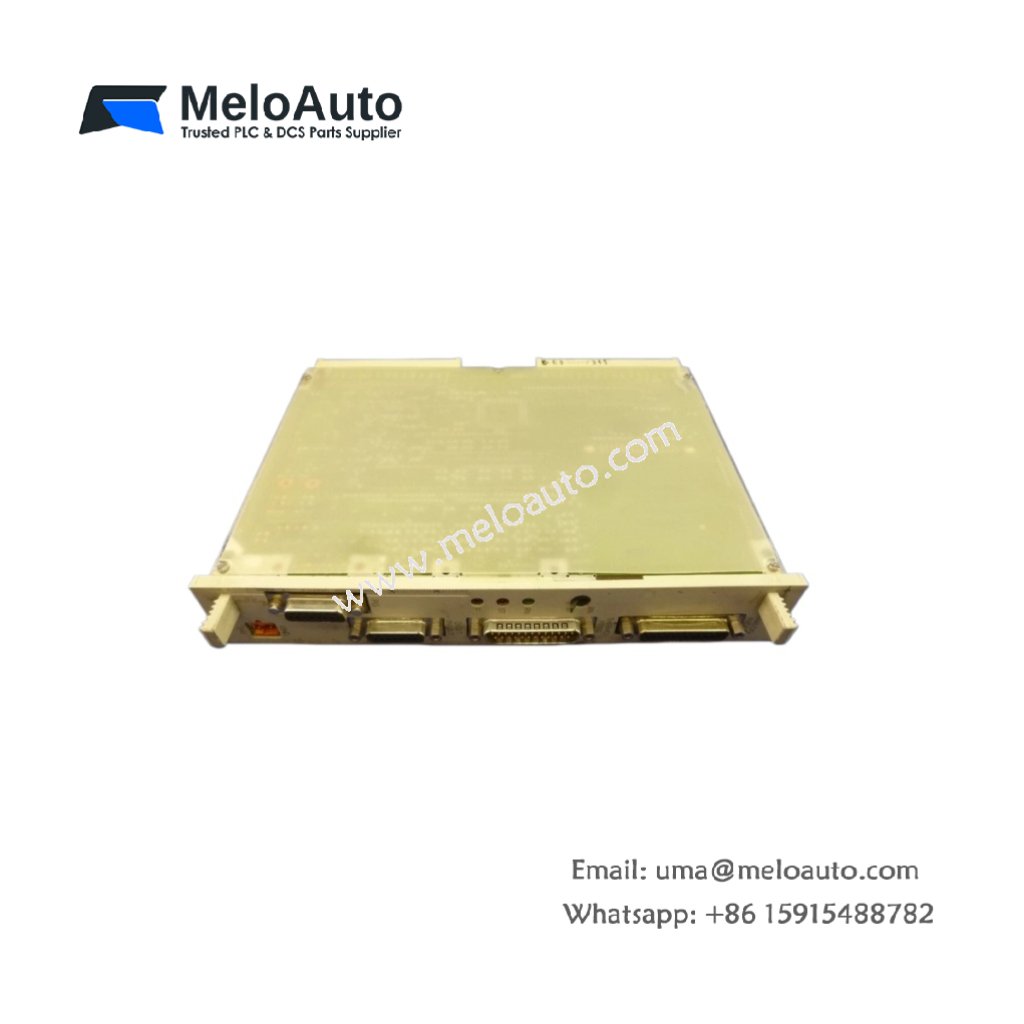

The 6ES5252-3AA31 operates as an intelligent I/O module for the Siemens SIMATIC S5 programmable logic controller series. It functions as a dedicated coprocessor, offloading specific control tasks from the main CPU. This architecture enhances overall system throughput and deterministic response times. The module manages both discrete and analog signal processing independently. Additionally, it performs local pre-processing, reducing the communication load on the central processor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Intelligent I/O Module |
| Part Number | 6ES5252-3AA31 |
| Processor | 8-bit microcontroller (dedicated) |
| Memory Capacity | 8 KB RAM (battery-backed) |
| Program Storage | 8 KB EPROM (optional) |
| Communication | S5 backplane bus |
| I/O Channels | 16 digital inputs / 16 digital outputs (configurable) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply | 5 VDC (via backplane) |
| Power Consumption | 1.5 A (typical) |
| Dimensions | Standard S5 single-width (approximately 25.0 cm x 5.0 cm x 11.0 cm) |
| Weight | 0.6 kg |
| Status Indicators | 2 LEDs (power, CPU error) |
Intelligent Processing Capabilities
The module features a dedicated microcontroller for handling local signal conditioning. It processes analog values and filters digital inputs without burdening the central CPU. Furthermore, it can execute simple logic operations like comparisons and timers at the I/O level. This local intelligence significantly reduces the main PLC’s scan time. Users can also store parameter sets locally for rapid reconfiguration during maintenance.
Applications and Integration
The 6ES5252-3AA31 remains compatible with the Siemens S5-115U, 135U, and 155U systems. It is commonly deployed in material handling and packaging lines.
