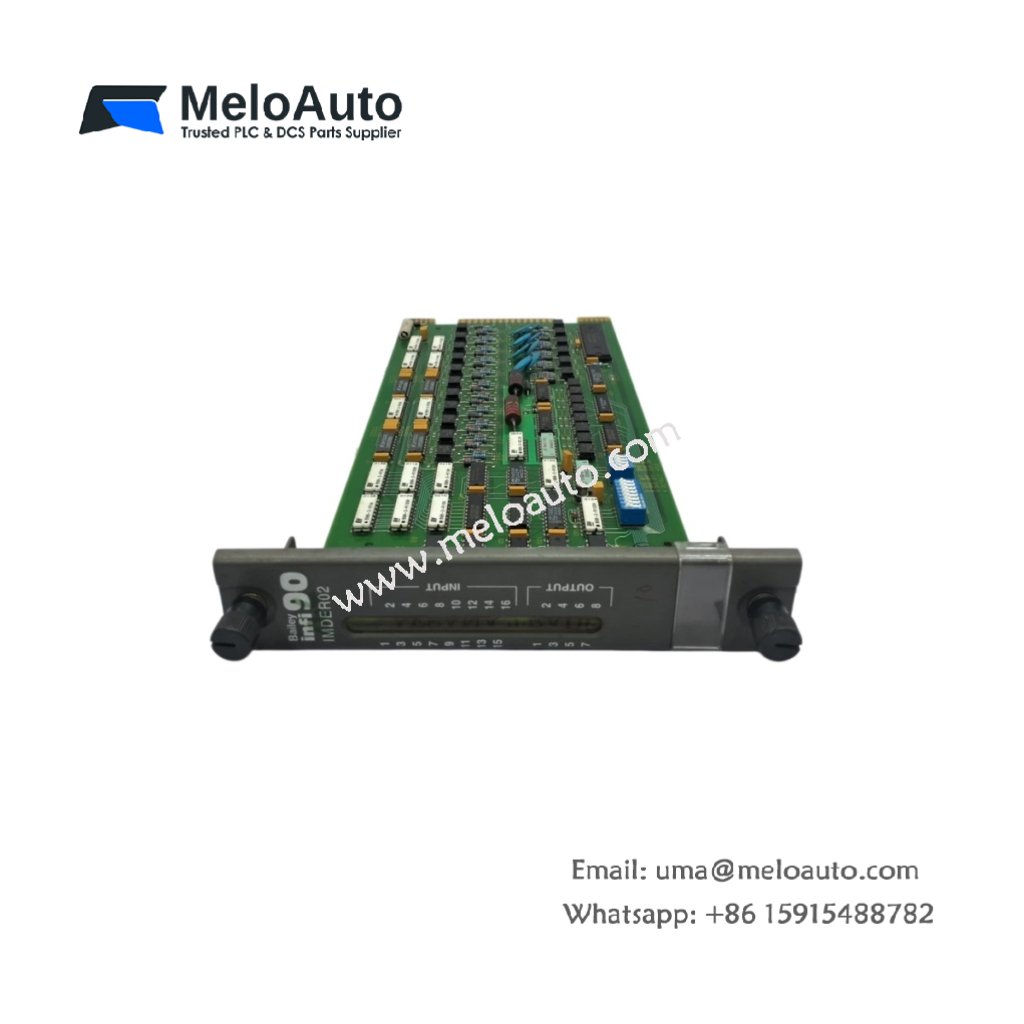

ABB Bailey IMDER02 Digital Exchange Repeater

Distributed control systems require signal regeneration for extended communication distances. The ABB Bailey IMDER02 digital exchange repeater provides this critical signal conditioning function. This module amplifies and retransmits digital signals across long cable runs. It maintains signal integrity and prevents data degradation effectively.

Technical Architecture and Specifications

This module features a standard Eurocard form factor for rack-based installation. Its dimensions measure 23.5 cm in height and 16.0 cm in depth. The ABB Bailey IMDER02 weighs approximately 0.5 kilograms for secure mounting. It interfaces with the system backplane using a 96-pin DIN 41612 connector. This connector ensures reliable power delivery and signal exchange.

The internal assembly contains two integrated circuit boards working in coordination. One board handles signal amplification and conditioning, while the other provides isolation barriers. Engineers will note the absence of internal battery backup or energy storage components. This passive design eliminates scheduled battery replacement requirements entirely. Consequently, facility managers achieve reliable operation without periodic maintenance interventions.

Connectivity and Signal Regeneration

The ABB Bailey IMDER02 provides two independent communication channels for signal repeating. Each channel accepts input from one segment and regenerates output to the next segment. For network connections, it utilizes standard screw terminal blocks for wiring. These terminals accept AWG 18 to 24 gauge conductors securely.

Specification	Detail
Model	IMDER02
Manufacturer	ABB Bailey
Form Factor	Eurocard
Dimensions (H x D)	23.5 cm x 16.0 cm
Weight	0.5 kg
Backplane Connector	96-pin DIN 41612
Communication Channels	2 (Independent)
Terminal Type	Screw Clamp (AWG 18-24)
Board Count	2 Integrated Boards
Energy Storage	None (Battery-Free)

Reliability and System Integration

The ABB Bailey IMDER02 operates reliably across demanding industrial environments. It functions within a temperature range of 0°C to 60°C. Isolation barriers protect connected equipment from ground loop interference effectively. These barriers prevent electrical noise from disrupting critical control communications. Front-panel LEDs provide immediate diagnostic feedback for maintenance personnel. Operators can verify channel activity and signal quality without specialized test equipment.
