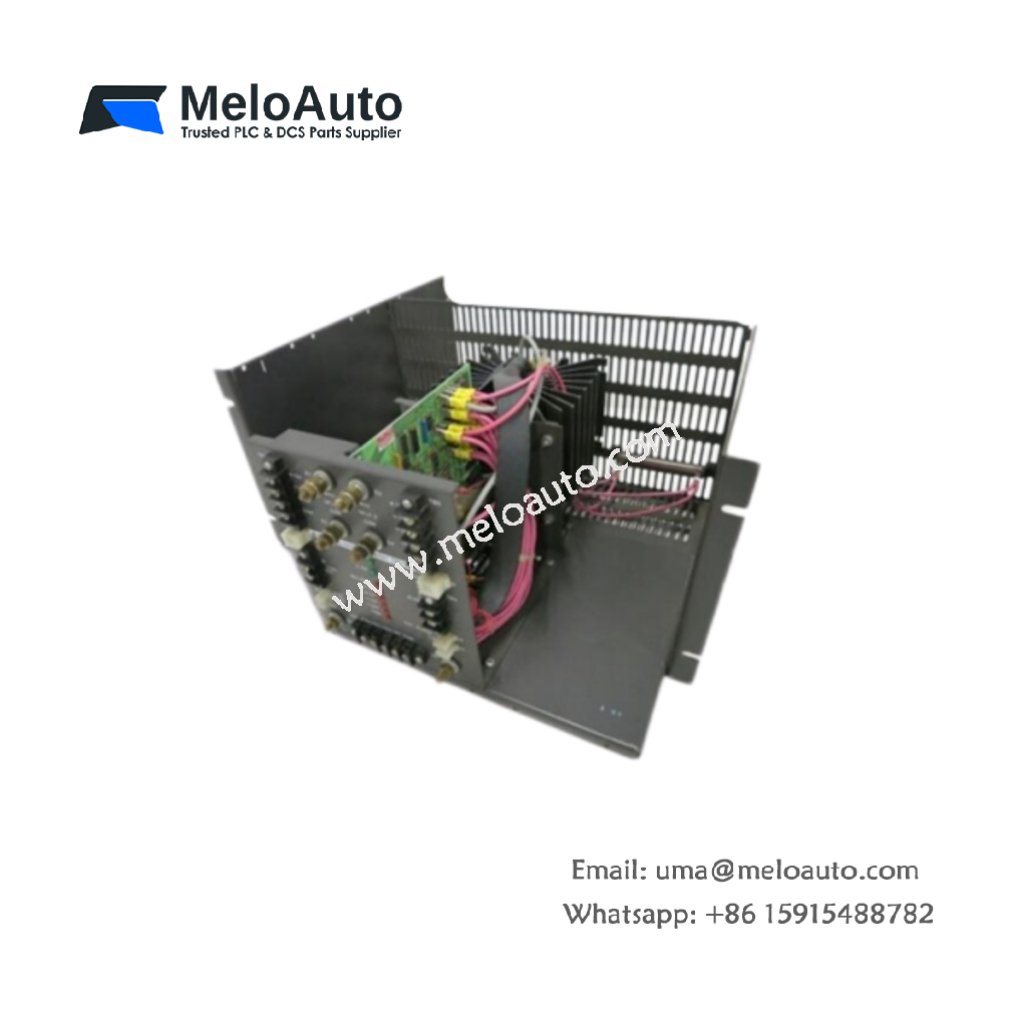

ABB Bailey IEMMU04 Interface Electronic Module

Control systems require reliable signal interfacing between diverse components. The ABB Bailey IEMMU04 interface electronic module fulfills this essential connectivity role. This module manages signal conversion and distribution across multiple system elements. It ensures seamless communication between field devices and the main controller.

Technical Architecture and Specifications

This module features a standard Eurocard form factor for rack-based installation. Its dimensions measure 23.5 cm in height and 16.0 cm in depth. The ABB Bailey IEMMU04 weighs approximately 0.6 kilograms for secure mounting. It interfaces with the system backplane using a 96-pin DIN 41612 connector. This connector provides robust power delivery and signal exchange.

The internal assembly contains three integrated circuit boards working in coordination. One board manages signal conditioning, another handles protocol conversion, and the third provides isolation barriers. Engineers will note the absence of internal battery backup or energy storage components. This passive design eliminates scheduled battery replacement requirements entirely. Consequently, facility managers achieve reliable operation without periodic maintenance interventions. You can explore similar industrial interface solutions for reference.

Connectivity and Signal Processing

The ABB Bailey IEMMU04 provides eight configurable input and output channels. Each channel supports either discrete or analog signal types based on jumper settings. For field wiring, it utilizes front-facing screw terminal blocks with clamp connections. These terminals accept AWG 18 to 24 gauge conductors securely. Status indicators display channel activity and fault conditions clearly.

Specification	Detail
Model	IEMMU04
Manufacturer	ABB Bailey
Form Factor	Eurocard
Dimensions (H x D)	23.5 cm x 16.0 cm
Weight	0.6 kg
Backplane Connector	96-pin DIN 41612
Configurable Channels	8 (Discrete or Analog)
Terminal Type	Screw Clamp (AWG 18-24)
Board Count	3 Integrated Boards
Energy Storage	None (Battery-Free)

Isolation and System Integration

The ABB Bailey IEMMU04 operates reliably across standard industrial environments. It functions within a temperature range of 0°C to 60°C. Isolation barriers protect the control system from field wiring faults effectively. These barriers prevent ground loops and voltage spikes from damaging sensitive components. Front-panel LEDs provide immediate diagnostic feedback for maintenance personnel. Operators can verify channel configuration and signal status without specialized tools.
