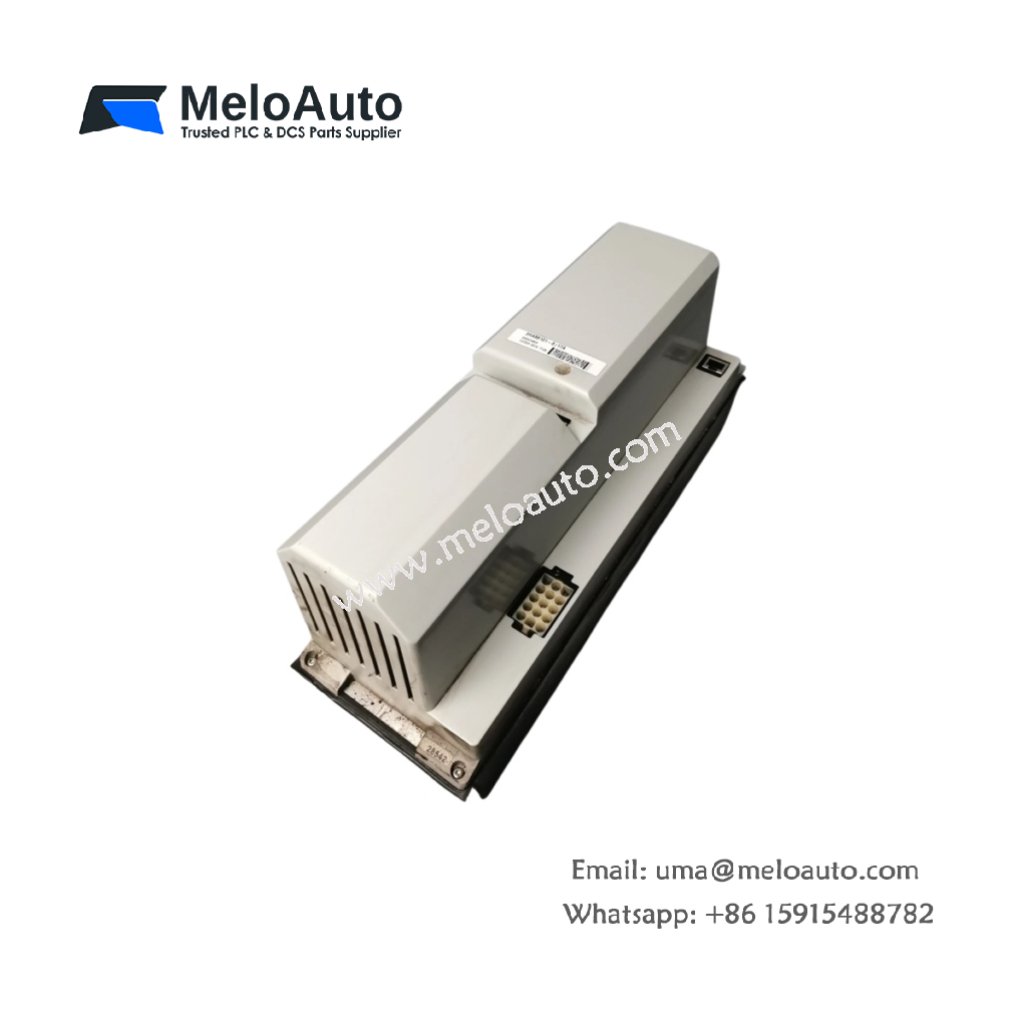

ABB 3HAB8101-8/17A Servo Drive

The 3HAB8101-8/17A controls AC servo motors for high-power industrial motion. This drive converts 400V AC into regulated current for motor phases. It operates with high switching frequency for smooth torque delivery.

Key Technical Specifications

Physical Dimensions and Component Layout

This drive measures 32.0 cm in length and 20.0 cm in width. Its total height reaches 11.0 cm including the heat sink. 3HAB8101-8/17A weighs 5.8 kg for robust panel mounting. You will find 256 discrete components on an eight-layer PCB.

Moreover, the drive integrates a 3900 µF DC link capacitor bank. This bank stores energy for short power interruptions. It also filters ripple from the rectified AC input.

Control Modes and Feedback

The drive supports position, velocity, and torque control modes. You can select the mode via software parameters. Resolver and encoder interfaces provide precise motor position feedback. Hall sensors also work for brushless DC motor commutation.

Protection Features and Diagnostics

Overcurrent protection shuts down the drive at 34 A peak. Overtemperature protection activates at 85°C heat sink temperature. LED indicators show power, fault, and enable status. A fault relay output signals errors to the PLC.

Typical Application Scenarios

You can deploy 3HAB8101-8/17A in large robotics, CNC machines, and heavy automation. It also works well for extruders, presses, and material handling systems. This drive controls torque, speed, and position with high precision. Its 17A rating suits high-power servo motors.
