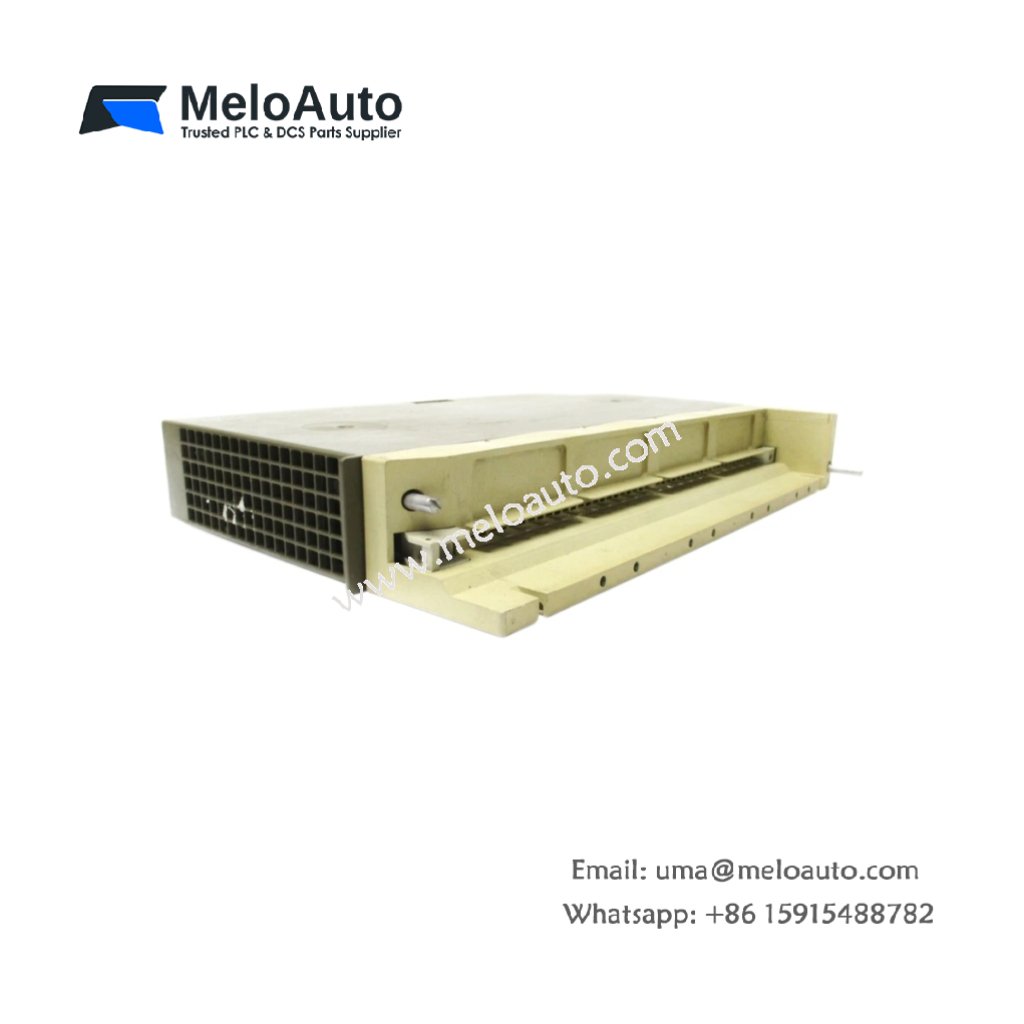

The 6ES5458-7LB11 drives industrial actuators from SIMATIC S5 PLC outputs. This module provides reliable switching for solenoids, contactors, and indicator lamps. You can rely on it for discrete machine control applications.
Key Technical Parameters
The table below lists all essential technical specifications for this digital output module.
| Specification | Details |
|---|---|
| Part Number | 6ES5458-7LB11 |
| Product Type | Digital Output Module |
| Compatibility | SIMATIC S5 PLC systems |
| Number of Outputs | 8 digital outputs |
| Output Type | Relay (form A, normally open) |
| Switching Voltage (AC) | 250V AC maximum |
| Switching Voltage (DC) | 30V DC maximum |
| Output Current (AC) | 2 A per channel (resistive) |
| Output Current (DC) | 2 A per channel (resistive) |
| Inrush Current | 5 A for 20 ms |
| Coil Voltage | 24V DC (internal) |
| Dimensions (W x H x D) | 250 mm x 25 mm x 210 mm |
| Weight | Approx. 0.62 kg |
| Terminal Type | Screw terminal block |
| Power Supply | 5V DC from backplane + 24V DC external |
| Current Consumption | 120 mA (logic) + 200 mA (relay coils) |
| Operating Temperature | 0°C to 55°C |
Physical Characteristics and Installation
This digital output module weighs approximately 0.62 kg for standard rack mounting. Its dimensions measure 250 mm x 25 mm x 210 mm for S5 single-width slots. First, slide the 6ES5458-7LB11 into a free I/O rack position. Then, connect your loads to the screw terminals. Finally, secure the module using the top and bottom locking screws. LED indicators on the front show the status of every output channel.
Relay Specifications and Switching Ratings
The 6ES5458-7LB11 provides 8 form A (normally open) relays for load control. Each relay switches 250V AC or 30V DC maximum. The continuous current rating reaches 2 A per channel for resistive loads. Inrush current handling goes up to 5 A for 20 milliseconds. Mechanical life exceeds 10 million operations. Electrical life reaches 100,000 operations at rated load.
Power Requirements and Isolation
This module draws 120 mA from the 5V DC backplane for logic circuits. The relay coils require an external 24V DC supply drawing 200 mA when fully active. Coil-to-contact isolation exceeds 1500V AC for safety. Channel-to-channel isolation prevents cross-talk between outputs. The 6ES5458-7LB11 suits mixed AC/DC load switching applications.
