ABB 3BSE007836R1 Voltage Transformer Unit

Technical Specifications and Primary Functions

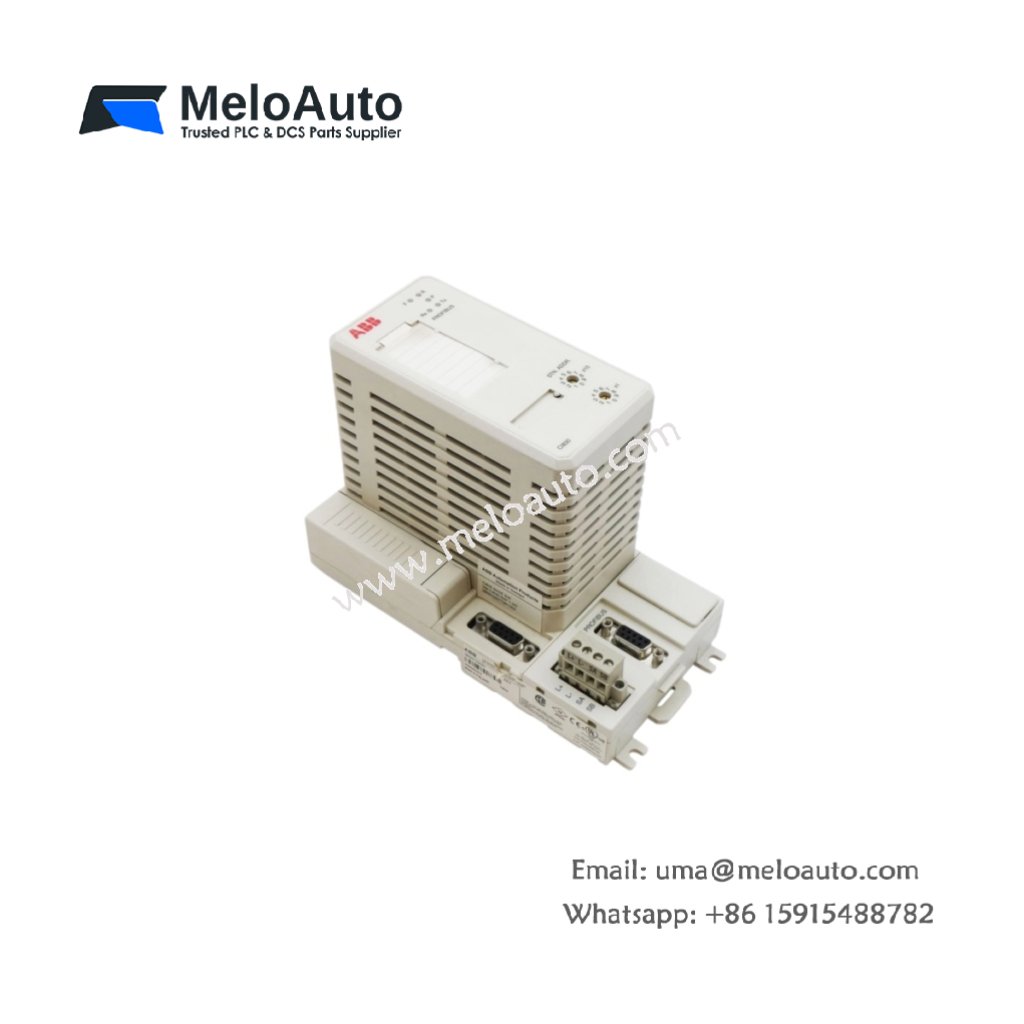

The ABB 3BSE007836R1 voltage transformer unit, also known as DSTYW121, belongs to the ABB Advant series and serves as a crucial interface between high-voltage power systems and control equipment . This module converts primary high-voltage signals into standardized low-voltage outputs for measurement, protection, and control applications . Its compact dimensions are 225 mm x 121.5 mm x 50 mm, and it weighs approximately 0.48 kg .

Functional Capabilities and Signal Conversion

The 3BSE007836R1 unit actively steps down high primary voltages to standardized secondary levels, enabling safe connection to PLCs and control systems . Its high-precision electromagnetic design ensures accurate voltage conversion with minimal phase shift and linearity error . The module provides galvanic isolation between primary and secondary circuits, protecting control equipment from high-voltage surges and transients . Furthermore, the unit supports both 50 Hz and 60 Hz power systems and offers dual secondary current ratings of 5 A or 1 A .

Application Scenarios
