ABB 07 NG 35 Power Supply Unit | 24V 3.5A for Advant Controllers

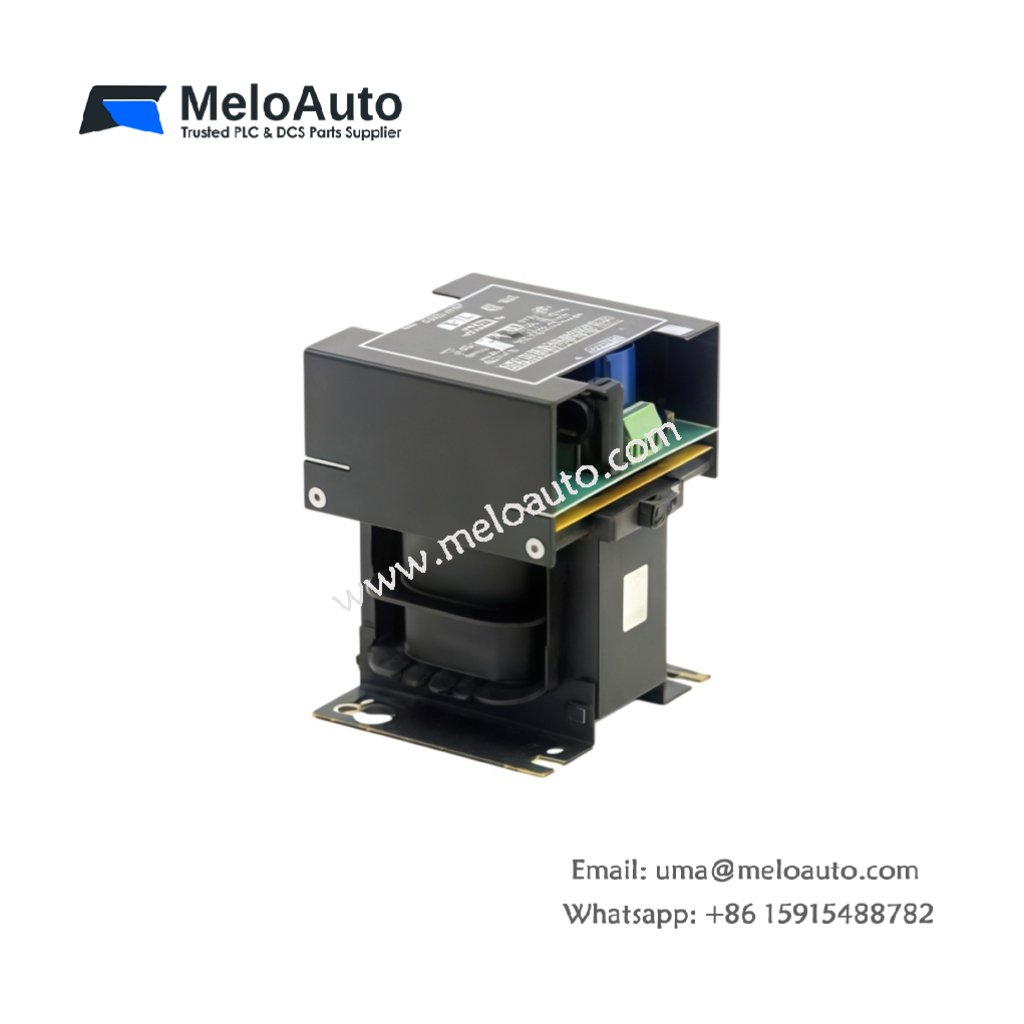

This unit provides stable DC power to ABB Advant PLC systems. The ABB 07 NG 35 converts AC line voltage into regulated 24 V DC output. It measures 180 mm in width and 130 mm in height. This unit weighs approximately 1.1 kg for DIN rail mounting.

Technical Specifications Table

Parameter	Value
Product Model	ABB 07 NG 35
Brand	ABB
Category	Power Supply Unit
Compatible Series	ABB Advant / S100 I/O
Input Voltage	100-240 V AC (autosensing)
Input Frequency	47-63 Hz
Output Voltage	24 V DC
Output Current	3.5 A
Output Power	84 W maximum
Dimensions (W x H x D)	180 mm x 130 mm x 100 mm
Weight	1.1 kg
Connector Type	1 x screw terminal block (input), 1 x screw terminal block (output)
Internal Components	1 x transformer, 1 x rectifier, 3 x filtering capacitors
Energy Storage	3 x 2200 µF electrolytic capacitors (total 6600 µF)
Hold-up Time	20 ms at full load
Efficiency	85% typical
Ripple	< 50 mV peak-to-peak
Protection Features	Short circuit, overload, overvoltage
LED Indicators	1 x green (output OK), 1 x red (fault)
Operating Temperature	-20°C to 60°C

Internal Design and Power Distribution

This power supply uses a switching converter design for high efficiency. A full-bridge rectifier converts AC to DC for the output rail. The ABB 07 NG 35 employs three filtering capacitors for energy storage. These capacitors provide 20 ms of hold-up time during short interruptions. The 24 V DC output powers I/O modules and field devices. Consequently, this unit delivers reliable power for Advant control systems.

Installation and Connection Guide

First, mount this power supply onto a standard 35 mm DIN rail securely. Next, connect your AC mains wires to the L, N, and PE input terminals. Then, wire your 24 V DC loads to the output terminals (+ and -). Use appropriate wire gauges for the 3.5 A output current. The module includes a green LED for output OK status. A red LED illuminates during fault conditions like overcurrent. This power supply works with ABB Advant controllers and S100 I/O systems. Always disconnect AC power before removing the module from the rail.
