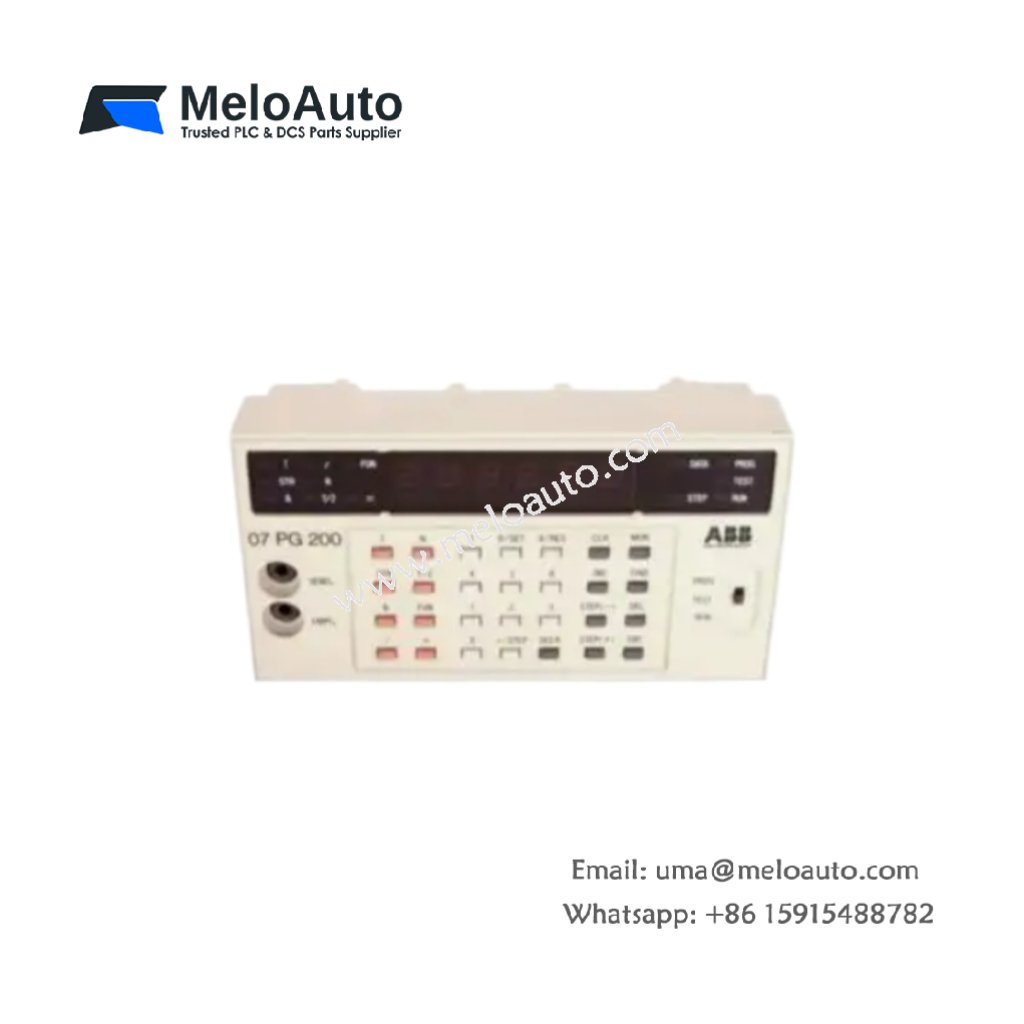

ABB 07 PG 200 R1 Programming Keypad

Technical Specifications and Physical Attributes

The ABB 07 PG 200 R1 programming keypad serves as a handheld programming and configuration interface for ABB Procontic K200 programmable logic controller systems . This device enables engineers to input programs, modify parameters, and monitor system status directly at the controller without requiring a separate computer terminal. The keypad features a robust membrane keypad with tactile feedback and a compact, ergonomic design suited for field use. Its dimensions are approximately 15.0 cm x 8.0 cm x 3.0 cm, and it weighs about 0.3 kg . The unit connects to the Procontic K200 CPU via a dedicated programming port . The alternative part reference is GJV3072408R1 .

Parameter	Specification
Manufacturer	ABB
Model Number	07 PG 200 R1
Alternative Reference	GJV3072408R1
Product Family	Procontic K200
Product Type	Programming Keypad
Weight	0.3 kg
Dimensions (approx.)	15.0 x 8.0 x 3.0 cm
Compatible Systems	Procontic K200 PLC series
Connection	Dedicated programming port
Keypad Type	Membrane with tactile feedback
Display	LCD (for program and status display)
Product Status	Legacy / Discontinued

Functional Capabilities and Programming Features

The 07 PG 200 R1 keypad actively supports on-site program entry, editing, and debugging for Procontic K200 systems. It allows users to navigate through program structures and monitor real-time data values. The keypad’s LCD screen displays program logic, variables, and system status information. Its membrane keypad offers resistance to dust and moisture, making it suitable for industrial environments. Furthermore, the keypad supports programming methods including instruction list, function block diagram, and ladder diagram . This device eliminates the need for a full programming terminal during routine maintenance and minor program adjustments.

Application Scenarios and Legacy Support

This programming keypad suits industrial facilities that continue to operate Procontic K200-based control systems. It serves as an essential tool for troubleshooting, program updates, and on-the-fly parameter changes. The ABB 07 PG 200 R1 also supports commissioning and system testing activities. Many facilities rely on this keypad to maintain their existing Procontic K200 automation infrastructure. For maintenance engineers, this handheld device offers a convenient solution for direct interaction with the PLC . Its portability makes it ideal for field service and rapid response to plant floor issues.
