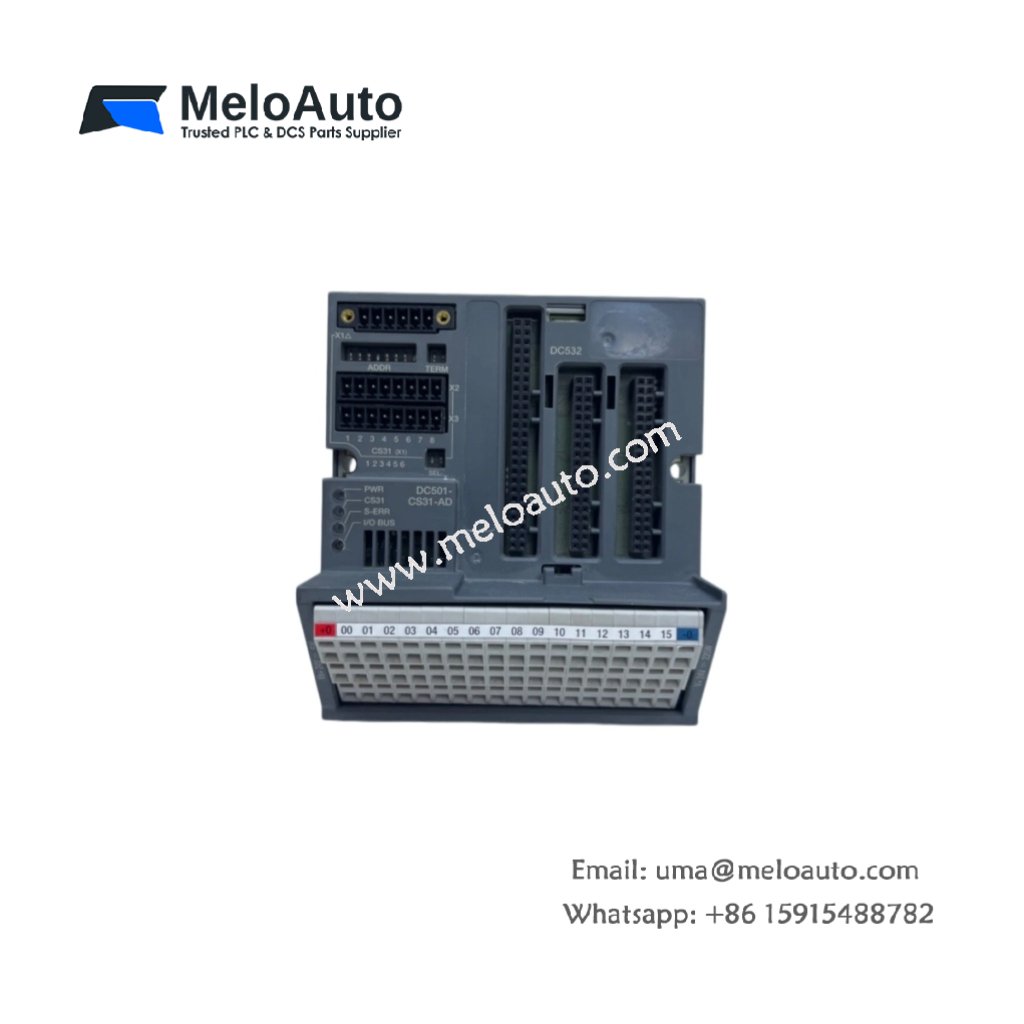

ABB 1SAP800400R0010 Digital Input/Output Control Module for AC500

The 1SAP800400R0010 combines discrete inputs and outputs in a single compact unit. This mixed module saves valuable space in your AC500 control cabinet. You can use it for small-scale machine control or pilot applications.

Key Technical Parameters

The table below lists all essential technical specifications for this digital I/O control module.

Physical Characteristics and Installation

This I/O module weighs approximately 0.22 kg for easy DIN rail mounting. Its dimensions measure 105 mm x 95 mm x 65 mm for standard AC500 footprint. First, clip the 1SAP800400R0010 onto a 35 mm DIN rail. Then, connect your sensors and actuators to the screw terminals. Finally, attach the module to the left-side bus connector. The front panel shows LED status for every input and output channel.

Input Specifications and Signal Detection

The 1SAP800400R0010 provides 8 digital input channels for field sensors. Each channel accepts 24V DC nominal signals from switches or proximity sensors. The input current measures only 5 mA per active channel. A 2 ms response time captures fast machine events reliably. Optocouplers isolate every input from the internal logic circuits.

Output Specifications and Protection Features

This module delivers 8 transistor outputs for driving small actuators. Each output supplies up to 0.5 A at 24V DC. Built-in short-circuit protection prevents damage during wiring faults. Overload protection shuts down the output automatically when necessary. The 1SAP800400R0010 responds to output commands in just 1 ms. Consequently, it suits high-speed pick-and-place or indexing applications.
