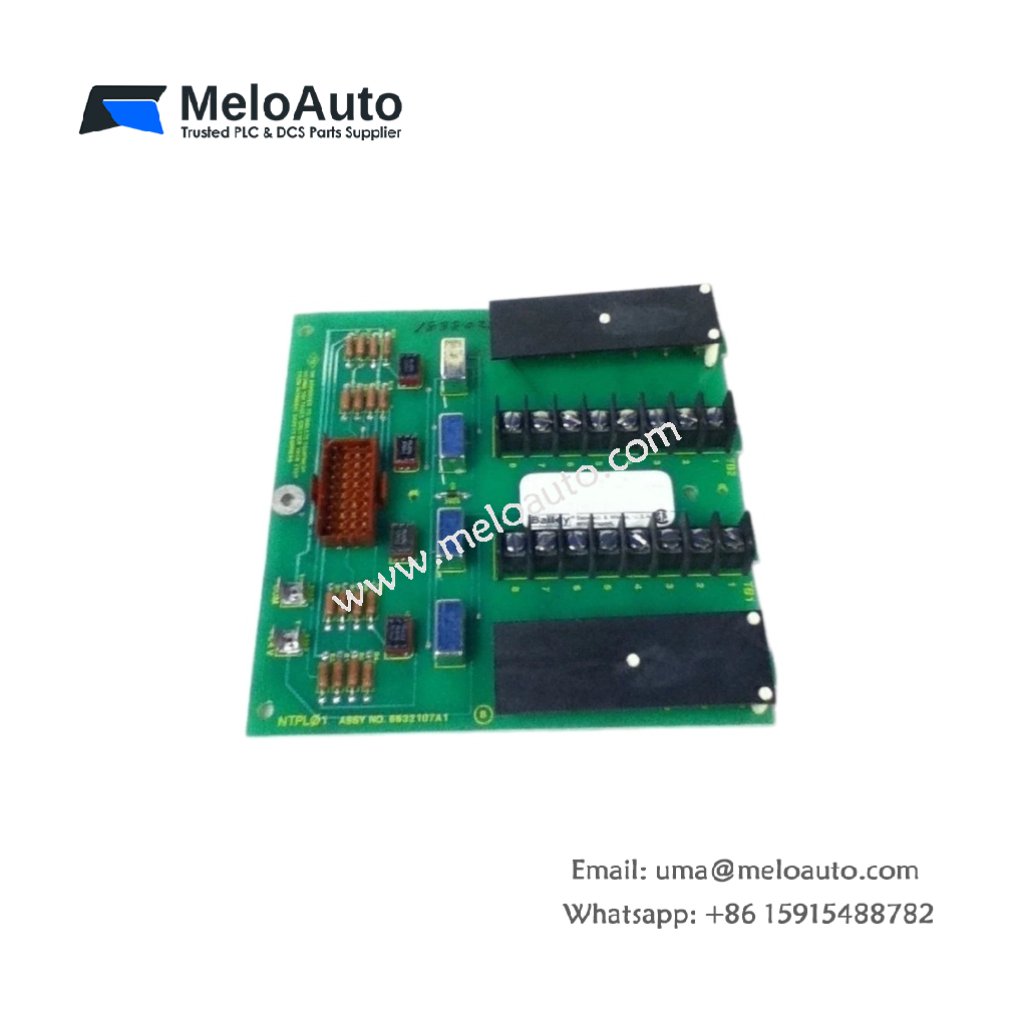

ABB Bailey NTPL01 Termination Module

This termination module provides screw terminal connections for ABB Bailey field wiring. You will find the ABB Bailey NTPL01 Termination Module simplifying cable termination between field devices and I/O cards. Its passive design eliminates active components for maximum reliability.

Technical Specifications

This module features forty screw terminal positions across two removable blocks. You can also locate two ribbon cable headers for connection to I/O modules. The ABB Bailey NTPL01 Termination Module stores no battery energy or any other charge whatsoever. Instead, it uses only passive copper traces for all signal routing. Therefore, this module never needs any form of routine maintenance.

Parameter	Specification
Full Product Name	ABB Bailey NTPL01 Termination Module
Series	INFI 90 / Bailey
Module Type	Field Termination Unit
Weight	0.52 kg
Length	26.0 cm
Width	10.5 cm
Terminal Positions	40
Terminal Blocks	2 (removable)
Cable Headers	2 x 50-pin ribbon
Wire Gauge	14-22 AWG
Operating Voltage	None (passive)
Energy Storage	None (complete passive)

Wiring Configuration Details

The ABB Bailey NTPL01 Termination Module requires no external power supply for its operation. You can wire field devices directly to the screw terminals using standard copper wire. Each terminal position includes a label for easy signal identification during installation. Moreover, the two removable terminal blocks allow quick disconnection without rewiring work. This design saves significant time during cabinet maintenance or module replacement.

Mechanical Integration and Mounting

You must mount the ABB Bailey NTPL01 Termination Module onto a standard DIN rail inside the cabinet. After positioning, secure the module using the integrated rail clip at the rear. The module measures exactly 26.0 centimeters in length and 10.5 centimeters in width. Its total weight reaches approximately 0.52 kilograms for straightforward handling. Furthermore, the module accepts two 50-pin ribbon cables to connect with upstream I/O cards.

Environmental and Storage Guidelines

You should store this ABB Bailey NTPL01 Termination Module in a clean dry location away from dust. The module operates reliably between 0°C and +60°C ambient temperature. Likewise, keep the unit away from conductive debris or excess vibration. Because the module contains no active components, it offers exceptional long-term reliability with zero power consumption.
