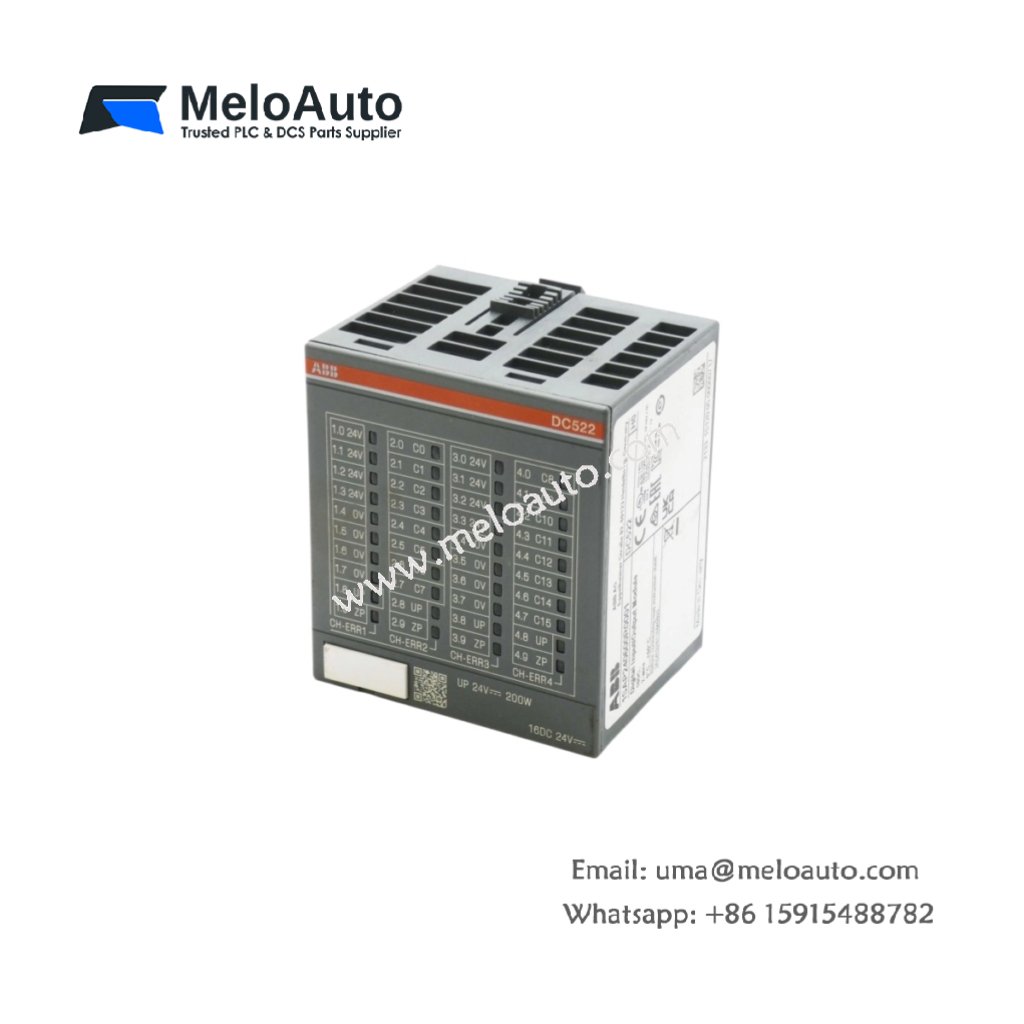

This digital I/O module expands the control capabilities of ABB AC500 PLC systems. It handles both signal acquisition and actuator driving from one compact unit. Therefore, this component reduces overall system cost and cabinet space.
Physical Dimensions and Weight Specifications
The ABB 1SAP240600R0001 features a slim housing for DIN rail mounting. Its width measures 56 mm for standard industrial enclosures. The total depth reaches 73 mm including the connector terminals. Consequently, technicians can install this module in tight spaces behind control panels.
| Parameter | Specification |
|---|---|
| Product Model | ABB 1SAP240600R0001 |
| Width | 56 mm |
| Height | 77 mm |
| Depth | 73 mm |
| Weight | 0.09 kg |
Interface Types and Connection Layout
The ABB 1SAP240600R0001 provides removable spring-clamp terminals for field wiring. A 10-pin connector links to the AC500 backplane for power and data. The front panel carries LED indicators for each input and output channel. Hence, operators can verify signal states without using a multimeter.
Component Count and Channel Configuration
This I/O module contains one main board with surface-mounted components. The board holds 4 digital input channels for 24V DC sensors. You will also find 4 digital output channels for actuator control. An onboard microcontroller handles bus communication and diagnostics.
| Technical Feature | Description |
|---|---|
| Digital Inputs | 4 x 24V DC, sink/source |
| Digital Outputs | 4 x 24V DC, 0.3A per channel |
| Input Current | 4 mA typical per channel |
| Output Type | High-side MOSFET |
| Wire Size | 0.2 to 1.5 mm² (AWG 24-16) |
Energy Storage and Power Consumption
The ABB 1SAP240600R0001 draws 35 mA from the 5V backplane supply. It requires an external 24V supply for field circuits and outputs. A small capacitor bank filters noise on the output power rail. This storage prevents false triggering from voltage dips or spikes.
Processing Speed and Diagnostic Features
The module updates input status every 0.5 ms for fast response. It includes channel-level short-circuit detection for each output. Users can read diagnostic data via the PLC bus system. This feature reduces troubleshooting time during system maintenance.
