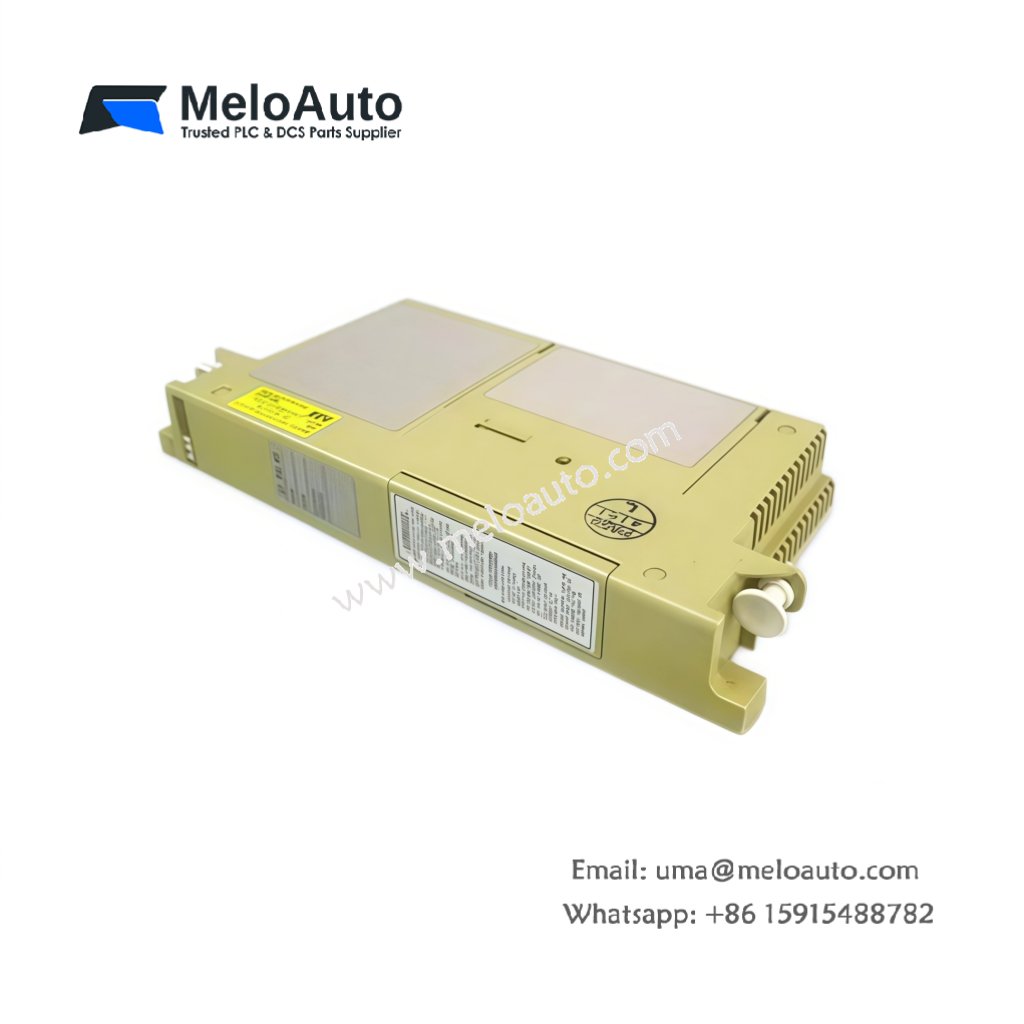

ABB 07 PS 61 R1 Memory Module

Technical Specifications and Module Design

This program memory module stores user applications for ABB Procontic CNC systems. The ABB 07 PS 61 R1 provides non-volatile storage for part programs and PLC logic. You can install this module into any standard Procontic rack slot position. Its compact design allows quick replacement during maintenance operations. The module weighs approximately 0.35 kilograms. Its dimensions measure 27 cm in height, 5 cm in width, and 21 cm in depth.

Parameter	Specification
Brand	ABB
Model	07 PS 61 R1
Category	Program Memory Module / EPROM Storage Card
Weight	0.35 kg
Height	27 cm
Width	5 cm (single slot)
Depth	21 cm
Memory Type	EPROM (Erasable Programmable Read-Only Memory)
Storage Capacity	64 KB
Part Program Storage	Approximately 32,000 blocks
PLC Program Storage	Approximately 2,000 ladder steps
Data Retention	Over 10 years without power
Number of Memory Chips	2 x 32 KB EPROMs
Erasure Method	UV light (through quartz window)
Access Time	200 nanoseconds
Interface Type	64-pin edge connector
Energy Storage	None (no battery required)
Component Count	2 EPROMs, 1 PCB, 1 plastic housing, 1 quartz window

EPROM Technology and Data Retention

The module uses UV-erasable EPROM technology for permanent program storage. A quartz window on top exposes the memory chips for erasure. You can erase the contents with 15 minutes of strong UV light exposure. The ABB 07 PS 61 R1 retains all data for over a decade without power. Consequently, you never need a backup battery for this memory module. The plastic housing protects the quartz window from accidental light exposure. A protective label covers the window during normal operation.

Compatibility and System Integration

You insert this memory module into any Procontic CPU or memory expansion slot. The 64-pin edge connector matches the standard Procontic memory interface perfectly. The CPU automatically loads program data from this module at power-up. You can also use the module as a permanent program backup device. The ABB 07 PS 61 R1 works with Procontic 07ZE and 07ZB central units. It cannot write data during normal CNC operation. Therefore, you need a separate EPROM programmer to burn new memory chips.

Installation and Handling Guidelines

You must ground yourself before handling this EPROM memory module. Static discharge will destroy the sensitive memory cells instantly. The quartz window requires protection from direct sunlight and fluorescent light. Ordinary room lighting will not affect the stored data significantly. You should cover the window with the provided label after programming. The module draws no power from the Procontic backplane during operation. It only supplies stored program data when the CPU requests it. The operating temperature ranges from 0°C to 55°C.
