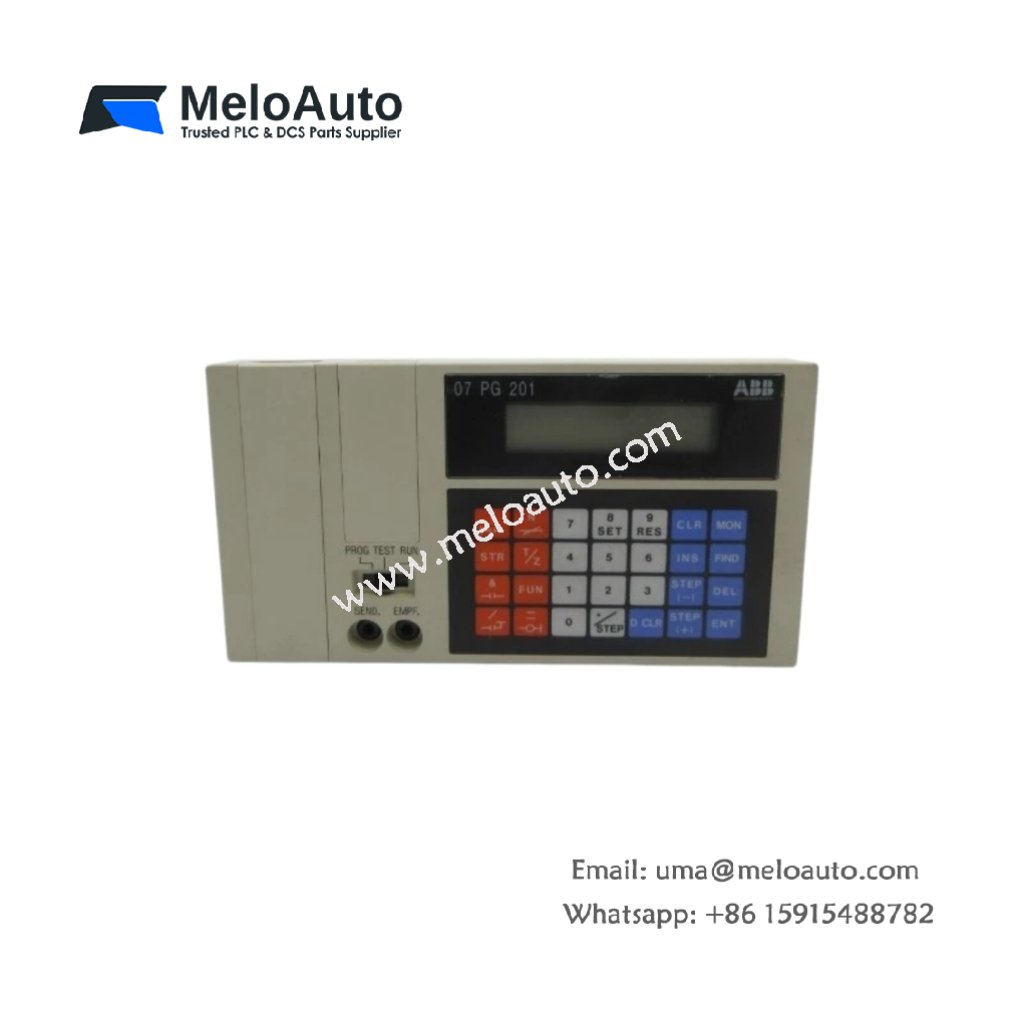

ABB 07 PG 201 Procontic K200 Programmer

The 07 PG 201 provides handheld programming for Procontic control systems. This device writes, edits, and debugs ladder logic programs. It connects directly to the CPU via a serial cable.

Key Technical Specifications

Parameter	Value
Display Type	LCD, 2 lines x 20 characters
Keypad	45 tactile membrane keys
Programming Language	Ladder diagram
Communication Interface	RS-232 (TTY compatible)
Cable Length	2.5 meters (included)
Supply Voltage	24V DC ±20%
Power Consumption	3 W typical
Device Dimensions	18.0 cm x 9.5 cm x 3.5 cm
Weight	0.55 kg (1.21 lbs)
Component Count	86 discrete components
Energy Storage	470 µF bulk capacitance
Operating Temperature	0°C to 50°C

Physical Dimensions and Construction

This programmer measures 18.0 cm in length and 9.5 cm in width. Its total thickness reaches 3.5 cm including the rubber bumpers. 07 PG 201 weighs 0.55 kg for comfortable handheld use. The rugged plastic housing resists drops and impacts.

Moreover, the device includes a wrist strap for secure handling. A foldable stand props the unit on a desk or table. The membrane keypad resists dust and moisture ingress.

Display and Programming Interface

The LCD shows two lines of text with 20 characters each. Backlighting allows easy reading in dim control rooms. Forty-five keys provide access to all programming functions. Dedicated function keys perform search, replace, and cross-reference operations.

Communication and Connection

A 9-pin D-sub connector links to the CPU’s TTY programming port. The included 2.5-meter cable reaches the controller comfortably. You can monitor program execution in real-time while connected. LED indicators show power status and communication activity.

Typical Application Scenarios

You can deploy 07 PG 201 in ABB Procontic systems for on-site programming. It also works well for troubleshooting and maintenance tasks. This programmer edits logic, forces I/O points, and displays register values. Its portability suits field service and commissioning work.
