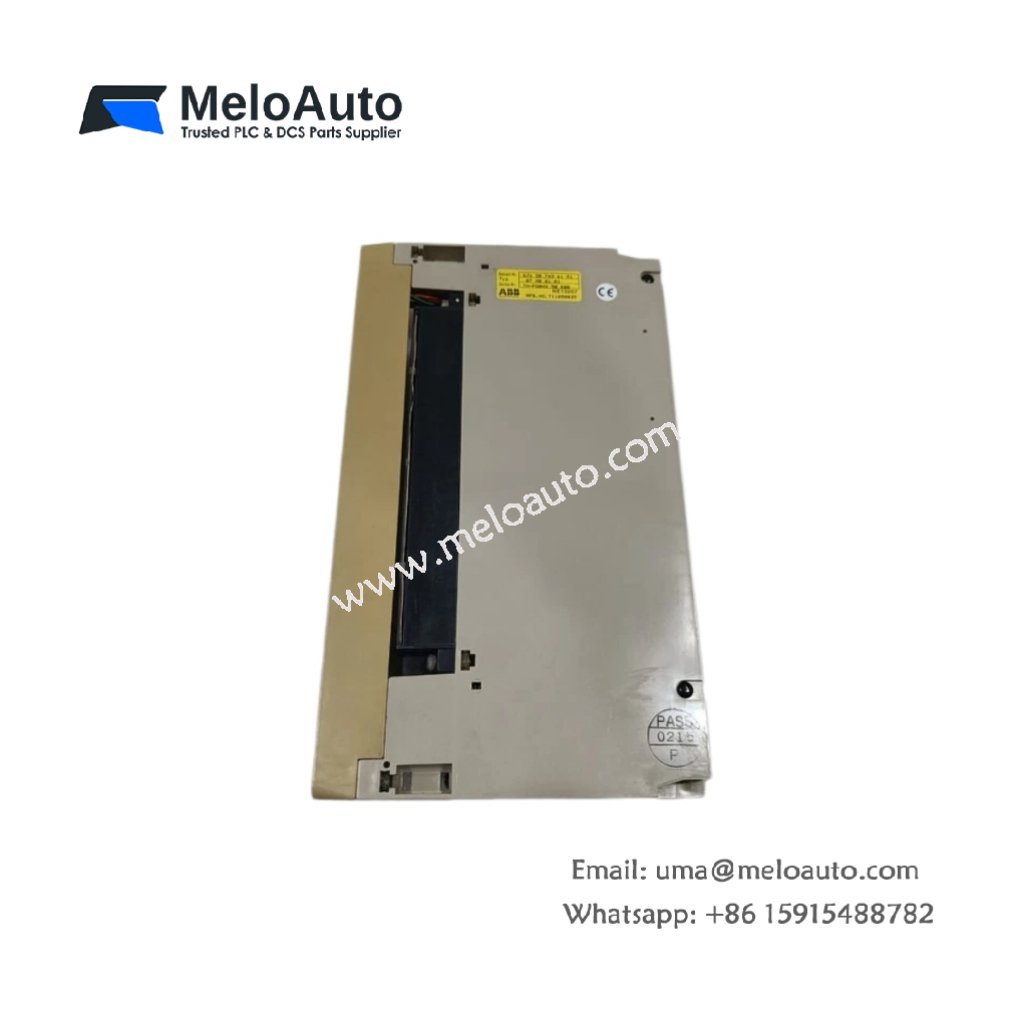

ABB 07 AB 61 R1 Digital Output Module

This digital output module drives actuators from ABB Procontic control systems. It provides 16 channels for controlling solenoids, contactors, and signal lamps. Therefore, this component suits factory automation and machine control applications.

Physical Dimensions and Weight Specifications

The ABB 07 AB 61 R1 occupies one standard slot in the Procontic rack. Its housing measures 250 mm in depth for backplane connectivity. The module weighs approximately 0.45 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The ABB 07 AB 61 R1 provides a 48-pin front connector for field wiring. A 20-pin backplane connector supplies power and data from the CPU. The front panel carries 16 green LED indicators for output status. Hence, operators can monitor all channels at a quick glance.

Component Count and Channel Configuration

This digital output module contains one main board with 16 transistor output channels. Each channel provides 0.5A continuous current at 24V DC. You will also find optocoupler isolation between the backplane and field side. An onboard serial-to-parallel converter reduces backplane pin count.

Energy Storage and Power Consumption

The ABB 07 AB 61 R1 draws 100 mA from the 5V backplane supply. It requires an external 24V supply for output load power. A small capacitor bank absorbs voltage spikes from inductive loads. This storage protects the transistors during solenoid switching events.

Output Performance and Diagnostic Features

The module updates all 16 outputs within a 1 ms cycle time. Each channel includes short-circuit detection with automatic shutdown. Users can read diagnostic status via the Procontic programming software. This feature reduces downtime during field wiring faults.
