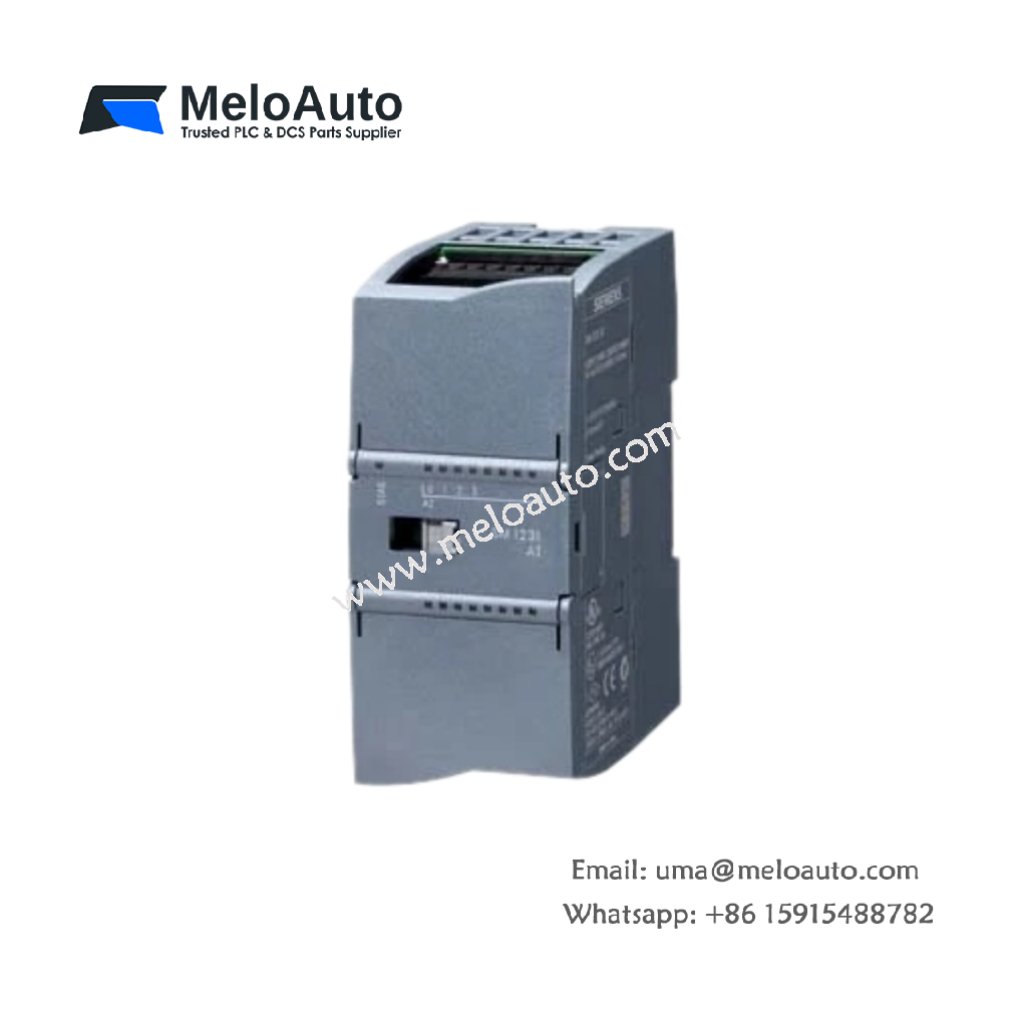

Siemens 6ES7231-5QF32-0XB0 Analog Input Module

Product Overview

The Siemens 6ES7231-5QF32-0XB0 analog input module captures four differential analog signals from field sensors and transmitters. This module accepts both voltage and current inputs for maximum application flexibility. It integrates seamlessly with the SIMATIC S7-1200 controller series. The unit features high-resolution analog-to-digital conversion for precise signal measurement.

Technical Specifications

Parameter	Specification
Model Number	6ES7231-5QF32-0XB0
Product Type	Analog Input Module
Brand	Siemens
Category	PLC Analog Input Modules
Number of Inputs	4 differential channels
Signal Types	0-10V, ±10V, 0-20mA, 4-20mA
Resolution	16-bit
Conversion Time	Approx. 1 ms per channel
Power Supply	24V DC (from backplane)
Weight	Approximately 0.14 kg
Dimensions	65 mm x 72 mm x 40 mm (L x W x H)
Operating Temperature	-25°C to 60°C
Protection Class	IP20

Key Features and Benefits

Multi-Signal Capability
The 6ES7231-5QF32-0XB0 handles both voltage and current inputs without additional signal conditioning. This versatility eliminates the need for external conversion devices. Users can connect various sensor types directly to the module.

High Precision Measurement
This input module offers 16-bit resolution for accurate signal representation. It ensures reliable process variable monitoring. This precision improves overall system control quality.

Fast Conversion Performance
The module completes signal conversion in approximately 1 ms per channel. This speed supports time-critical control applications. Operators benefit from responsive and accurate process data.

Application and Use Cases

The Siemens 6ES7231-5QF32-0XB0 suits temperature monitoring, pressure sensing, and flow measurement applications. It also serves level detection and force measurement in industrial processes. Maintenance engineers will find this module a dependable replacement for failed analog input units.
