Product Overview

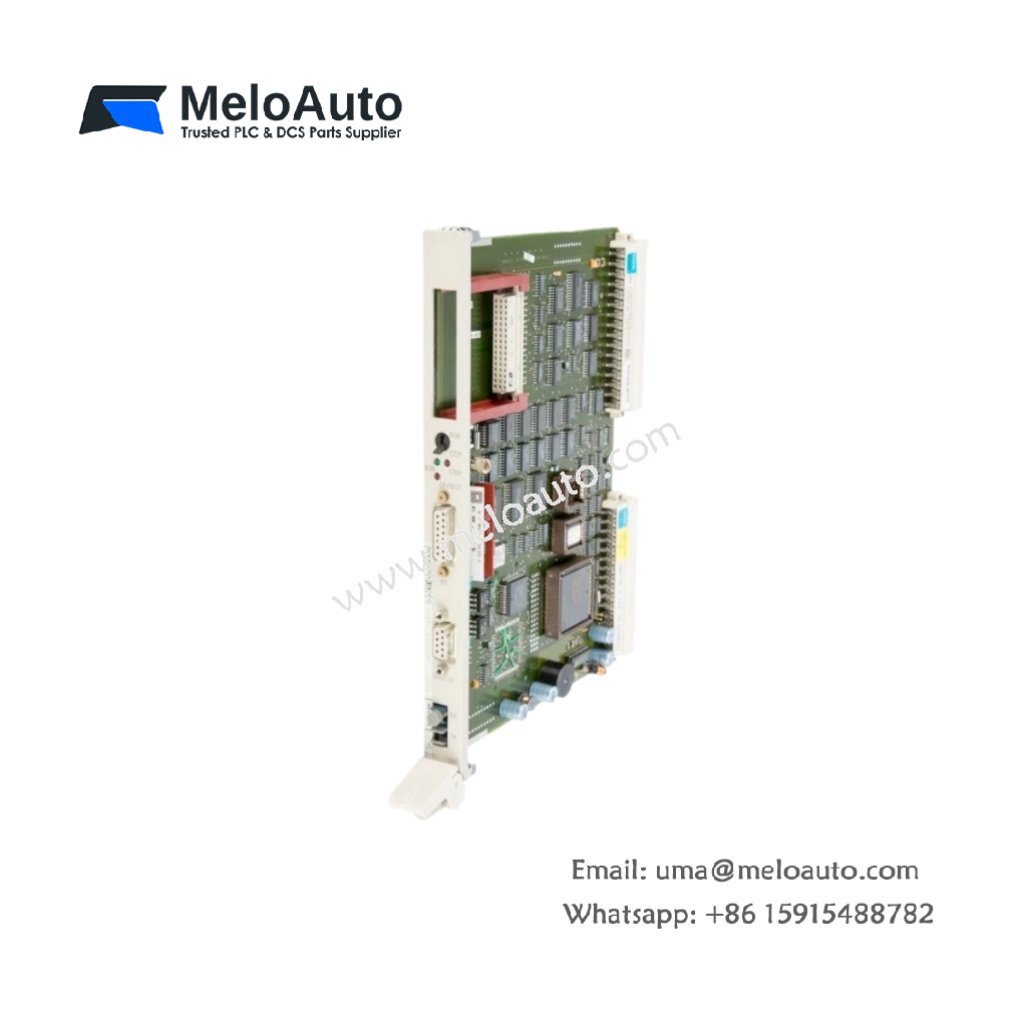

The Siemens 6GK1543-1AA00 communications processor connects SIMATIC S5 programmable controllers to Ethernet-based industrial networks. This module enables seamless data exchange between automation systems and higher-level enterprise networks. It plugs directly into the S5 rack. The processor supports widely used TCP/IP protocols for standard network communications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 6GK1543-1AA00 |
| Product Type | Communications Processor |
| Brand | Siemens |
| Category | PLC Communication Modules |
| Compatibility | SIMATIC S5 Series |
| Network Interface | Ethernet (10/100 Mbps) |
| Protocols Supported | TCP/IP, ISO |
| Maximum Data Transfer Rate | 100 Mbps |
| Number of Interfaces | 1x RJ45 |
| Weight | Approximately 0.35 kg |
| Dimensions | 233 mm x 25 mm x 158 mm (H x W x D) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
Key Features and Benefits
Efficient Network Integration
The 6GK1543-1AA00 enables reliable communication between S5 controllers and modern Ethernet networks. It supports both TCP/IP and ISO protocols for maximum flexibility. This compatibility ensures seamless integration with existing plant infrastructure.
High-Speed Data Transfer
This communications processor delivers transfer rates up to 100 Mbps for efficient data handling. It supports both 10 and 100 Mbps network speeds. This flexibility accommodates various network configurations and requirements.
Robust Industrial Design
The module features a rugged construction suitable for demanding factory environments. It operates reliably across a wide temperature range from 0°C to 60°C. This durability ensures consistent network connectivity under harsh conditions.
Application and Use Cases
The Siemens 6GK1543-1AA00 serves as a gateway between S5 PLCs and supervisory control systems. It also enables remote monitoring and diagnostics via Ethernet networks. Maintenance teams will find this module essential for modernizing legacy S5 systems.
