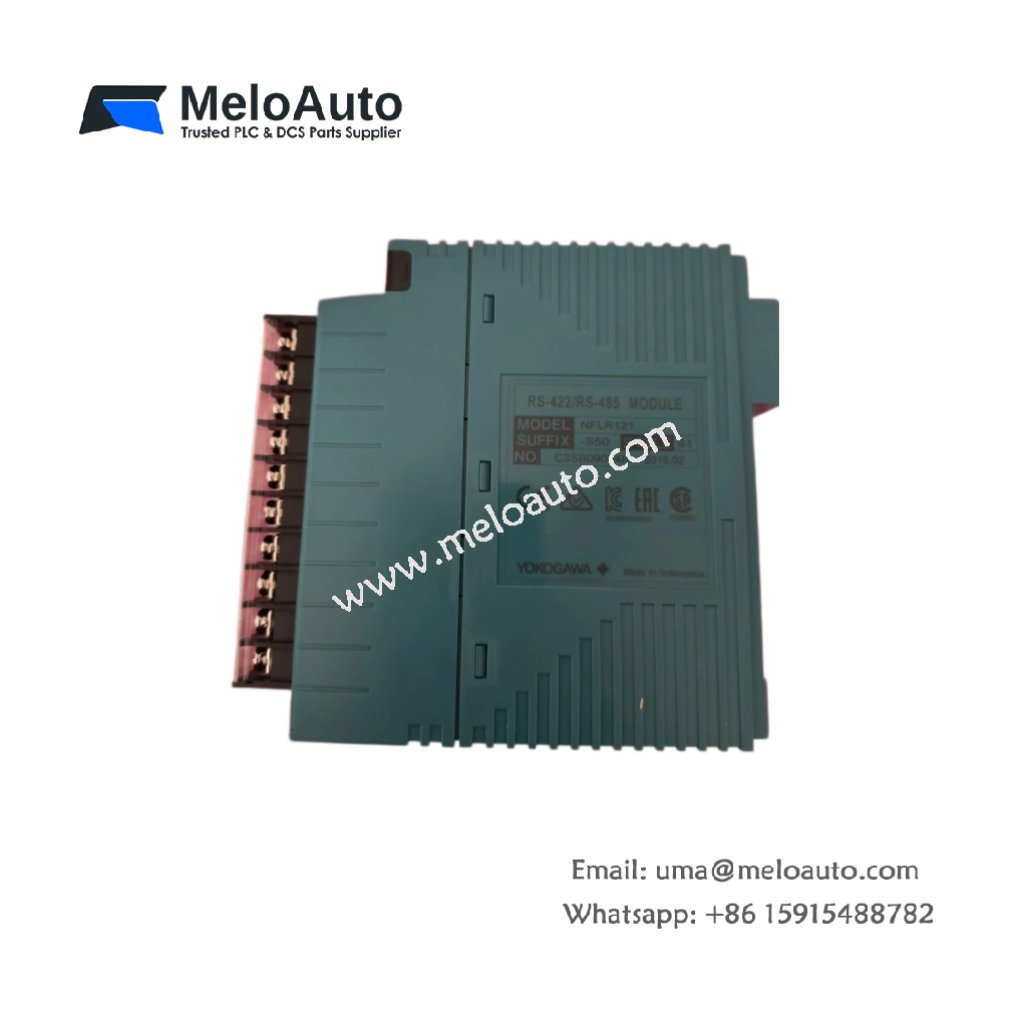

Yokogawa RS-422/RS-485 Communication Modules

The Yokogawa RS-422/RS-485 communication modules provide reliable, high-performance data transmission solutions for industrial automation systems. Designed for use in demanding environments, these modules support both RS-422 and RS-485 communication standards, ensuring compatibility with a wide range of industrial equipment. They deliver robust and efficient data exchange, helping to maintain seamless communication across various devices within your automation setup.

Key Features of the Yokogawa RS-422/RS-485 Communication Modules

Dual Communication Standards: The Yokogawa RS-422/RS-485 modules support both RS-422 and RS-485 protocols, offering versatility for different industrial applications.
Long-Distance Communication: These modules provide stable communication over long distances, supporting data transmission up to 4000 feet (1200 meters) without degradation.
High-Speed Data Transfer: Capable of high-speed data transfer rates, the modules ensure fast and reliable communication in real-time control systems.
Robust Design: Built to withstand harsh industrial environments, these communication modules offer durability and reliable operation, even in challenging conditions.
Easy Integration: The modules feature simple integration with existing automation networks, ensuring minimal downtime and hassle-free setup.

Technical Specifications

Specification	Value
Communication Standards	RS-422, RS-485
Data Transfer Rate	Up to 10 Mbps
Transmission Distance	Up to 4000 feet (1200 meters)
Operating Temperature	-40°C to +85°C
Power Supply	5V DC or 24V DC (depending on model)
Dimensions	100 mm x 70 mm x 30 mm
Weight	Approximately 200 grams
Connector Type	Screw terminal or plug-in terminal
Data Protocols Supported	Modbus, Profibus, DNP3
Certifications	CE, UL, RoHS compliant

Applications of the Yokogawa RS-422/RS-485 Communication Modules

The Yokogawa RS-422/RS-485 communication modules are ideal for a wide range of industrial applications, including:

Factory Automation: Used in industrial automation systems to establish communication between controllers, sensors, and actuators across factory floors.
Process Control: Essential for process control systems, providing reliable communication for monitoring and controlling industrial processes.
Energy Management: Used in energy management systems to ensure stable data exchange between energy meters, controllers, and monitoring units.
Remote Monitoring: These modules are perfect for remote monitoring applications, offering reliable data transfer over long distances to central control units.

Why Choose the Yokogawa RS-422/RS-485 Communication Modules?

The Yokogawa RS-422/RS-485 communication modules offer a cost-effective and efficient solution for ensuring reliable data exchange within your automation systems. With dual protocol support, long-distance communication capabilities, and easy integration, they are the perfect choice for industrial environments where uninterrupted data flow is essential.
