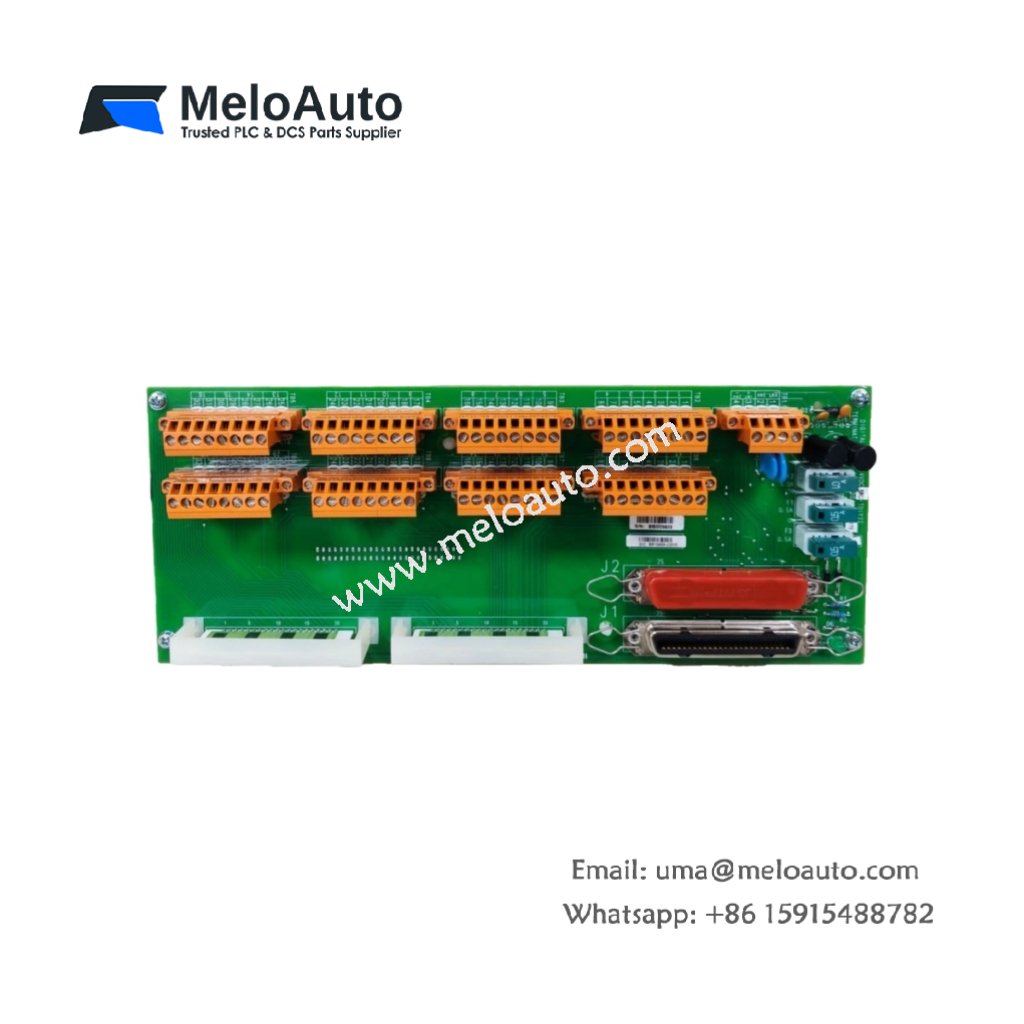

Honeywell MC-TAIH22 High-Level Analog Input Module

Overview

The Honeywell MC-TAIH22 is a high-level analog input module designed for integration with the TotalPlant Solution (TPS) distributed control system (DCS). This module efficiently interfaces various analog input signals from devices like temperature sensors, pressure sensors, and flow sensors, ensuring seamless data communication within industrial control systems. With high-resolution input channels, the MC-TAIH22 offers accurate and reliable signal conversion, making it an essential component for advanced industrial automation and process control applications.

Key Features

High-Level Analog Input Channels: 16 input channels for versatile signal processing.
Input Ranges: Supports 0-10V, 0-20V, and 4-20mA input ranges, making it compatible with a wide range of sensors.
16-bit Resolution: Delivers high-precision signal conversion for accurate data measurement.
Accuracy: ±0.0596% of full scale, ensuring reliable and precise input readings.
Scan Rate: 100ms scan rate for fast, real-time data updates.
Channel Isolation: Provides isolation between channels, reducing interference and enhancing signal integrity.
Hot-Swappable: Easily replaceable without shutting down the system, minimizing downtime.

Applications

The Honeywell MC-TAIH22 is ideal for a variety of industrial sectors, including:

Industrial Automation: Perfect for interfacing sensors and controlling automated systems.
Process Control: Supports critical applications where accurate data acquisition is essential.
Power Generation: Monitors and controls power systems with high reliability.
Oil and Gas: Used in harsh environments for reliable data collection from field instruments.
Chemical Processing: Ensures precise monitoring of chemical process parameters.
Food and Beverage Processing: Ideal for monitoring environmental and process variables in food production.
Pharmaceutical Manufacturing: Ensures compliance with strict regulatory standards by providing precise control.

Technical Specifications

Specification	Value
Model	Honeywell MC-TAIH22
Type	High-Level Analog Input Module
Input Channels	16
Input Range	0-10V, 0-20V, 4-20mA
Resolution	16-bit
Accuracy	±0.0596% of full scale
Scan Rate	100ms
Isolation Between Channels	Yes
Hot-Swappable	Yes

Additional Features

Power Supply: Operates with a 24 VDC supply for efficient power usage.
Compression Terminals: Secure, easy-to-use terminal connections for reliable signal transfer.
STI (System Termination Interface): Integrated interface for seamless connectivity and installation.
Enhanced Power Capability: Designed to support demanding industrial applications, making it suitable for various high-load systems.
CE Mark: Complies with European safety standards, ensuring high-quality manufacturing and reliability.

Mounting and Installation

Cabinet Requirement: The module must be installed in a standard Rittal cabinet according to Honeywell’s specifications.
Installation: Use only Honeywell/Rittal mounting hardware and follow detailed installation instructions for optimal performance.

Dimensions and Weight

Dimensions: 2 cm x 2.7 cm x 3.0 cm (approx.)
Weight: 0.8 kg (approx.)

Why Choose the Honeywell MC-TAIH22?

The Honeywell MC-TAIH22 offers high-precision analog input capabilities with the flexibility to handle a wide range of sensor inputs. Its high resolution, accuracy, and quick scan rate make it ideal for time-sensitive industrial applications. With robust features such as channel isolation, hot-swapping, and enhanced power capabilities, it is built to perform in demanding environments. Whether you’re monitoring critical processes in power generation, oil and gas, or manufacturing, the MC-TAIH22 ensures seamless integration and reliable operation.
