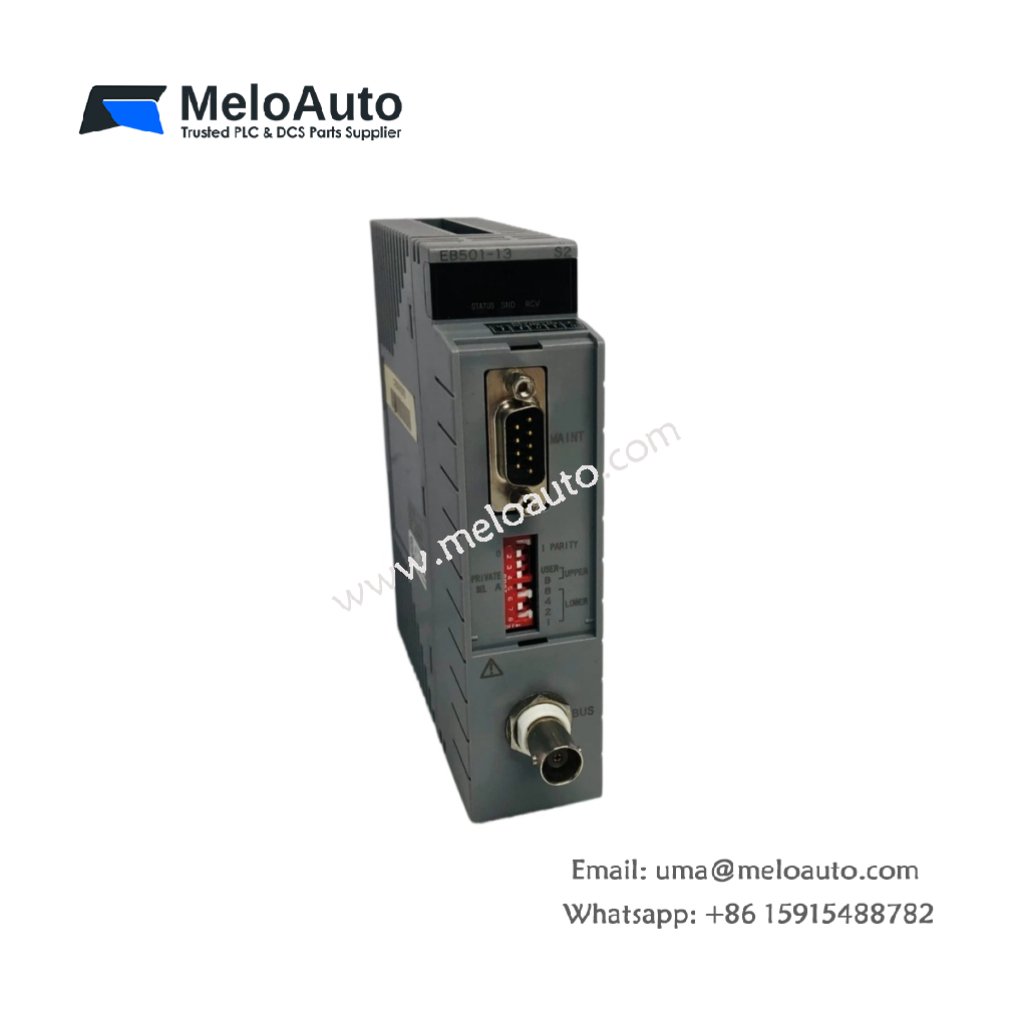

Yokogawa EB501-13 Bus Interface Slave Module

The Yokogawa EB501-13 Bus Interface Slave Module is a high-performance interface module designed to ensure reliable data communication between field devices and the control system. As a bus interface slave module, it integrates seamlessly into industrial control systems, providing smooth communication and enhancing system reliability.

Key Features of the Yokogawa EB501-13 Bus Interface Slave Module

The Yokogawa EB501-13 is engineered to handle the demanding data transfer requirements of modern automation systems. Below are the essential technical specifications and features of this module:

Technical Specifications:

Specification	Details
Model	Yokogawa EB501-13
Product Type	Bus Interface Slave Module
Interface Type	Fieldbus or other compatible communication protocols
Number of Communication Channels	8 channels
Data Transfer Rate	1 Mbps
Power Supply	24 V DC ± 10%
Power Consumption	5 W
Mounting Type	DIN Rail
Dimensions	120 mm x 100 mm x 40 mm
Weight	0.35 kg
Operating Temperature	-10°C to +60°C
Protection Rating	IP20
Communication Protocol	Modbus RTU, Profibus, Yokogawa proprietary protocol
Signal Isolation	Yes (Channel-to-Channel Isolation)

Advantages of the Yokogawa EB501-13 Bus Interface Slave Module

Reliable Data Communication: The Yokogawa EB501-13 ensures stable communication between the field devices and the control system, supporting protocols like Modbus RTU and Profibus.
Multiple Communication Channels: It offers 8 communication channels, allowing for simultaneous data transfer from multiple devices, increasing system efficiency.
Fast Data Transfer Rate: With a data transfer rate of up to 1 Mbps, the Yokogawa EB501-13 ensures fast and efficient data communication for real-time applications.
Compact and Lightweight Design: At 120 mm x 100 mm x 40 mm and weighing only 0.35 kg, this module is easy to install and integrate into various automation systems without requiring much space.
Flexible Power Supply Options: The Yokogawa EB501-13 operates on a 24 V DC supply with a minimal power consumption of just 5 W, making it energy-efficient and cost-effective.

Applications of the Yokogawa EB501-13 Bus Interface Slave Module

The Yokogawa EB501-13 is ideal for a variety of industrial automation applications, such as:

Factory Automation: The module facilitates smooth and efficient communication between devices, enhancing automation in manufacturing processes and improving overall productivity.
Process Control Systems: By supporting multiple communication protocols, the Yokogawa EB501-13 ensures seamless integration with control systems in industries like chemicals, oil & gas, and pharmaceuticals.
Energy Monitoring: In energy management systems, the Yokogawa EB501-13 enables accurate data transfer for monitoring power consumption and optimizing energy use.

Conclusion

In conclusion, the Yokogawa EB501-13 Bus Interface Slave Module is an efficient and reliable solution for data communication in industrial control systems. With its compact design, multiple communication channels, and fast data transfer rate, it ensures high performance and system reliability in a wide range of applications.
