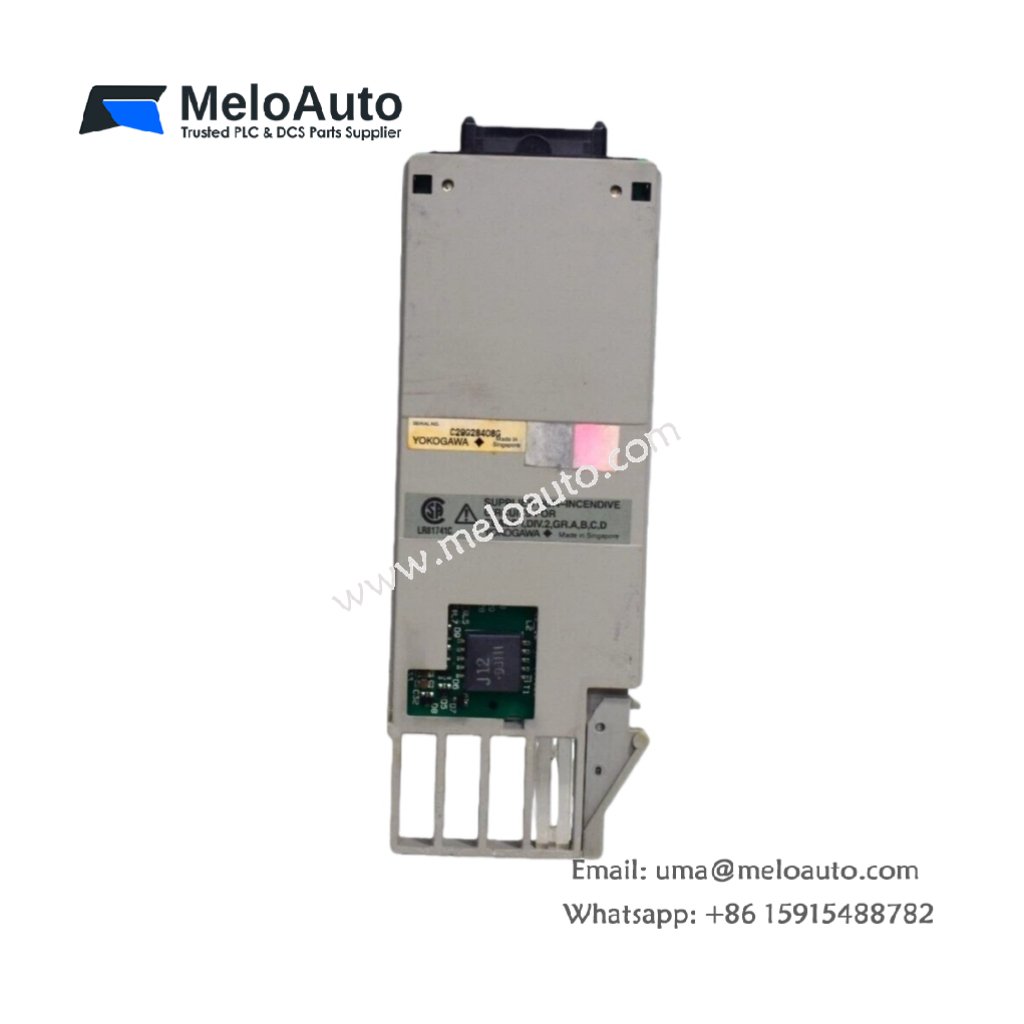

Yokogawa APM11 Pulse Input Module for Flow Measurement

Overview

The Yokogawa APM11 is an advanced pulse input module, designed for high-precision flow measurement in industrial process control systems. It processes pulse signals from flowmeters and other pulse-generating devices with exceptional speed and accuracy. This module is ideal for industries such as oil and gas, chemical processing, power generation, and water treatment. With its durable design and seamless integration into control systems, the ensures consistent and reliable performance.

Key Features

Efficient Pulse Signal Processing: The handles pulse signals from flowmeters, providing high-speed counting capabilities for accurate flow measurements.
Customizable Counting Frequency: You can adjust the counting frequency based on your specific application, making it highly adaptable for various industrial settings.
Reliable Communication Protocols: The APM11 supports both BRAIN and HART communication protocols, ensuring easy integration into existing systems.
Multiple Output Signals: The module offers 4-20mA analog output, pulse output, and communication signals, providing flexibility in data transmission.
Versatile Mounting Options: Install the APM11 on a DIN rail or directly onto a panel for easy integration into control systems.
Wide Operating Temperature Range: The APM11 operates effectively within a range of -20°C to +55°C, ensuring reliability in various industrial environments.

Technical Specifications

Parameter	Specification
Model Number	APM11
Type	Pulse Input Module
Input Signal	Pulse signal from flowmeters or pulse devices
Counting Frequency	Configurable based on application needs
Output Signals	4-20mA analog, pulse output, communication
Communication Protocols	BRAIN, HART
Power Supply	Varies by model
Operating Temperature	-20°C to +55°C
Dimensions	3.0″ x 0.0″ x 7.0″ (7.6 cm x 0.0 cm x 17.8 cm)
Weight	0.1 kg (4.0 oz)
Mounting Options	DIN rail or panel mount

Applications

The Yokogawa APM11 is ideal for industries requiring precise flow measurement and signal processing. Its versatility makes it suitable for:

Oil and gas
Chemical processing
Power generation
Water treatment

Thanks to its accurate pulse signal handling and wide range of output options, the APM11 supports critical process control in demanding environments.

Conclusion

To conclude, the Yokogawa APM11 pulse input module provides a highly efficient solution for flow measurement and process control. It delivers flexible integration with BRAIN and HART protocols and offers robust performance in industrial environments. This makes the APM11 an essential component for maintaining efficiency and accuracy in various applications.
