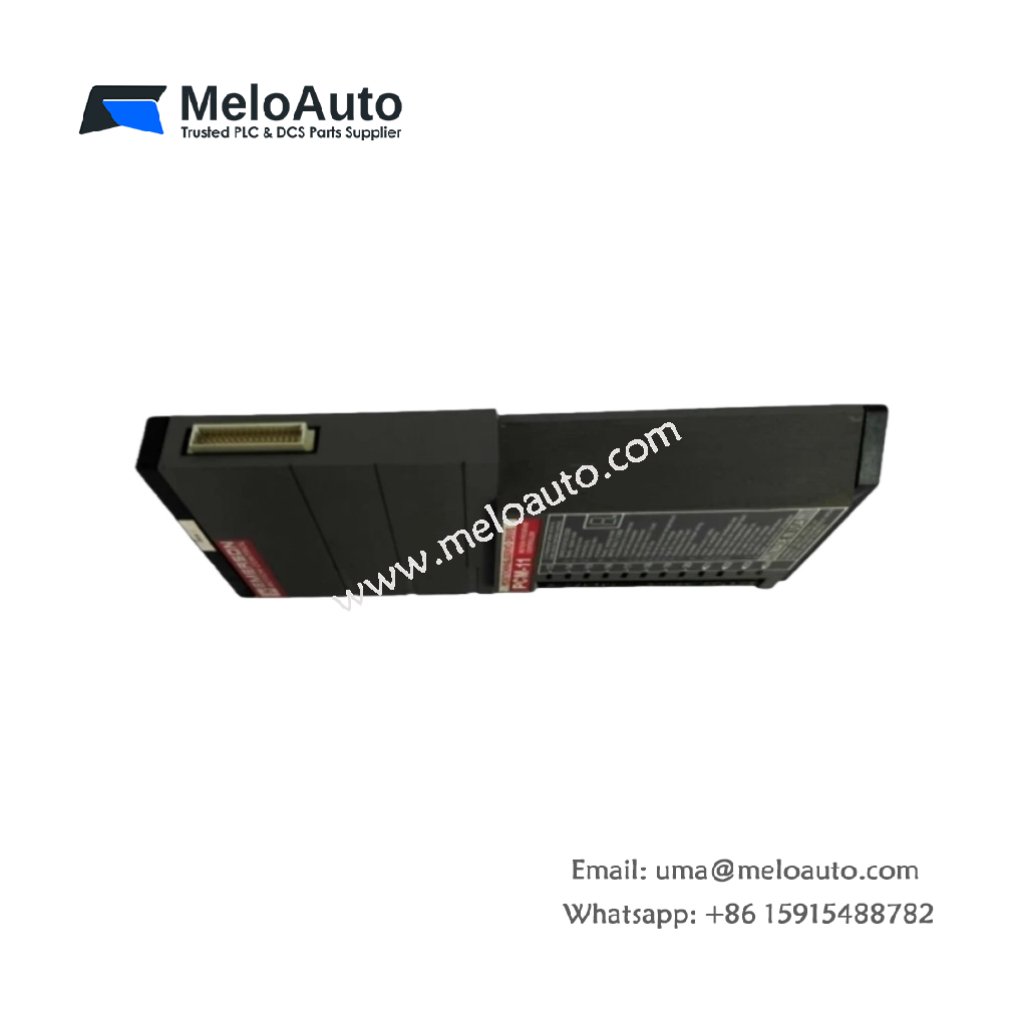

Emerson PCM-11 Motion Program Controller

Overview

The Emerson PCM-11 is a versatile and robust motion program controller designed to extend the I/O capabilities of FX Amplifiers. It attaches easily to the front of any FX Amplifier and enhances the system’s control features. This module supports a wide range of industrial applications, offering reliable performance with clear, easy-to-use connections. The PCM-11 integrates seamlessly with existing systems, providing a significant increase in input and output functionality.

Key Features

• Input and Output Lines
  The Emerson PCM-11 is equipped with 8 input lines and 4 output lines, doubling the I/O capacity compared to the standard FX drive. It supports both current sinking and current sourcing for flexibility in various applications.
• Optical Isolation
  All input and output lines are optically isolated, ensuring safe and efficient operation with voltage ranges of +10.5 to +30 VDC.
• Secure, Easy Connections
  The controller connects to the FX Amplifier via 48-pin connectors, and all electrical connections (except for I/O) are made through this secure interface. Each I/O line comes with 2 screw terminals for easy installation and versatile wiring.
• High Output Capacity
  The 4 output lines can handle up to 200 mA of current each, providing substantial power handling for various devices while maintaining optimal safety.
• Durable and Easy to Attach
  The PCM-11 attaches easily to the front of the FX Amplifier using two locking arms, ensuring a secure and firm connection.

Technical Specifications

Applications

The Emerson PCM-11 is ideal for use in a wide variety of industrial motion control systems. Its features make it suitable for applications requiring high precision, increased I/O capacity, and flexibility. Common uses include:

• Automation Systems: Extends I/O capacity for automated systems, enabling better control and monitoring.
• Industrial Equipment: Ideal for enhancing industrial equipment with robust input/output operations.
• Motion Control: Provides high-performance control in motion systems, allowing seamless integration with FX Amplifiers.

Why Choose the Emerson PCM-11?

• Enhanced I/O Capability
  With 8 inputs and 4 outputs, this module offers enhanced control options, helping you adapt to complex system requirements.
• Easy Integration
  The simple connection design, with secure 48-pin connectors and screw terminals, allows for easy setup and fast installation.
• Safe and Reliable Operation
  Optical isolation and secure output handling make the PCM-11 a highly reliable solution for industrial environments, reducing the risk of electrical interference.
