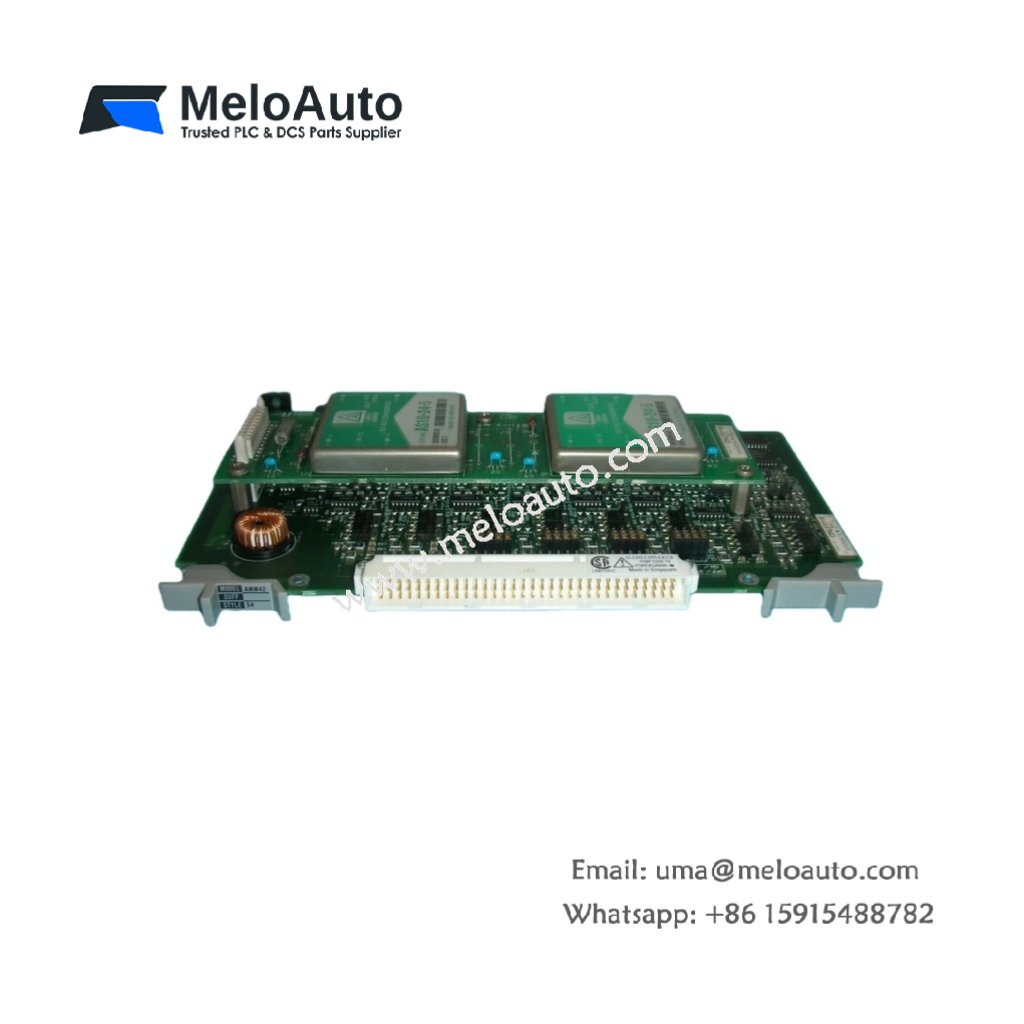

Yokogawa AMM42 S3 High-Voltage Analog Multiplexer

Overview

The Yokogawa AMM42 S3 is a high-performance, dual-input, single-output analog multiplexer module, designed for demanding high-voltage applications. With a maximum input voltage of +200V and a high switching frequency of 12 MHz, this module is ideal for industries that require precise signal switching in motor control, power conversion, and industrial control systems. Its robust design ensures reliable operation even in challenging environments.

The AMM42 S3 delivers low on-resistance and low power consumption, optimizing system performance. Its wide operating temperature range further enhances its suitability for various industrial applications. This module is housed in a compact 16-pin SOIC package, ensuring easy integration into space-constrained environments.

Key Features

Dual Input, Single Output: Offers flexibility with dual inputs, providing a single output for efficient signal processing.
High Voltage Capability: With an input voltage of +200V, it supports high-voltage environments like motor control and power conversion.
High Switching Frequency: Achieves up to 12 MHz switching frequency, allowing fast data processing for real-time applications.
Low On-Resistance: Ensures minimal signal loss and high integrity during operation.
Low Power Consumption: Efficient design minimizes energy usage, contributing to overall system efficiency.
Wide Operating Temperature Range: Performs reliably in temperatures ranging from -40°C to +85°C, ideal for industrial settings.

Technical Specifications

Specification	Details
Model	AMM42 S3
Type	High-voltage Analog Multiplexer Module
Input Voltage	+200V
Maximum Switching Frequency	12 MHz
Package	16-pin SOIC
Dual Inputs	Yes, dual input with single output
On-Resistance	Low
Power Consumption	Low
Operating Temperature Range	-40°C to +85°C
Applications	Motor control, power conversion, industrial control systems, test equipment, medical equipment

Applications

The Yokogawa AMM42 S3 is suitable for a wide range of applications, including:

Motor Control: Provides precise signal switching for controlling motors in industrial automation.
Power Conversion: Ideal for applications involving high-voltage power conversion systems.
Industrial Control Systems: Integrates seamlessly into control systems requiring efficient and reliable signal switching.
Test and Measurement Equipment: Used in testing high-voltage components where accurate switching is crucial.
Medical Equipment: Ensures high-voltage signal processing for medical devices operating in controlled environments.
