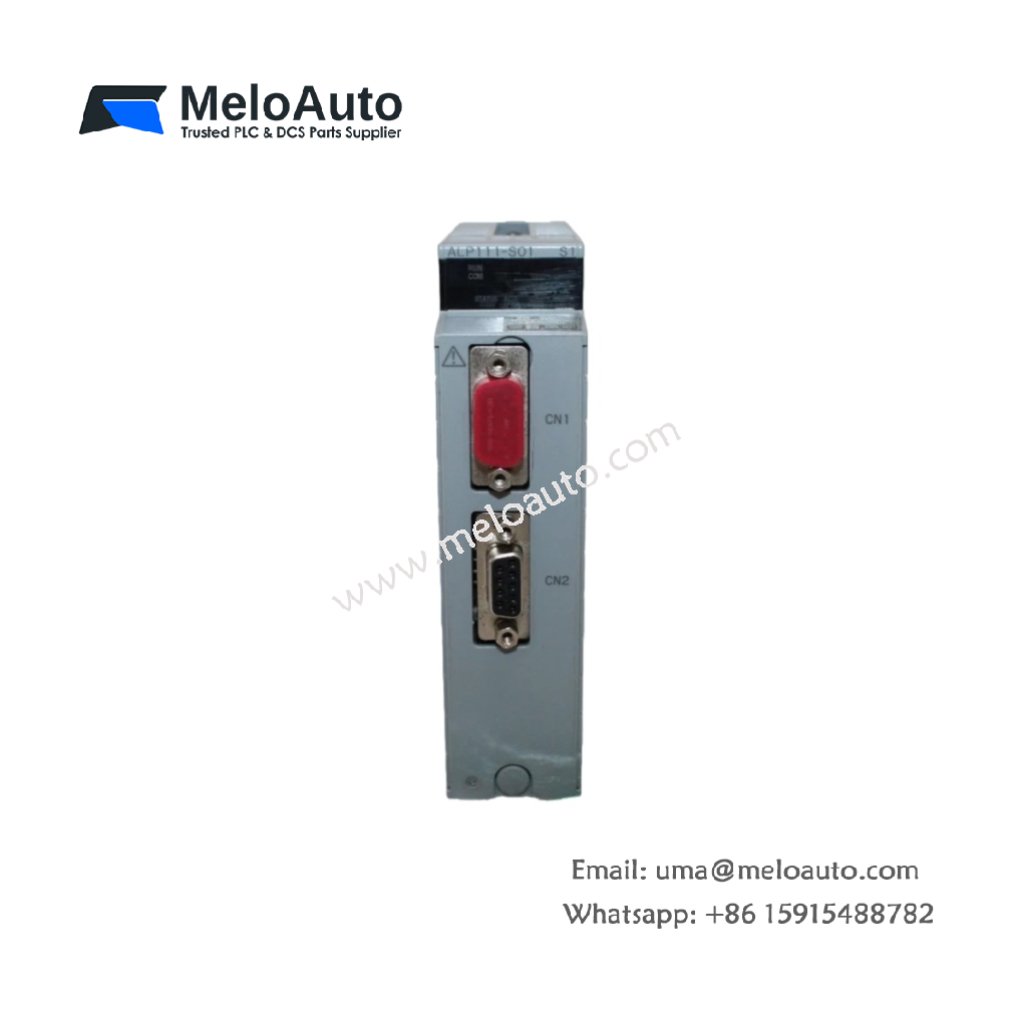

Yokogawa ALP111-S01 PROFIBUS-DP Communication Module

The Yokogawa ALP111-S01 is a PROFIBUS-DP communication module designed to seamlessly integrate with Yokogawa field control systems. Serving as the master device in PROFIBUS-DP networks, this module ensures smooth and reliable communication with various slave devices. Ideal for industrial automation, it supports both process automation and factory automation. Additionally, the ALP111-S01 enables high-speed, long-distance communication while simplifying maintenance and troubleshooting tasks.

Technical Specifications of the Yokogawa ALP111-S01

Specification	Details
Model Number	ALP111-S01
Manufacturer	Yokogawa Electric
Product Type	PROFIBUS-DP Communication Module (for FIO)
Interface	PROFIBUS-DP
Connection Method	EIA-RS-485 compliant
Signal Isolation	Isolated for reliable data transmission
Transmission Speed	9600 bps to 12 Mbps
Transmission Route	Shielded for enhanced signal integrity
Maximum Transmission Distance	1.2 km per segment (at 9600 bps)
Number of Communication Ports	1 port
Communication Port	D-sub 9-pin (female)
Maintenance Port	D-sub 9-pin (male), RS-232C interface
Max. Current Consumption	0.7 A
Weight	0.3 kg

Key Features of the Yokogawa ALP111-S01

Reliable Data Transmission: The ALP111-S01 ensures stable and reliable communication with PROFIBUS-DP-compliant devices. It uses EIA-RS-485 for connection, providing secure signal isolation and shielding for maximum data integrity.
Flexible Communication Speed: Supporting speeds from 9600 bps to 12 Mbps, this module adapts to diverse communication requirements, offering flexibility in various network setups.
Long-Distance Capability: With a transmission distance of up to 1.2 km per segment at 9600 bps, the ALP111-S01 allows for the construction of large, scalable industrial networks.
Compact and Lightweight: Despite its powerful functionality, the ALP111-S01 weighs only 0.3 kg and boasts a compact form, making installation in existing systems quick and straightforward.
Easy Maintenance: Featuring a D-sub 9-pin (male) RS-232C maintenance port, the ALP111-S01 allows for hassle-free troubleshooting and efficient maintenance.

Applications of the Yokogawa ALP111-S01

The ALP111-S01 is highly versatile and suitable for use in various industries. Here are some key applications:

Process Automation: It plays a vital role in ensuring seamless communication between field devices and control systems, facilitating efficient process control.
Factory Automation: The ALP111-S01 enhances the automation of manufacturing systems, improving communication across production lines and machinery.
Infrastructure Projects: This module is designed for large-scale infrastructure projects, ensuring reliable, high-speed communication over long distances.
