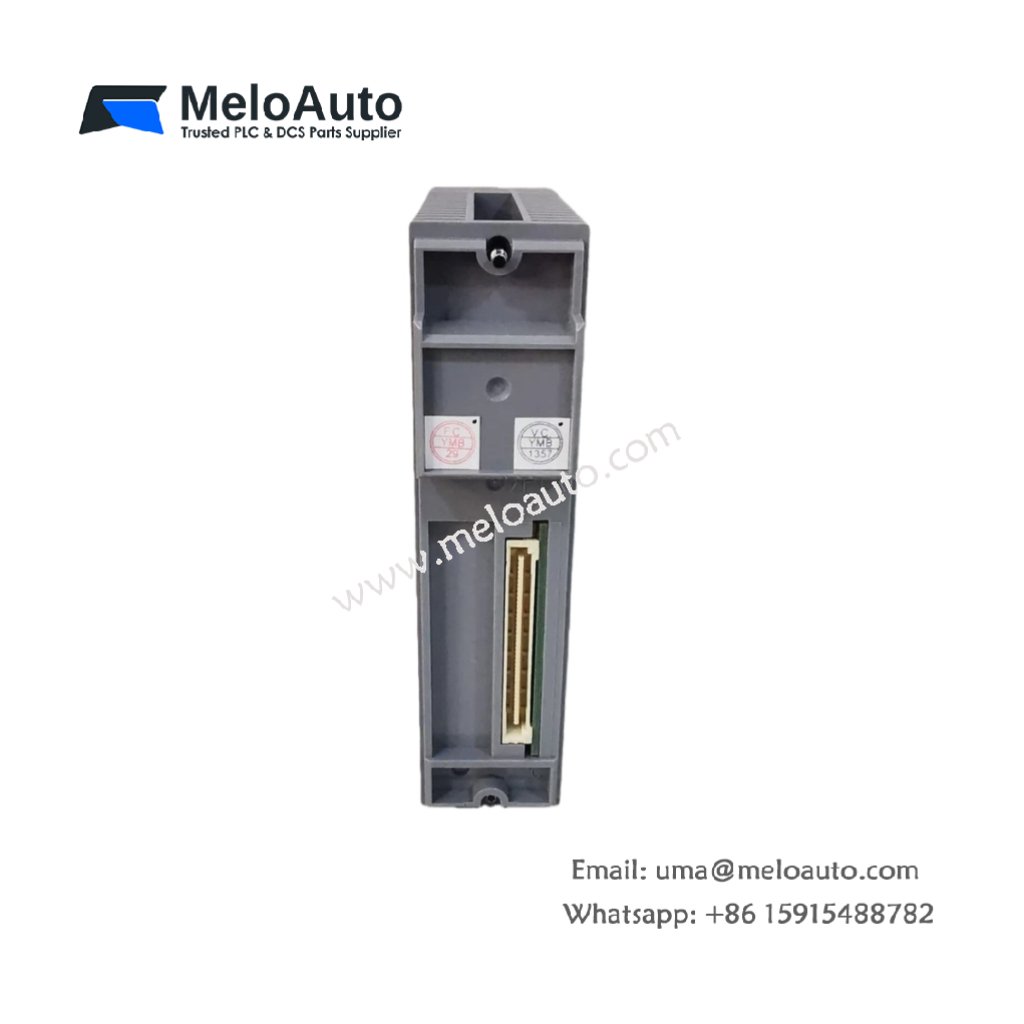

Yokogawa ALF111-S00 Foundation Fieldbus Communication Module

The Yokogawa ALF111-S00 is a Foundation Fieldbus Communication Module designed for seamless integration between field control stations (FCS) and fieldbus devices. It operates on the FOUNDATION Fieldbus (H1) protocol and is commonly used with AFV/30, AFV40, AFV10, and AFF50 field control units, as well as ESB and ER bus node units. This module ensures reliable and efficient communication in industrial automation systems, making it an essential component for advanced process control.

Key Features of the Yokogawa ALF111-S00 Module

• Model: ALF111-S00
• Manufacturer: Yokogawa Electric
• Type: FOUNDATION Fieldbus Communication Module
• Physical Interface: 2-wire FOUNDATION Fieldbus (H1)
• Transmission Speed: 31.25 Kbps
• Power Supply: 24 VDC
• Power Consumption: 1.5 W
• Operating Temperature: -40°C to +70°C
• Dimensions: 127 mm x 25 mm x 127 mm (5.0 in x 1.0 in x 5.0 in)
• Weight: 0.3 kg (0.66 lbs)
• Withstanding Voltage: 1500 V AC/min from field to system
• Bus Connection: Pressure clamp terminals with removable terminal block and built-in terminators

Technical Specifications

Performance and Reliability

The Yokogawa ALF111-S00 module is engineered for high-performance communication in process automation systems. It provides a 31.25 Kbps transmission speed over a 2-wire FOUNDATION Fieldbus (H1) interface, ensuring fast and reliable data exchange. Designed for field control stations, this module is highly durable, capable of withstanding voltages up to 1500 V AC for enhanced safety.

Additionally, the Yokogawa ALF111-S00 supports dual redundancy, allowing for the installation of two modules within the same node. This ensures maximum system reliability and uptime. The module also supports a maximum of 48 control I/O points per segment, enabling efficient control over multiple devices. You can connect up to 32 fieldbus devices per segment, which is ideal for scalable and flexible system designs.

Advanced Features for Industrial Automation

• Link Active Scheduler (LAS): The LAS function efficiently manages data exchange with connected fieldbus devices, ensuring smooth communication and synchronization across the network.
• Clock Master Function: This feature allows the module to synchronize communication across multiple devices, optimizing the overall performance of your automation system.
• Dual Redundancy: By supporting dual modules in the same node, the ALF111-S00 offers enhanced system reliability, reducing the risk of communication failures.
• Fieldbus Device Connectivity: With the ability to connect up to 32 devices per segment, this module is highly scalable and suitable for complex network configurations.

Durability and Installation Flexibility

The Yokogawa ALF111-S00 is designed for use in challenging industrial environments. It has a wide operating temperature range of -40°C to +70°C, making it suitable for extreme conditions. The pressure clamp terminals and removable terminal block simplify installation and maintenance, while the built-in terminators ensure reliable communication.

Applications

The Yokogawa ALF111-S00 is perfect for industries that require robust fieldbus communication, including:

• Oil & Gas: Ensuring reliable communication in harsh field environments.
• Chemical Processing: Facilitating seamless control and monitoring of processes.
• Power Generation: Supporting critical communication in power plants and energy distribution systems.
• Water and Wastewater Treatment: Enhancing data exchange and system monitoring in water treatment facilities.
• Factory Automation: Connecting multiple control stations and field devices in complex automation systems.

The Yokogawa ALF111-S00 ensures robust and reliable communication, making it a critical component in large-scale industrial automation systems.
