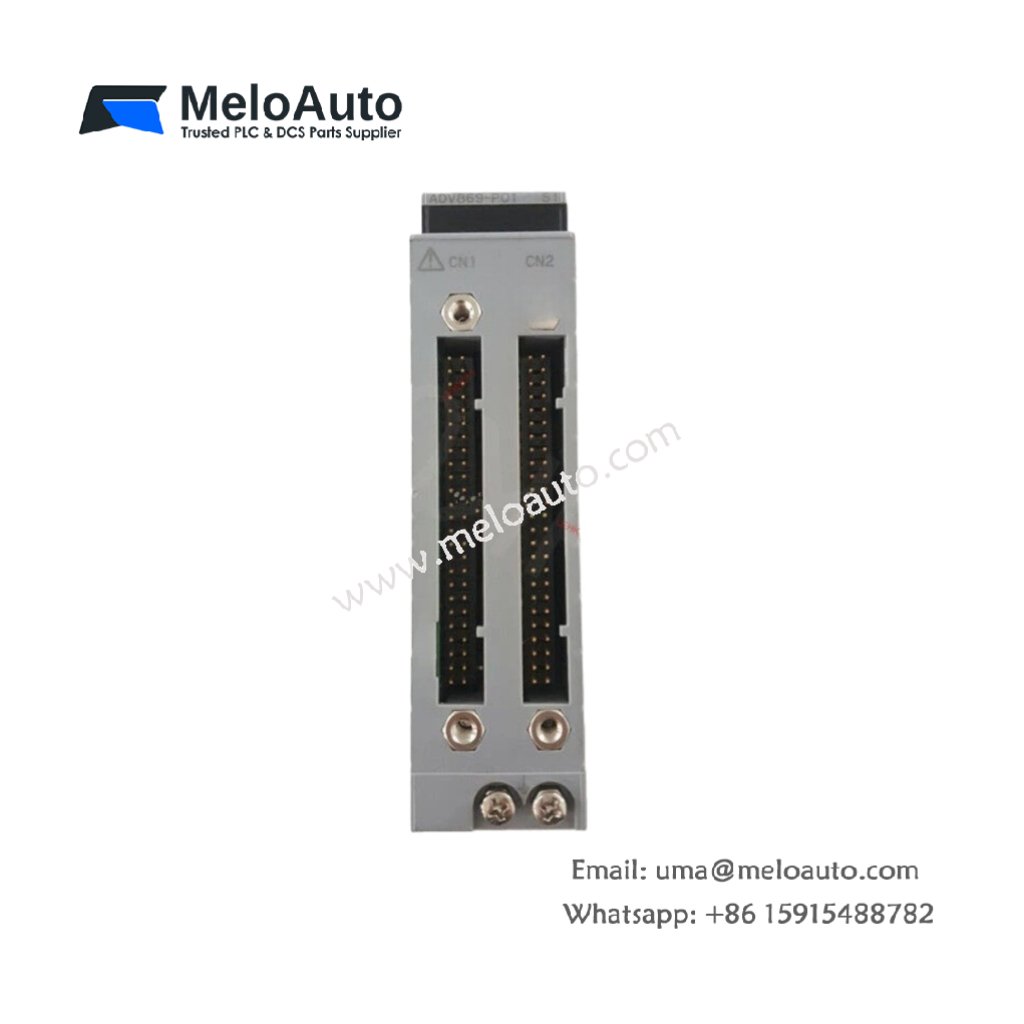

Yokogawa ADV869 Digital I/O Module for Industrial Automation

The Yokogawa ADV869 is a high-performance digital I/O module specifically designed for use with the ST5 series. It delivers versatile I/O functionality, making it ideal for diverse industrial automation systems. Additionally, the ADV869-P00 variant incorporates advanced features, including pulse width modulation and time-proportional output capabilities, ensuring precise control for various applications.

Key Features of the Yokogawa ADV869 Digital I/O Module

32-Channel Configuration: This module supports 32 channels for both input and output, providing ample flexibility for a wide range of industrial applications.
Signal Isolation: It features signal isolation for every 16 channels, helping to reduce interference and enhancing safety.
Wide Input Voltage Range: The input voltage for the OFF signal ranges from 4.5V to 25V DC, while the ON signal requires only 1V DC.
Current Rating: The minimum current for a short-circuit is 1.25 mA, with input signals requiring a resistance of 100 kΩ or more for the OFF signal, and 200 kΩ or less for the ON signal.
Pulse Width and Time-Proportional Output: The ADV869 supports pulse width and time-proportional output, allowing for a pulse width range from 8 ms to 7200 s, enabling precise control in industrial processes.
Output Contact Rating: The module offers an output contact rating of 30V DC and 100mA for both inductive and resistive loads.
Resolution of Pulse Width: The module offers a pulse width resolution down to 8 ms, with an additional 1 ms delay for ON/OFF operations, ensuring high precision.
Maximum Power Consumption: The ADV869 consumes a maximum of 800 mA at 5V DC, optimizing energy usage while maintaining performance.
Weight: The unit weighs approximately 0.30 kg, which makes it compact and easy to integrate into existing systems.
External Connection: The module connects with a dedicated KS9 cable, providing a secure and reliable interface.
Compatibility: The ADV869 is fully compatible with the ST5 series, ensuring smooth integration into your automation infrastructure.

Detailed Technical Specifications of the Yokogawa ADV869

The Yokogawa ADV869 module offers robust features and performance. Below are the key specifications:

Specification	Value
Manufacturer	Yokogawa
Model	ADV869
Product Type	Digital I/O Module
Channels	32 channels (input and output)
Signal Isolation	Common every 16 channels
Input Signal (OFF)	100 kΩ or more
Input Signal (ON)	200 kΩ or less
Input Voltage (OFF)	4.5V to 25V DC
Input Voltage (ON)	1V DC
Current for Short-Circuit	1.25 mA
Output Signal	Transistor contact
Output Contact Rating	30V DC, 100mA for inductive and resistive loads
Pulse Width	8 ms to 7200 s
Pulse Width Resolution	8 ms + 1 ms (ON/OFF delay)
Maximum Current Consumption	800 mA (5V DC)
Weight	0.30 kg (approx.)
External Connection	Dedicated cable (KS9)
Compatible Card	ST5 Series

Applications of the Yokogawa ADV869 Digital I/O Module

The Yokogawa ADV869 excels in a wide range of industrial automation applications. Below are some of its ideal use cases:

Industrial Control Systems: The module efficiently controls machinery, ensuring smooth operation in factory automation processes.
Power Electronics: The ADV869 facilitates accurate signal processing and control for optimal power management in industrial systems.
Process Automation: This module is highly suitable for controlling processes that require pulse width and time-proportional outputs, offering precision and consistency.
Data Acquisition Systems: With its robust I/O capabilities, the ADV869 is an excellent choice for monitoring and controlling data from sensors and other industrial devices.
