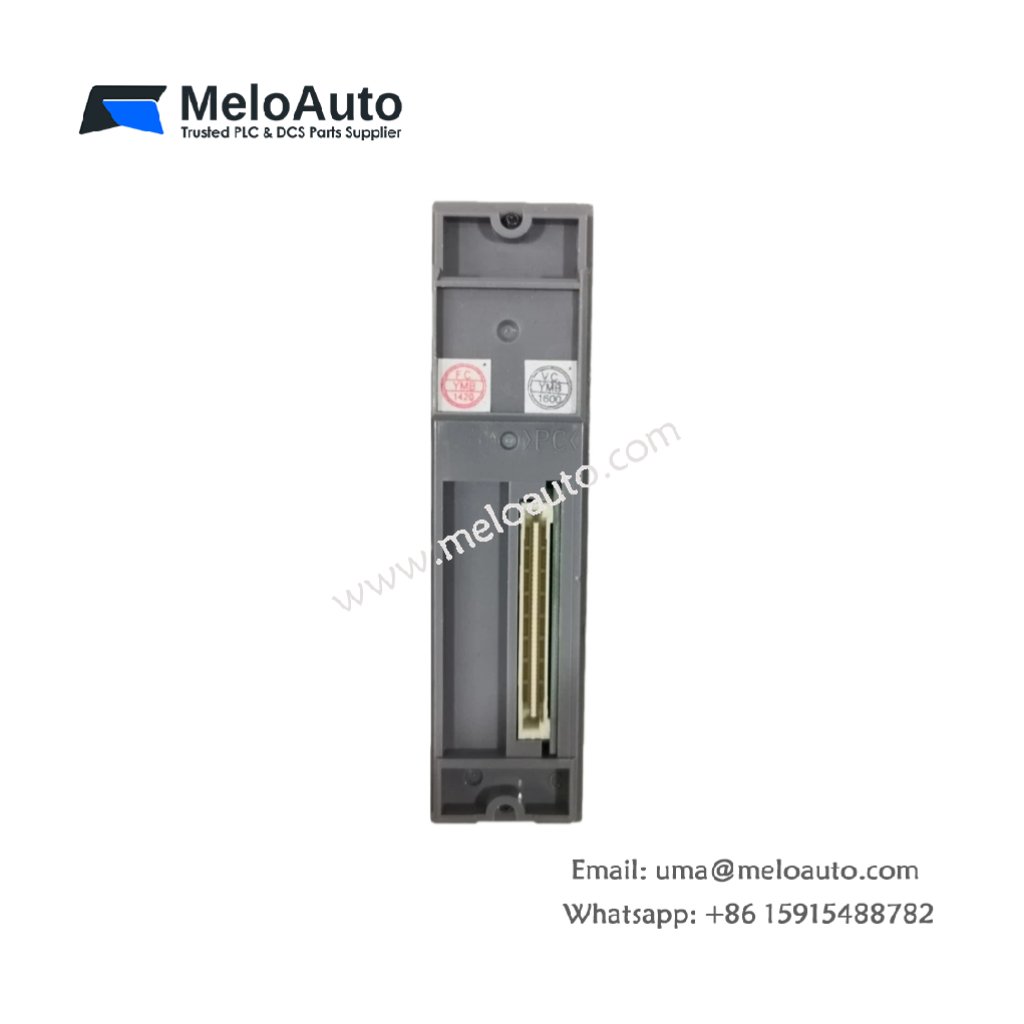

Yokogawa ADV551-P03 S2 32-Channel Digital Output Module

Overview

The Yokogawa ADV551-P03 S2 is a high-performance, 32-channel digital output module designed for industrial automation. Operating at 24 V DC, it provides reliable transistor contact outputs. Additionally, it supports a wide range of voltage and current settings, offering excellent versatility for various control tasks in industrial environments.

Technical Specifications

Specification	Details
Model Number	ADV551-P03 S2
Number of Output Channels	32 Channels
Rated Applied Voltage	24 V DC
External Power Supply Voltage Range	20.4 to 26.4 V DC
Output ON Voltage Maximum	2 V DC
Leak Current Maximum (Output OFF)	0.1 mA
Output Format	Current Sink
Maximum Load Current	100 mA per channel (at 26.4 V)
Output Response Time (Status Output)	3 ms or less
Output Response Time (Mixed Status & Pulse Outputs)	10 ms or less
Pulse Width	8 ms to 7200 s
Pulse Width Resolution	8 ms, with a maximum 1 ms delay for ON/OFF transitions
Maximum Current Consumption	700 mA (5 V DC), 60 mA (external power supply)
Weight	0.20 kg

Key Features & Benefits

High Reliability: The ADV551-P03 S2 is engineered for consistent performance in demanding automation applications, ensuring reliable output for complex control systems.
Wide Power Range: It accepts external power supplies ranging from 20.4 V to 26.4 V DC, offering flexibility in system integration.
Fast Response Time: With a quick output response time of 3 ms for status outputs, this module supports precise control in real-time applications.
Versatile Pulse Width: The ADV551-P03 S2 supports a pulse width range from 8 ms to 7200 s, accommodating a variety of control needs.
Compact and Lightweight: Weighing only 0.20 kg, this module is easy to integrate into systems with space constraints.

Options and Suffix Codes

The ADV551-P03 S2 is available with several options to enhance its functionality:

-P: Includes pulse width output function/time-proportional output function.
-5: Basic model, without status display and explosion protection.
-6: Includes status display, without explosion protection.
-E: Without status display, with explosion protection.
-F: Includes both status display and explosion protection.
-0: Basic type.
-3: Includes ISA Standard G3 option and temperature range option (-20 to 70°C).

Applications

The Yokogawa ADV551-P03 S2 is perfect for various industrial applications, such as:

Controlling Solenoid Valves: Operate solenoid coils with precise ON/OFF control.
Motor Control: Start and stop motors reliably and efficiently.
Pump and Fan Management: Manage the operation of pumps and fans in industrial processes.
Valve and Gate Control: Open and close valves or gates based on system requirements.
Electrical Equipment Switching: Power lights, alarms, and other electrical devices as needed.

Additional Information

Explosion Protection: The module offers versions with or without explosion protection, making it suitable for hazardous environments.
Easy Integration: It integrates seamlessly into the Yokogawa CENTUM system and other industrial control platforms.
Built-in Diagnostics: Some variants include diagnostic functions, ensuring optimal system health and minimizing downtime.
