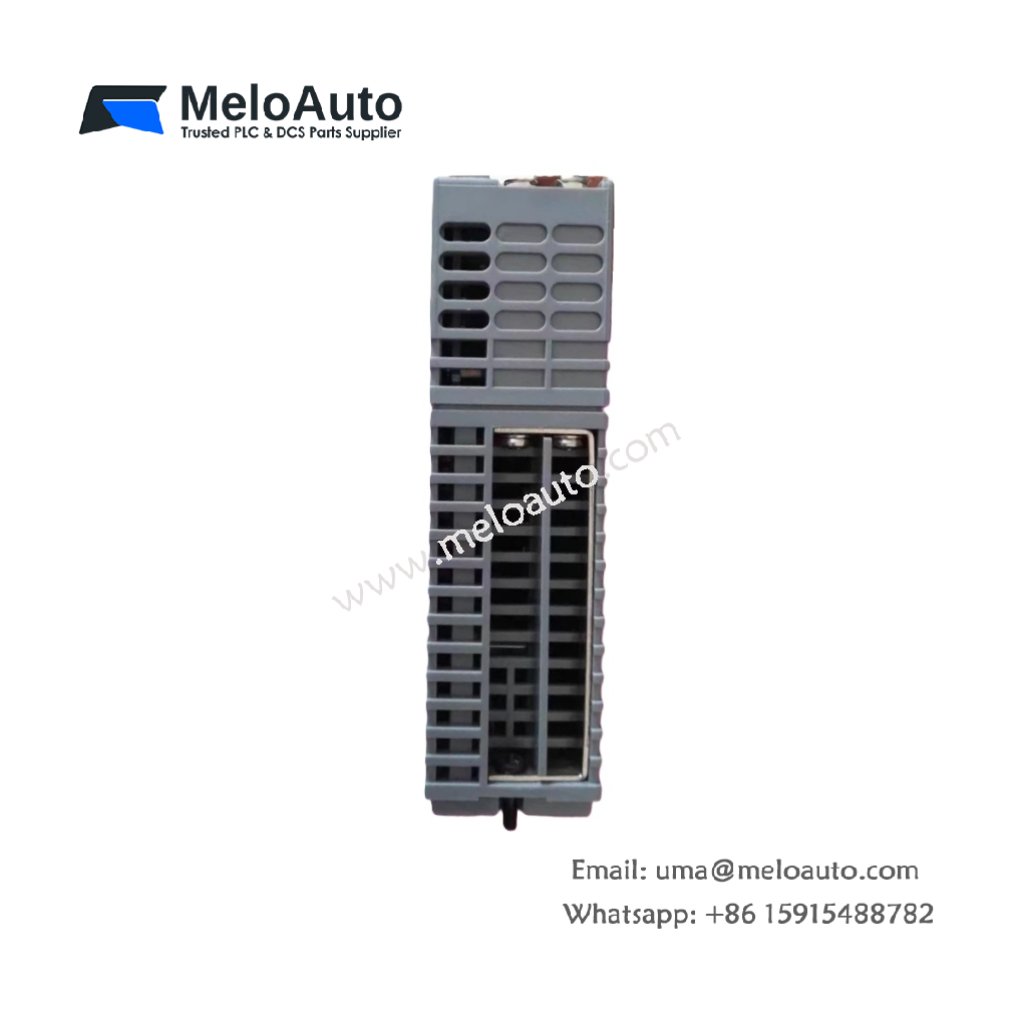

Yokogawa ADV169 Digital Input Module

Overview

The Yokogawa ADV169 is a robust and high-performance digital input module, offering 64 isolated input and 64 output channels. Designed for industrial automation and control systems, it ensures reliable operation in demanding environments. The module supports both contact and voltage input signals, providing excellent versatility. Its signal isolation between every 16 channels enhances system stability, even in noisy industrial settings. The ADV169 delivers fast input response times, making it ideal for real-time applications where precision and reliability are critical.

Technical Specifications

The following table provides a detailed overview of the technical specifications for the Yokogawa ADV169:

Specification	Details
Model Number	ADV169
Module Type	Digital Input Module
Number of Input Channels	64
Number of Output Channels	64
Signal Isolation	Common every 16 channels
Input Signal Type	Contact input and voltage input
Contact Input OFF Signal	100 kΩ or more
Contact Input ON Signal	200 Ω or less
Voltage Input OFF Signal	4.5 to 25 V DC
Voltage Input ON Signal	1 V DC, 200 Ω or less
Input Contact Rating	5 V DC, 20 mA or more
Pushbutton Input Function	Not supported
Input Response Time	8 ms or less (for status input)
Output Signal	Transistor contact
Output Contact Rating	Inductive load: 30 V DC, 100 mA; resistive load: 30 V DC, 100 mA
Output Response Time	16 ms or less
Pulse Width	8 ms to 7200 s
Pulse Width Resolution	8 ms, with a maximum 1 ms delay for ON/OFF transitions
Maximum Current Consumption	800 mA (5 V DC)
Weight	0.3 kg
External Connection	Dedicated cable (KS9)

Key Features & Benefits

64 Input and 64 Output Channels: The ADV169 module offers a high channel density, making it suitable for complex automation systems that require multiple input and output signals.
Signal Isolation: Electrical isolation is provided every 16 channels, which ensures stability and prevents cross-talk or signal interference between channels.
Versatile Input Options: It supports both contact and voltage input types, accommodating a wide range of field devices and signals.
Fast Input Response: With a fast input response time of just 8 ms, the ADV169 ensures real-time processing of status inputs, enhancing control system responsiveness.
Efficient Output Functionality: The module provides transistor-based output contacts with a high contact rating, suitable for both inductive and resistive loads.
Precise Pulse Width Control: The ADV169 offers precise pulse width control, ranging from 8 ms to 7200 s, with a 1 ms delay for ON/OFF transitions.
Compact and Lightweight Design: Weighing just 0.3 kg and featuring a compact form factor, the ADV169 is easy to install in various industrial environments.
Low Power Consumption: With a maximum current consumption of 800 mA at 5 V DC, the module operates efficiently, reducing energy usage in automation systems.

The Yokogawa ADV169 is a versatile and reliable digital input module that provides fast, accurate signal processing for industrial automation applications.
