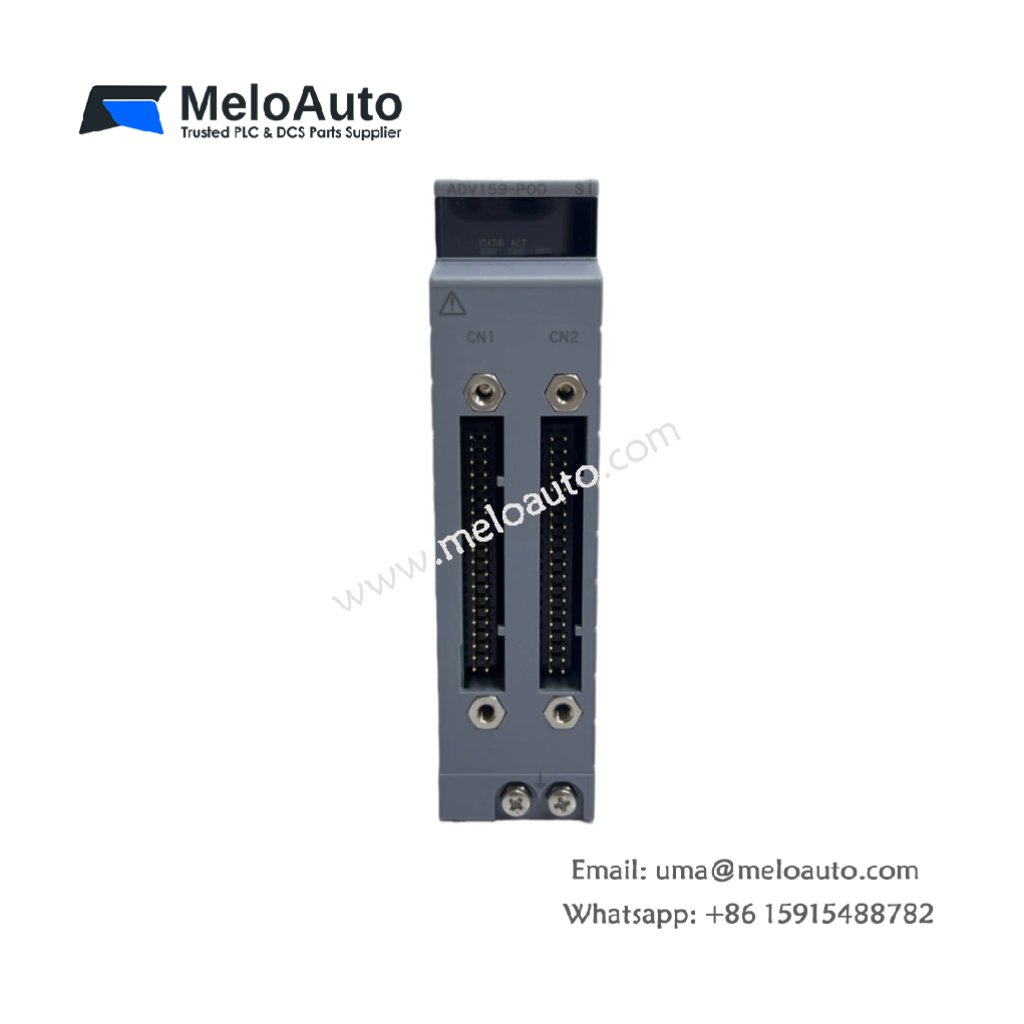

Yokogawa ADV159 Digital Input Module for CENTUM-ST3

Overview

The Yokogawa ADV159 is a highly reliable digital input module specifically designed for use with CENTUM-ST3 systems. This module provides 32 input channels, offering flexible and accurate signal processing for a variety of industrial applications. The ADV159 ensures electrical isolation between channels, promoting safe and stable operations. With its versatile input options, this module supports both contact and voltage input, making it ideal for diverse industrial settings that require precision and reliability.

Technical Specifications

The following table outlines the key technical specifications of the Yokogawa ADV159 digital input module:

Specification	Details
Model Number	ADV159
Module Type	Digital Input Module
Number of Input Channels	32
Input Signal Types	Contact input and voltage input
Contact Input OFF Signal	100 kΩ or more
Contact Input ON Signal	200 Ω or less
Voltage Input OFF Signal	4.5 to 25 V DC
Voltage Input ON Signal	1 V DC, 200 Ω or less
Input Contact Rating	5 V DC, 20 mA or more
Pushbutton Input Function	Minimum ON detection time of 20 ms
Input Response Time	8 ms (status input)
Compatible Card	ST3 compatible
Option Codes	/P: With pushbutton input, /S1: ISA Standard G3 option
Dimensions	Compact (dimensions available upon request)
Weight	Lightweight (weight available upon request)

Key Features & Benefits

Flexible Input Options: The ADV159 supports both contact and voltage input, offering versatility for a wide range of industrial devices.
Fast Response Time: With an 8 ms input response time for status signals, the ADV159 ensures rapid processing and minimal delay in critical operations.
Pushbutton Input: The module includes a pushbutton input function with a minimum ON detection time of 20 ms, ideal for human-machine interface applications.
High Contact Rating: It supports contact inputs with a minimum rating of 5 V DC and 20 mA, making it reliable for various field devices.
Electrical Isolation: The ADV159 ensures complete isolation between input channels and the system, safeguarding equipment from electrical interference.
Easy Integration: This module is fully compatible with CENTUM-ST3 systems and offers simple installation, reducing setup time.

The Yokogawa ADV159 is a versatile and reliable solution for digital input processing in complex industrial automation systems. It guarantees precise signal acquisition and safe operation, making it an ideal choice for a wide range of applications.
