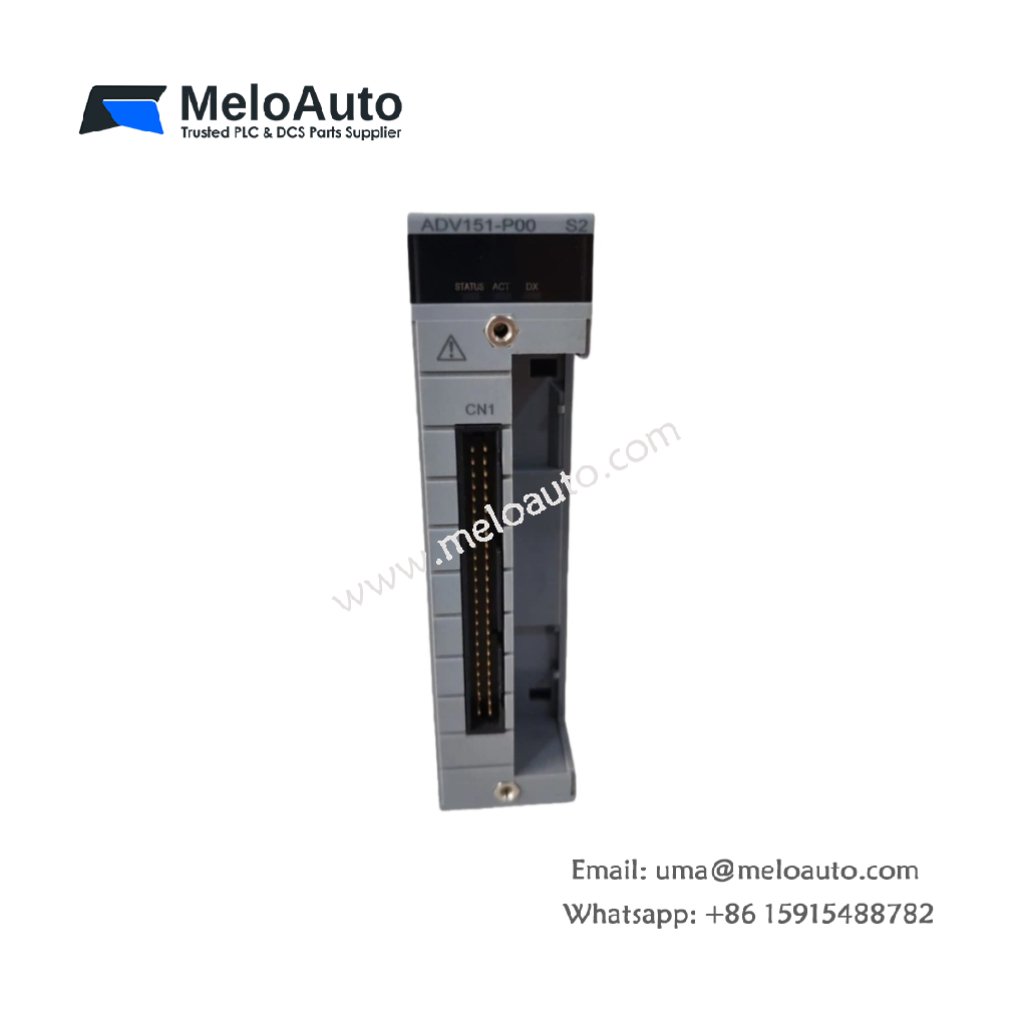

Yokogawa ADV151-P00 S2 32-Channel DC Digital Input Module

The Yokogawa ADV151-P00 S2 is a versatile 32-channel DC digital input module specifically designed for Yokogawa Centum VP DCS. This module excels in receiving ON/OFF signals from various field devices, including proximity switches, limit switches, and pushbuttons. With a broad input voltage range of 24 to 250 V DC, the ADV151-P00 S2 is ideal for applications requiring reliable signal acquisition and flexibility. Additionally, it supports dual redundant configurations, ensuring high availability in mission-critical operations.

Key Features:

Dual Redundant Configuration: Offers high reliability for critical systems by supporting dual redundancy.
Wide Input Voltage Range: Accepts input voltages from 24 V DC to 250 V DC, providing flexibility in various applications.
Signal Flexibility: Supports both status input and pushbutton input functions for versatile usage.
Fast Input Response: 3 ms or less for status input; 10 ms for mixed status and pulse outputs.
Pulse Width: Adjustable from 8 ms to 7200 ms, ideal for precise control.
Pulse Width Resolution: 8 ms, with an ON/OFF delay of up to 1 ms.
External Connections: Features pressure clamp terminals, a dedicated cable (AKB331), and an MIL connector cable for secure wiring.

Technical Specifications:

Specification	Details
Model	ADV151-P00 S2
Product Type	Digital Input Module
Number of Input Channels	16 isolated channels
Rated Input Voltage	24 V DC to 250 V DC
Input ON Voltage	11 V DC to 250 V DC
Input OFF Voltage	0 V DC to 10 V DC
Input Current (Typical)	4.7 mA at 120 V / 60 Hz per channel
Input Current (Maximum)	7 mA per channel
Withstanding Voltage	2 kV AC for 1 minute (between input signal and system)
	1.35 kV AC for 1 minute (between commons)
Input Response Time (Status Input)	3 ms or less
Input Response Time (Mixed Status & Pulse)	10 ms or less
Pulse Width Range	8 ms to 7200 ms
Pulse Width Resolution	8 ms (with an ON/OFF delay of max 1 ms)
Current Consumption (Max)	500 mA at 5 V DC
Weight	0.3 kg (9.0 oz)
Dimensions	2.5 cm x 12.7 cm x 12.7 cm (1.0″ x 5.0″ x 5.0″)
External Connections	Pressure clamp terminal, MIL connector cable, AKB331 cable
Country of Origin	Indonesia

Applications:

Manufacturing Process Control: The ADV151-P00 S2 enables seamless integration into manufacturing control systems, ensuring efficient operation and monitoring.
Industrial Automation: Ideal for automating industrial processes by providing reliable digital signal processing.
Building Automation: Used in building management systems to control and monitor various parameters.
Power Generation and Distribution: Essential for applications in power plants, ensuring stable signal processing.
Oil and Gas Industry: Withstanding harsh environments, it is suitable for oil and gas operations where high reliability is crucial.

Key Benefits:

Reliable Performance: The ADV151-P00 S2 provides stable and accurate signal acquisition, ensuring high system uptime.
Flexible Voltage Range: With an input voltage range of 24 V DC to 250 V DC, it accommodates a wide variety of industrial systems.
Redundancy Support: The dual redundant configuration guarantees system reliability, even in critical applications.
Fast Response Time: The module supports rapid signal processing, making it ideal for time-sensitive operations.
Easy Installation: With pressure clamp terminals and MIL connectors, installation and wiring are straightforward and secure.
