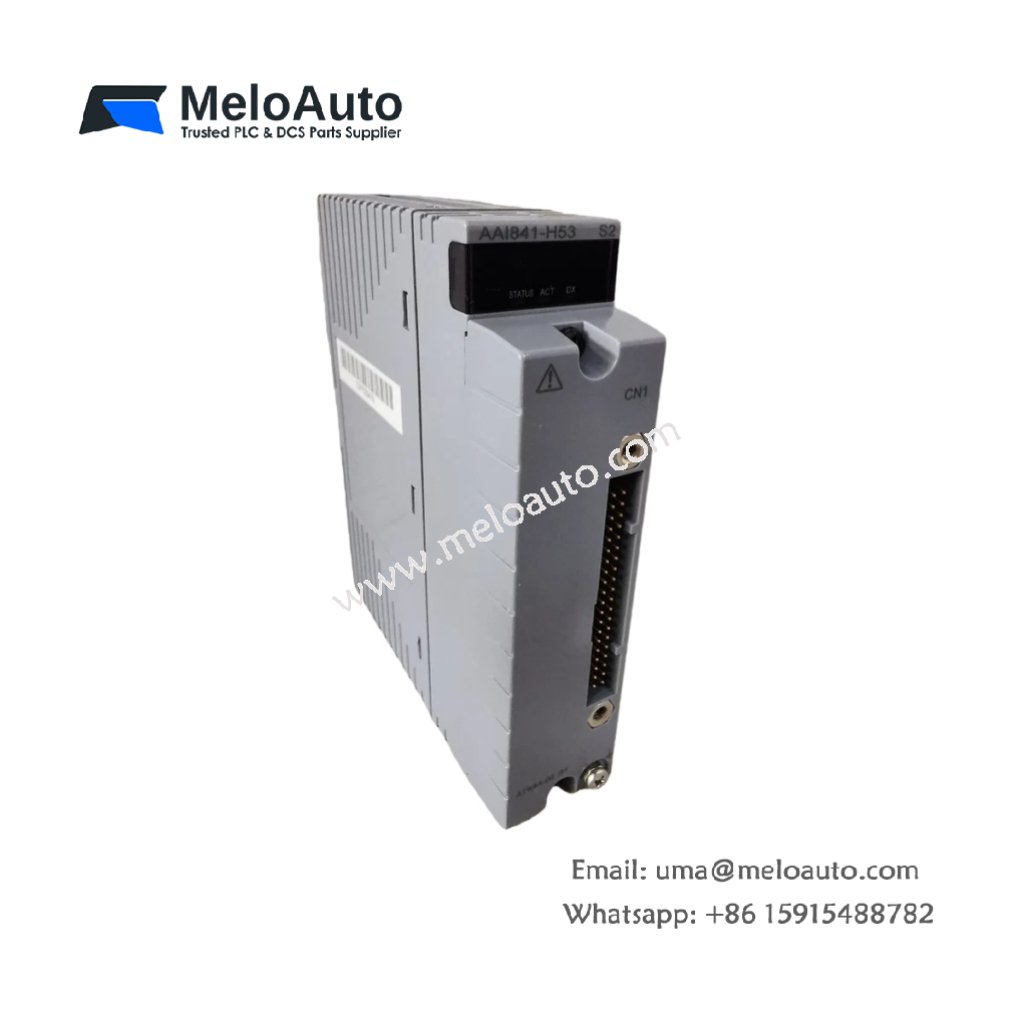

Yokogawa AAI841 Analog I/O Module

The Yokogawa AAI841 is a high-performance analog I/O module designed for industrial automation systems. It provides both input and output capabilities with 8 channels for each, offering precise data conversion and control. The module supports a 4 to 20 mA signal range and is suitable for applications that require reliable analog signal processing. This module is perfect for controlling variables such as pressure, temperature, flow, and level in a variety of industries.

Key Specifications of AAI841 Module

Specification	Details
Model Number	AAI841
Module Type	Analog Input/Output Module
Channels	8 input channels, 8 output channels
Signal Type	4 to 20 mA (input and output)
Isolation	Non-isolated
Input Resistance	400 Ω at 20 mA, 1000 Ω at 4 mA
Input Voltage Range	1 to 5 V, with allowable common mode voltage of +1 V or more
Output Resistance	1 MΩ or more
Circuit-Open Detection Resistance	340 kΩ or more
Accuracy	Less than +48 µA for output below 0.65 mA
Data Update Period	10 ms
Input Step Response Time	100 ms
Output Step Response Time	Less than +48 µA for output below 0.65 mA
Power Supply	2-wire or 4-wire transmitter configuration
Temperature Drift	+0.1 %/10°C
Maximum Current Consumption	310 mA (5 V DC), 500 mA (24 V DC)
Weight	0.3 kg

Features and Benefits

Flexible Signal Support: The AAI841 module supports both input and output of 4 to 20 mA signals, making it compatible with a wide range of industrial control systems.
High Precision and Stability: With high accuracy and a low temperature drift of +0.1 %/10°C, the AAI841 ensures consistent, reliable signal processing over time.
Fast Data Updates: The module provides a rapid 10 ms data update period, allowing for quick signal conversion and control actions in dynamic environments.
Efficient Power Consumption: With a maximum current consumption of 310 mA (5 V DC) or 500 mA (24 V DC), the AAI841 module is designed to operate efficiently while maintaining performance.
Reliable Circuit Detection: The module detects circuit-open conditions, providing reliable feedback for system troubleshooting. With a resistance detection of 340 kΩ or more, it ensures early detection of issues.
Compact and Lightweight Design: Weighing only 0.3 kg, this module is ideal for rack-mounted installations and ensures minimal impact on space requirements.

Applications

The Yokogawa AAI841 module is suitable for a wide range of industrial applications, including:

Process Control Systems: It is ideal for use in controlling temperature, pressure, flow, and other critical variables in various processes.
Automation Systems: The AAI841 seamlessly integrates with Yokogawa’s advanced control systems, such as the CENTUM series, for efficient automation.
Data Acquisition: It provides reliable analog signal processing, ensuring accurate data collection for monitoring and analysis.
