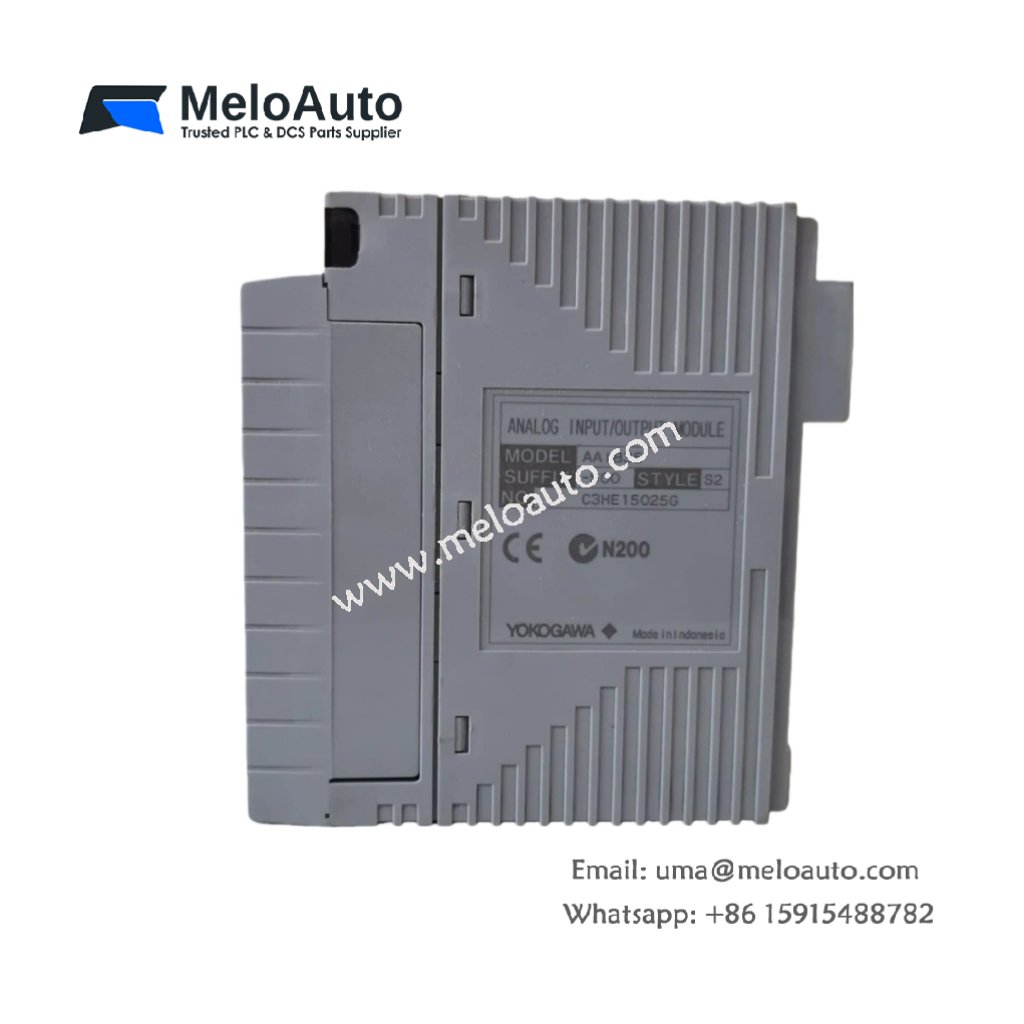

Yokogawa AAI143-S00/K4A00: 16-Channel Analog Input Module

Overview

The Yokogawa AAI143-S00/K4A00 is a 16-channel analog input module designed specifically for Yokogawa’s CENTUM VP distributed control system (DCS). This non-isolated module accepts a wide range of analog signals, including 4 to 20 mA DC and 1 to 5 V DC signals, making it ideal for various industrial applications. The module ensures fast and accurate signal conversion with an impressive 0.1% accuracy and 2 ms conversion time.

With its hot-swappable design, the AAI143-S00/K4A00 enables easy maintenance without system downtime, enhancing productivity. It integrates seamlessly into Yokogawa’s CENTUM VP DCS, supporting continuous monitoring and control of industrial processes.

Key Features

16 Input Channels: The AAI143-S00/K4A00 provides 16 isolated input channels, making it suitable for applications requiring multiple connections.
Signal Input Range: It accepts 4 to 20 mA DC or 1 to 5 V DC input signals, offering flexibility for various industrial sensors.
High Conversion Accuracy: With 0.1% accuracy of full scale, the module delivers precise data for control systems, ensuring reliable decision-making.
Fast Conversion Time: The 2 ms conversion time allows for real-time monitoring and quick responses in dynamic environments.
HART Communication: The module supports HART communication, providing easy access to field device diagnostics and remote configuration.
Hot-Swappable Design: The AAI143-S00/K4A00 can be replaced or maintained without powering down the system, minimizing downtime and improving operational efficiency.
Compact Size: Its compact design (100 mm x 80 mm x 35 mm) makes it easy to install in space-constrained environments while maintaining high functionality.

Technical Specifications

Specification	Details
Model	AAI143-S00/K4A00
Number of Input Channels	16
Input Signal Type	4 to 20 mA DC or 1 to 5 V DC
Input Range	-10 to 130 V
Conversion Accuracy	±0.1% of full scale
Conversion Time	2 ms
HART Communication	Yes
Hot-Swappable Design	Yes
Dimensions (W x H x D)	100 mm x 80 mm x 35 mm
Weight	Approx. 0.5 kg

Applications

The Yokogawa AAI143-S00/K4A00 is ideal for use in the following industries:

Oil and Gas: Monitor and control critical oil and gas production processes.
Petrochemical: Ensure stable operations in petrochemical processing.
Power Generation: Optimize power generation systems with precise signal processing.
Pulp and Paper: Enhance process control in pulp and paper manufacturing.
Food and Beverage: Maintain consistent quality in food and beverage production.

Conclusion

The Yokogawa AAI143-S00/K4A00 analog input module offers high accuracy, fast conversion time, and HART communication capabilities, making it an ideal choice for Yokogawa CENTUM VP DCS systems. Its hot-swappable design ensures minimal downtime, while its compact size allows for flexible installation in tight spaces. With this module, industries can achieve reliable and efficient control over their processes.
