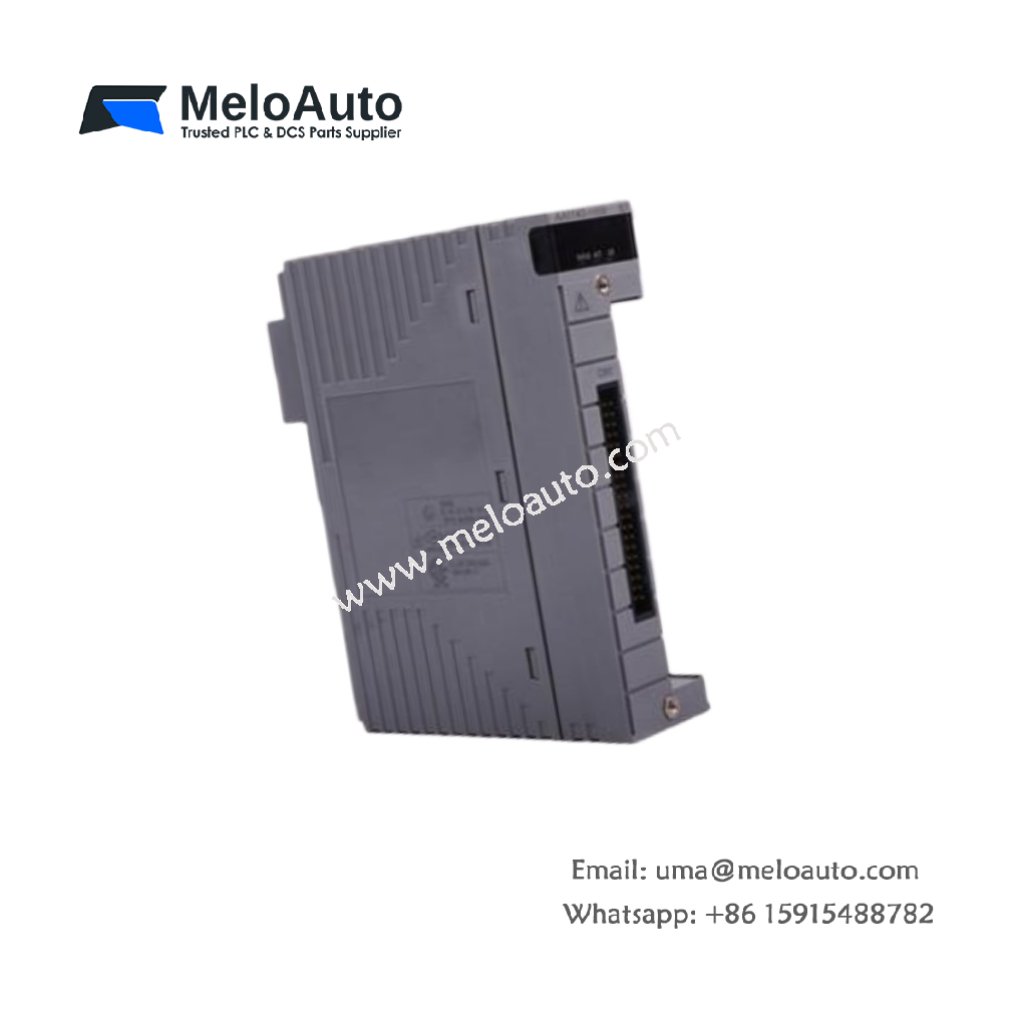

Yokogawa AAI143-H00/K4A00: Analog Input Module

Overview

The Yokogawa AAI143-H00/K4A00 is a versatile 16-channel non-isolated analog input module. It accepts both 4 to 20 mA DC and 1 to 5 V DC signals from 2-wire or 4-wire transmitters. This module is specifically designed for integration with Yokogawa’s Centum CS and Centum VP Distributed Control Systems (DCS). It provides high performance and reliability, making it suitable for various industrial automation applications.

Key Features

Non-Isolated Design: The AAI143-H00/K4A00 module lacks electrical isolation between input channels, which may make it more vulnerable to noise and ground loops.
Wide Input Range: It supports both 4 to 20 mA DC and 1 to 5 V DC signals, providing flexibility for various industrial sensors.
Dual-Redundant Configuration: The module supports a dual-redundant configuration for enhanced system reliability.
HART Communication: The HART protocol is supported, enabling advanced diagnostics, remote configuration, and control.
Cost-Effective Option: Compared to other modules, the AAI143-H00/K4A00 offers a more economical solution for applications that do not require isolated channels.
Simple Integration: The KS Cable Interface Adapter ensures seamless connectivity with other Yokogawa systems.

Key Differences: AAI143-H00/K4A00 vs AAI143-S00

Isolation: The AAI143-H00/K4A00 has non-isolated channels, while the AAI143-S00 offers electrically isolated channels. The isolated version is ideal for environments with high interference or the need for ground isolation.
Cost and Features: The AAI143-H00/K4A00 is a more cost-effective option, suitable for less complex applications where isolation is not a critical factor. In contrast, the AAI143-S00 has additional features, including isolated inputs and wider signal compatibility.

Technical Specifications

Specification	Details
Model	AAI143-H00/K4A00
Number of Channels	16 non-isolated channels
Input Signal Range	4 to 20 mA DC or 1 to 5 V DC
Input Impedance	100 kΩ (for voltage input)
Accuracy	±0.1% of full scale
Resolution	12 bits
Conversion Time	1 ms/channel
Power Supply	24 V DC
Operating Temperature Range	-10°C to +55°C
Supports HART Communication	Yes
Redundant Configuration	Supported
Weight	0.3 kg
External Communication	KS Cable Interface Adapter (ATK4A-00)

Which Module to Choose?

Choosing the right module depends on your application requirements:

If your application needs isolated input channels for noise immunity, consider the Yokogawa AAI143-S00.
For a more cost-effective solution without isolation, the AAI143-H00/K4A00 is ideal, especially in less noisy environments where isolation is not critical.

Applications

The Yokogawa AAI143-H00/K4A00 is suitable for various industrial applications, including:

Oil and Gas: Reliable data acquisition for process monitoring.
Power Generation: Ideal for real-time control and monitoring in power plants.
Chemical Processing: Provides precise signal conversion for chemical production.
Water Treatment: Ensures accurate monitoring of water quality parameters.
Manufacturing: Useful in factories with non-critical process control needs.

Conclusion

The Yokogawa AAI143-H00/K4A00 is a reliable 16-channel non-isolated analog input module that integrates seamlessly into Yokogawa’s DCS systems. It offers flexibility, fast conversion, and cost-effective performance for applications that do not require isolated input channels. For environments with less interference, this module is an excellent choice.
