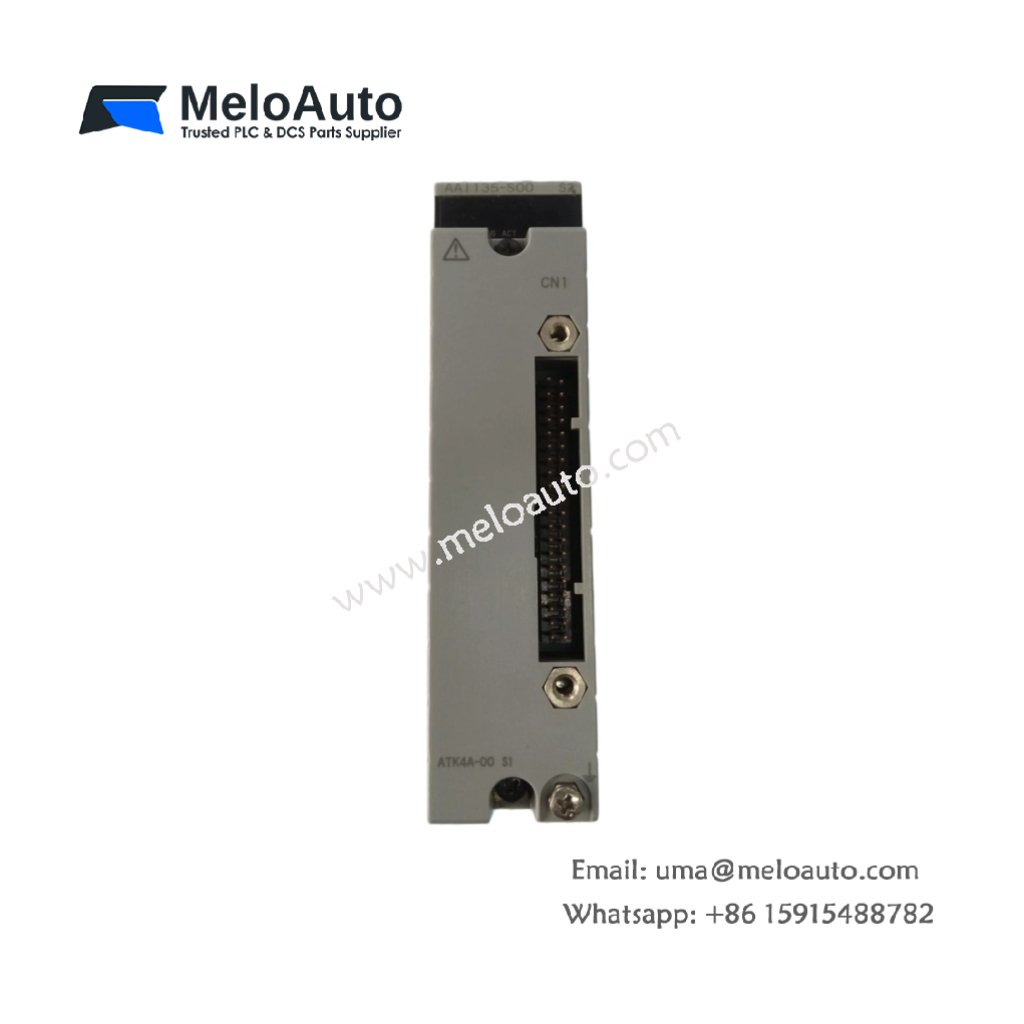

Yokogawa AAI135-S03 Analog Input Module

Module Overview

This analog input module measures high-level voltage signals from field devices. You can install Yokogawa AAI135-S03 directly into CENTUM VP I/O racks. The unit accepts up to 16 voltage input channels per module. It converts analog signals to digital data for process control applications.

Technical Specifications

Parameter	Value
Dimensions (W x H x D)	100 mm x 120 mm x 40 mm
Weight	0.26 kg
Number of channels	16 single-ended inputs
Input voltage ranges	0-10V, -10 to +10V, 0-5V
Input impedance	1 MΩ
Resolution	16-bit (0-65535 counts)
Accuracy	±0.05% of full scale
Conversion time	10 ms for all channels
Isolation	500V AC (channel to backplane)
Overvoltage protection	±30V DC continuous
Field wiring	16-point removable terminal block
Status indicators	1 LED (module power/communication)
Total onboard components	218 discrete parts
Energy storage type	Tantalum and ceramic capacitors
Energy storage rating	270 µF at 16V DC
Operating temperature	-10°C to +55°C

Board Layout and Components

The PCB arranges 16 input channels in two banks of eight. A high-speed 16-bit ADC samples each channel sequentially. Moreover, 218 discrete components include precision voltage dividers and protection circuits. Tantalum capacitors stabilize the voltage reference for accurate conversions. Consequently, the module delivers 0.05% accuracy across all channels.

Installation Process

You can mount Yokogawa AAI135-S03 into any CENTUM VP I/O rack slot. The backplane connector supplies power and transfers digital data to the CPU. Furthermore, a removable terminal block accepts field wiring for all 16 channels. Software configuration selects the input range per bank of eight channels.

Performance Advantages

This module scans all 16 channels in just 10 milliseconds. The 16-bit resolution captures very small voltage changes precisely. Therefore, the module suits applications requiring fast, accurate voltage measurements. The ±30V overvoltage protection also prevents damage from wiring errors.

Safety and Compliance

Yokogawa AAI135-S03 meets CE and RoHS industrial standards. The board discharges stored energy below 3V within five seconds. Hence, technicians face minimal electrical risk during installation or replacement.
