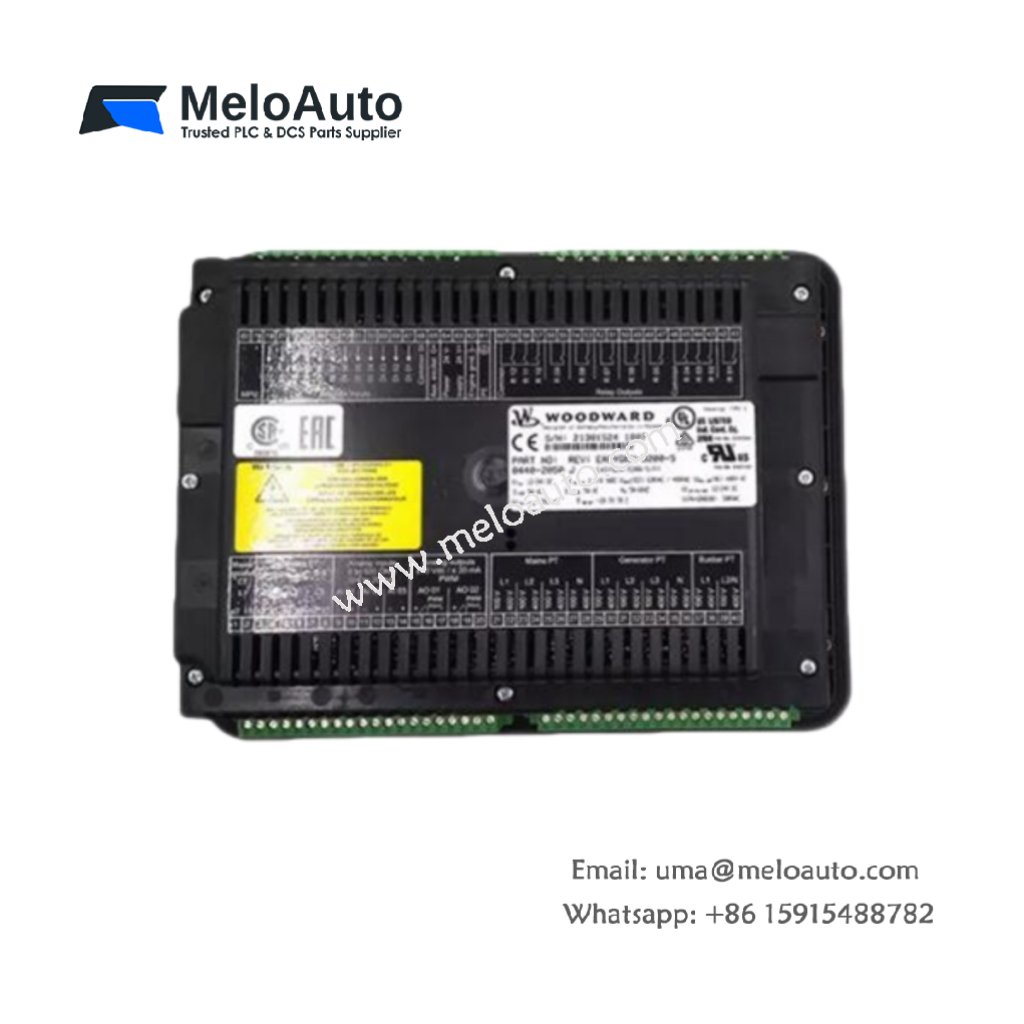

Woodward EASYGEN-3200-5 Genset Engine Controller

Overview

The Woodward EASYGEN-3200-5 is a highly efficient and reliable genset engine controller from the renowned Woodward EasyGen 3000 Series. Designed for power generation applications, it integrates seamlessly with various generators and engines, offering advanced control, monitoring, and protection capabilities. This controller is ideal for industrial, commercial, and critical backup power systems, ensuring optimal performance and stability across a wide range of operational conditions.

Key Features

Multi-Language Support: Supports multiple languages including English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, and Swedish.
Wide Frequency Range: Operates efficiently within a frequency range of 40-85 Hz, supporting 50/60 Hz operation.
Low Power Consumption: Consumes less than 0.15 W of power per path for enhanced energy efficiency.
Flexible Voltage Settings: Supports a wide primary setting range of 50 to 650,000 Vac.
Easy Integration: Compatible with various genset engines and systems, enabling quick and simple integration.

Applications

The Woodward EASYGEN-3200-5 is suitable for a wide range of applications, including:

Industrial Backup Power Systems
Commercial Power Generation
Remote Site Power Generation
Critical Infrastructure Protection
Power Plant Control Systems

Technical Specifications

Specification	Details
Part Number	EASYGEN-3200-5
Manufacturer	Woodward
Product Type	Genset Engine Controller
Input Resistance	Approx. 20 kOhms
Max Power Consumption per Path	< 0.15 W
Measuring Frequency	50/60 Hz (40 – 85 Hz)
Primary Setting Range	50 – 650,000 Vac
Multi-Language Support	English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish
Dimensions	200mm x 120mm x 80mm
Weight	1.2 kg
Mounting Type	Panel or Surface Mount
Protection Features	Overload, Overvoltage, Short Circuit, Under Voltage

Functional Description

The Woodward EASYGEN-3200-5 is engineered to provide advanced control and protection for genset engines. It monitors the operational parameters, ensuring smooth and efficient power generation, while automatically adjusting to varying power demands. The controller’s wide frequency range makes it suitable for global use, and its multi-language support ensures ease of use across different regions.

This unit also features a primary setting range of 50 to 650,000 Vac, enabling it to accommodate a wide variety of voltage inputs. Furthermore, its low power consumption (under 0.15 W per path) enhances the system’s overall efficiency, reducing the energy footprint in large-scale operations.

Why Choose the Woodward EASYGEN-3200-5?

Reliable Control: Provides robust and precise control for genset engines.
Global Compatibility: Multi-language support and wide operational frequency range.
Efficient Performance: Low power consumption ensures cost-effective operation.
Comprehensive Protection: Includes protection against overvoltage, short circuits, and other faults.
Flexible Voltage Range: Supports various voltage settings for diverse applications.

Conclusion

The Woodward EASYGEN-3200-5 Genset Engine Controller is an indispensable solution for efficient power generation. It combines flexibility, efficiency, and global compatibility, ensuring your power systems operate reliably in demanding conditions. Whether for industrial, commercial, or backup power systems, this controller ensures seamless integration, precise monitoring, and protection.
