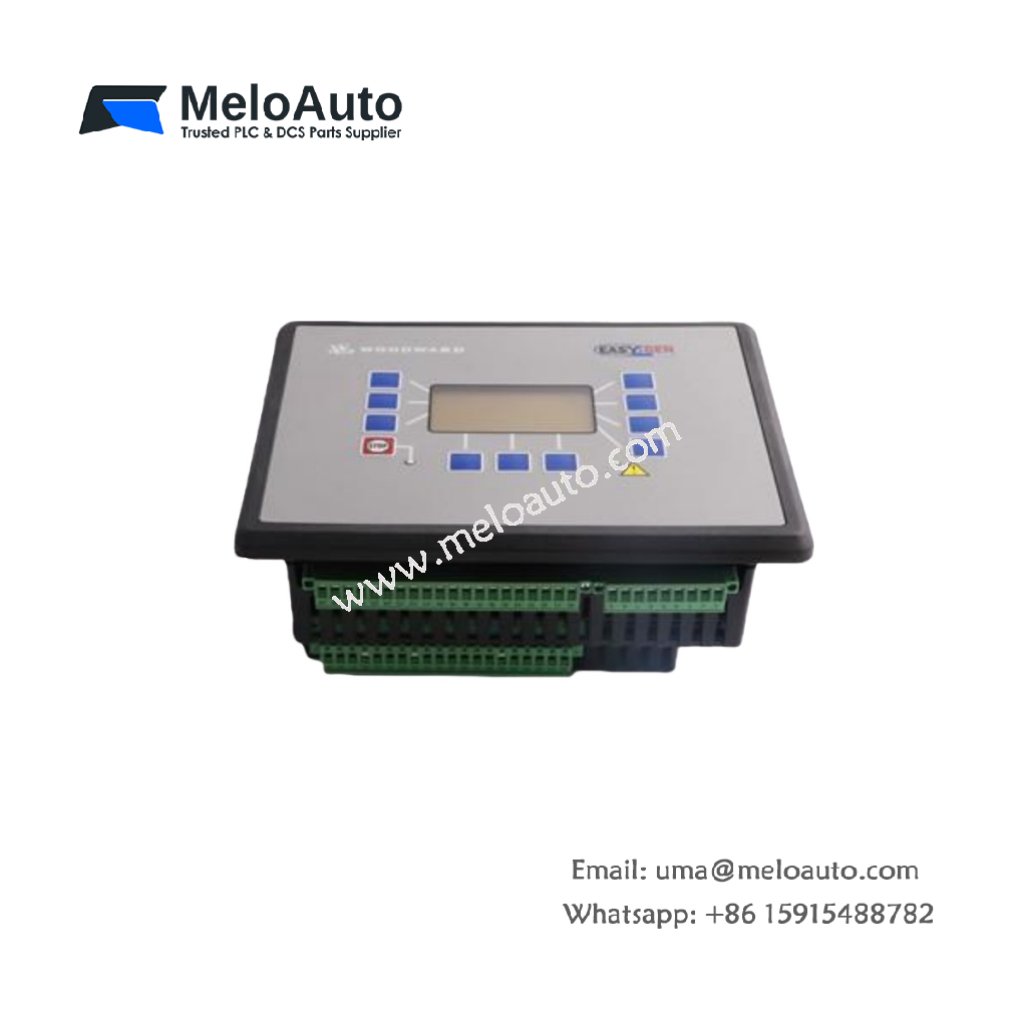

Woodward EASYGEN-2500-5: Compact Genset Controller

Overview

The Woodward EASYGEN-2500-5 is a highly versatile and compact genset controller from the easYgen-2000 Series. Designed for industrial applications, this controller can efficiently synchronize and load share up to 16 gensets in both island and parallel operation modes. It integrates advanced load-dependent start/stop programming, offering precise control over how gensets are activated or deactivated as the load changes. With features like multi-level password protection, PC or front-panel configuration, and discrete I/O expansion board connectivity, the EASYGEN-2500-5 offers seamless integration into various automation systems.

Key Features

• Synchronization and Load Sharing: The EASYGEN-2500-5 enables synchronization and load sharing across up to 16 gensets, ideal for large-scale power generation setups.
• Load-Dependent Start/Stop Programming: It automatically adjusts the operation of the gensets based on load fluctuations, ensuring efficient energy use.
• Multi-Level Security: The controller offers multi-level password protection, ensuring secure access and operation.
• Configuration Options: Configure the unit via PC or front panel, making it flexible for various user preferences and setup environments.
• Expansion Capabilities: With discrete I/O expansion board connectivity, the system can be customized to meet specific operational requirements.

Interface and Communication

• Interactive Front Panel: Equipped with a 128 x 64 dot interactive graphical LCD display with soft keys, the EASYGEN-2500-5 ensures an intuitive user interface for configuration and monitoring.
• Multi-Language Support: The controller supports 11 languages, including English, Japanese, Chinese, German, and Russian, making it accessible to a global user base.
• Multiple Communication Interfaces: It includes CANopen and Modbus protocols, allowing integration with other industrial devices such as PLCs and HMIs.
• I/O Connectivity: The controller includes 10 discrete control and alarm inputs, 11 discrete outputs, 4 configurable analog inputs, and 4 analog outputs for comprehensive system integration.
• Communication Ports: The EASYGEN-2500-5 features RS-485 and two CAN bus communication interfaces to enhance system connectivity.

Technical Specifications

Applications

The Woodward is ideal for applications requiring:

• Power Generation Systems: Synchronizing multiple generators in both island and parallel operations.
• Industrial Automation: Integrating seamlessly with PLCs and HMIs for advanced monitoring and control.
• Flexible Power Control: Automatic adjustment of genset operations based on load conditions, improving fuel efficiency and system performance.

Manufacturer & Model Information

• Brand: Woodward
• Model: EASYGEN-2500-5
• Category: Genset Controllers
