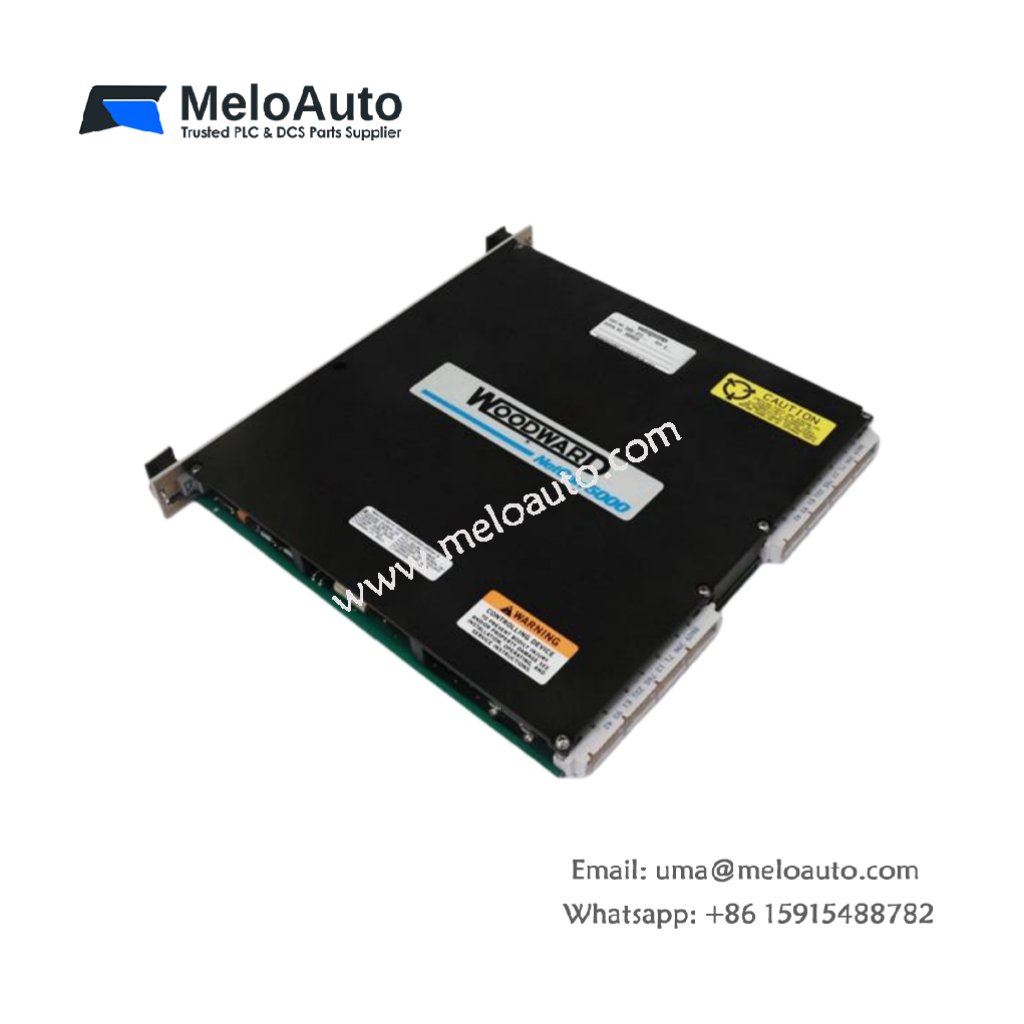

Woodward 5463-729 Speed Sensor Module

Overview

The Woodward 5463-729 is an advanced speed sensor module designed for high-precision rotational speed measurements. By utilizing Hall effect technology, this module generates a voltage proportional to the speed of a rotating shaft. With the integrated amplifier and filter, it ensures high-quality signals in challenging industrial settings. The Woodward 5463-729 is ideal for a wide range of applications where accurate and reliable speed measurements are crucial.

Key Features

Hall Effect Sensor: Delivers highly accurate and reliable speed measurement by using the Hall effect principle.
Integrated Amplifier and Filter: Enhances signal clarity by reducing noise and interference, ensuring stable performance.
Durable Design: The Woodward 5463-729 is NEMA 4X and IP67 rated, making it highly resistant to dust, water, and harsh environmental conditions.
Wide Operating Temperature Range: The module functions effectively in temperatures ranging from -40°C to 85°C, making it versatile across various climates.
Extended Life: With a lifespan exceeding 10 million hours, this sensor guarantees long-term reliability and minimal maintenance.

Applications

The Woodward 5463-729 is perfect for applications that require precise and reliable rotational speed measurements, including:

Engine Speed Measurement
Pump Speed Measurement
Fan Speed Measurement
Conveyor Belt Speed Measurement
Machine Tool Spindle Speed Measurement

Technical Specifications

Specification	Details
Part Number	5463-729
Manufacturer	Woodward
Product Type	Speed Sensor Module
Output Voltage	0 to 10 V
Sensitivity	10 mV/(1000 rpm)
Accuracy	±1% of reading
Linearity	+0.5% of full scale
Operating Temperature Range	-40°C to 85°C
Storage Temperature Range	-40°C to 125°C
Dimensions	63 x 30 x 18 mm (2.5 x 1.2 x 0.7 in)
Weight	0.38 kg

Functional Description

The Woodward 5463-729 is designed to offer reliable speed measurement in various industrial applications. By utilizing Hall effect sensing technology, it delivers accurate and stable speed readings. Additionally, the module integrates an amplifier and filter to ensure that the signals remain clear and free from electromagnetic interference.

Thanks to its rugged NEMA 4X and IP67 ratings, the Woodward 5463-729 excels in tough environments where exposure to dust, moisture, or extreme temperatures is common. Whether you’re monitoring the speed of pumps, engines, or conveyors, this module provides consistent, real-time data, enabling optimal performance in demanding conditions.

Advantages

High-Precision Measurement: The Woodward 5463-729 provides accurate and repeatable readings, helping ensure reliable performance in various industrial settings.
Versatile Application: With its wide operating temperature range and robust design, it’s suitable for use in a variety of machinery and applications.
Long Life and Durability: Designed for long-term use, it boasts a lifespan exceeding 10 million hours, ensuring minimal downtime.

Why Choose the Woodward 5463-729?

Reliability: With more than 10 million hours of operational life, the Woodward is engineered for durability and longevity.
Easy Integration: Its compact design and standard output voltage make it easy to integrate into existing control systems.
Rugged Design: Rated NEMA 4X and IP67, it can withstand challenging industrial environments, including exposure to moisture, dust, and temperature extremes.

Conclusion

The Woodward 5463-729 speed sensor module stands out for its precision, versatility, and reliability. Whether you’re measuring the speed of machinery or monitoring engine performance, this sensor module provides accurate, long-lasting solutions in demanding environments. Choose the Woodward 5463-729 for superior performance and minimal maintenance.
