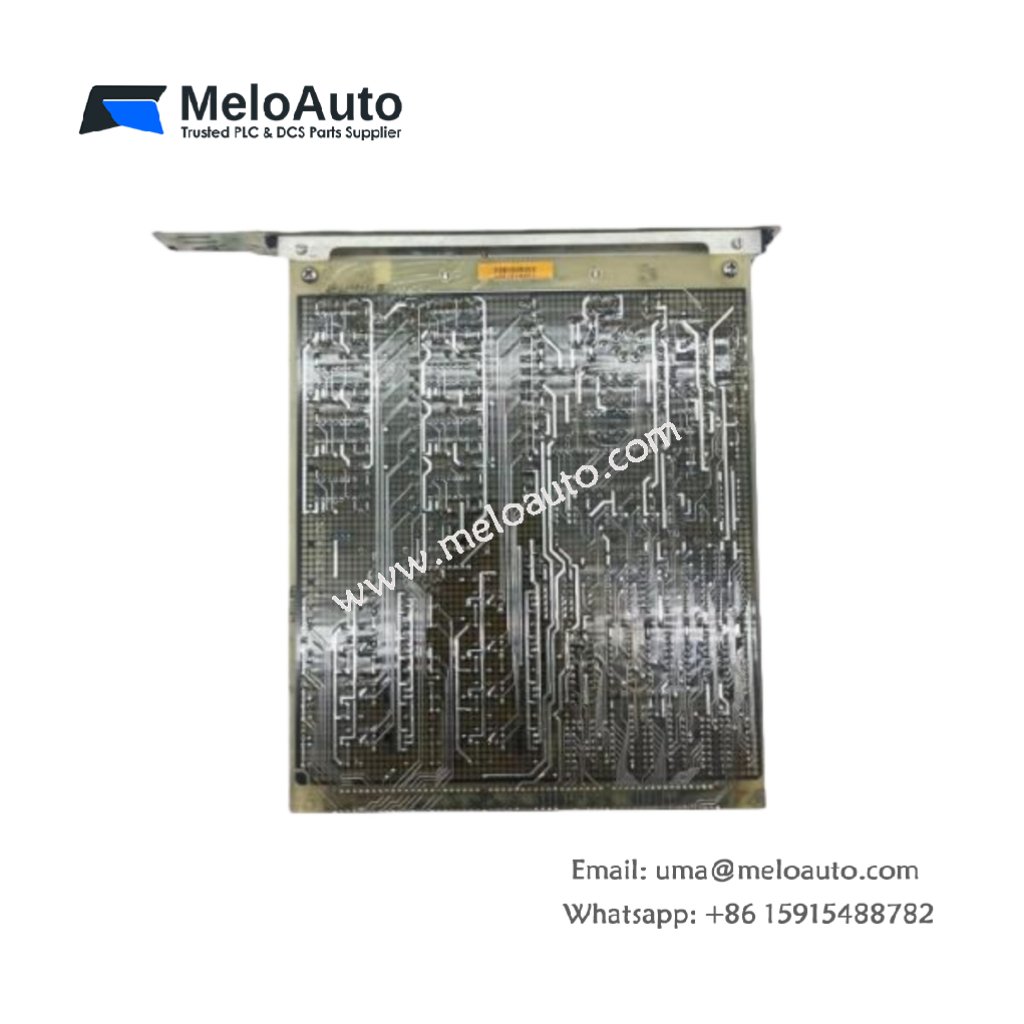

Woodward 5463-581 Governor Control Relay

Overview

The Woodward 5463-581 Governor Control Relay is designed to provide precise control over speed or position in industrial settings. This versatile relay is suitable for a wide range of applications, including diesel engines, gas engines, and industrial motors. It offers a single-channel output with a 25 A rated current, and operates efficiently with either 24 VDC or 120 VAC power. Its compact design simplifies installation, and it ensures reliable performance in demanding environments.

Key Features

Single-Channel Output Relay: The Woodward 5463-581 relay provides a single-channel output with a rated current of 25 A, making it ideal for controlling various industrial processes.
LED Indicators: Optional LED indicators clearly display the relay status, ensuring operators can quickly assess system performance.
Flexible Power Options: The relay operates on both 24 VDC and 120 VAC, offering flexibility for integration into different systems.
Compact and Easy Installation: Designed for space-saving and user-friendly installation, the Woodward 5463-581 simplifies setup in tight or challenging spaces.
Compliance: It meets NEMA and IEC standards, ensuring compatibility with industry regulations and providing reliable operation in diverse applications.

Technical Specifications

Specification	Details
Relay Type	SPST (Single Pole Single Throw)
Rated Current	25 A
Operating Voltage	24 VDC or 120 VAC
Power Consumption	5 W
Operating Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing

Applications

The Woodward 5463-581 Governor Control Relay is perfect for applications that require reliable speed or position control, such as:

Diesel Engines: Ensuring precise control of engine speed and performance.
Gas Engines: Regulating engine speed and maintaining operational stability.
Industrial Motors: Offering robust control for various motor types, enhancing efficiency and longevity.
