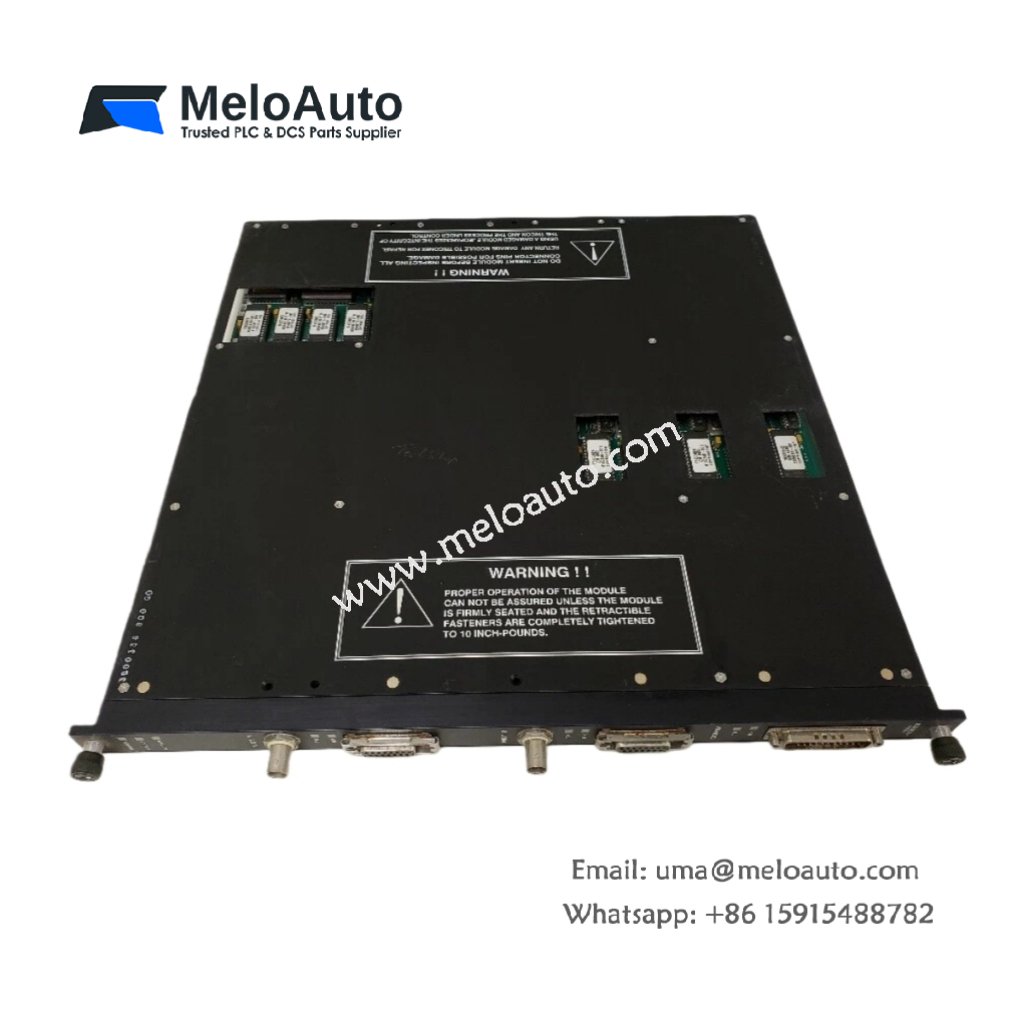

Triconex 4329 Network Communication Module (NCM)

Overview

The Triconex 4329 is a high-performance Network Communication Module (NCM) designed to facilitate reliable communication between Triconex systems, external hosts, and safety networks over Ethernet (802.3) networks. By supporting Triconex proprietary protocols and user-customized applications, the 4329 ensures seamless integration and smooth data exchange. With its dual Ethernet ports, it provides robust connectivity for safety-critical environments.

Key Features

Dual Ethernet Ports: The Triconex 4329 offers two BNC connectors: one for safety networks (NET 4) and one for open networking with external systems (NET 2).
Protocol Support: It supports proprietary Triconex protocols, including TSAA, and allows the use of user-written applications.
Real-Time Communication: Refreshes data once per scan, ensuring efficient and real-time data exchange.
Network Compatibility: Fully compatible with Ethernet (IEEE 802.3) standards, enabling seamless operation across existing network infrastructures.
High Data Rate: Operates at a communication speed of 40 Mbps, supporting fast and reliable data transfer.

Technical Specifications

Parameter	Specification
Product Type	Network Communication Module (NCM)
Manufacturer	Triconex
Communication Ports	2 BNC connectors (NET 4 and NET 2)
External Transceiver Ports	2 x 15-pin O-connectors
Serial Port	1 x RS-232 compatible
Port Isolation	522 VDC
Protocol	TSAA (TCP/UDP/IF/802.3)
Ethernet Compatibility	IEEE 802.3
Communication Speed	40 Mbps
Data Refresh Rate	Once per scan
Status Indicators	4 x TX (Transmit), 1 x RX (Receive) per port
Supported Functions	ON, ORICONDATAREQ, WRITE TRICONDATA, READ IRICON CLOCK, etc.

Supported Functions

ON: Powers on the module.
ORICONDATAREQ: Request data transfer from the system.
WRITE TRICONDATA: Writes data to the Tricon system.
READ IRICON CLOCK: Reads time data from the Tricon system clock.
SET TRICONCLOCK: Sets the system’s clock for synchronization.
READ IRICON RSF: Reads system status and diagnostics.

Applications

The Triconex 4329 is crucial for ensuring continuous communication within critical industrial processes. It connects Triconex systems to external hosts and safety networks, making it essential for:

Safety Network Integration: Facilitates communication between safety-critical systems and external devices.
Industrial Automation: Ensures reliable data exchange in automated control systems.
Data Acquisition: Supports real-time monitoring and data transfer for system diagnostics and operational control.
