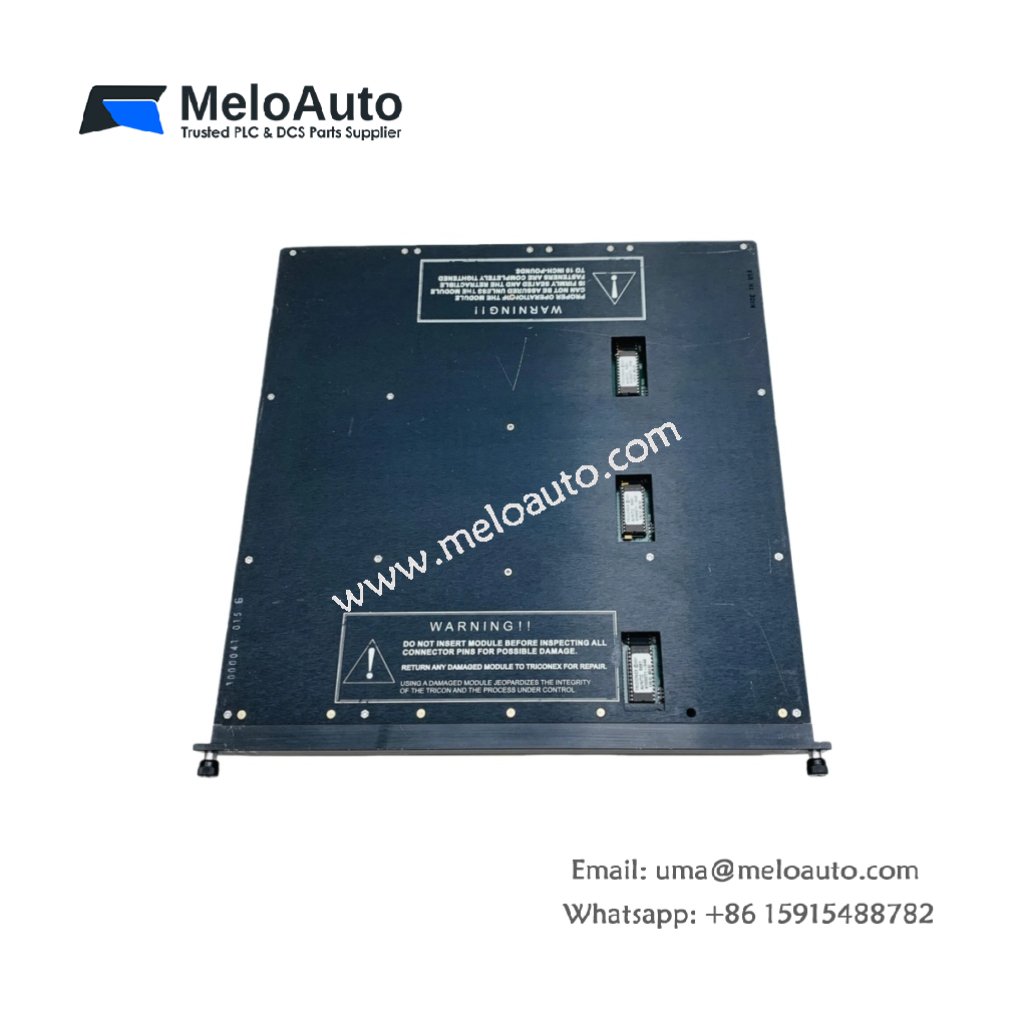

Triconex 3700 Analog Input Module

The Triconex 3700 is a high-performance analog input module designed for use in safety-critical systems. It effectively interfaces with a wide range of process sensors, converting analog signals—such as temperature, pressure, and flow data—into digital signals for integration with the Triconex Safety Instrumented System (SIS).

Key Features and Benefits

Signal Conversion: The Triconex 3700 efficiently converts analog signals from sensors into readable digital signals, ensuring reliable system data.
Signal Conditioning: It amplifies, filters, and isolates incoming analog signals, guaranteeing precision and accuracy.
Flexible Input Types: Supports a variety of analog input types, including voltage (e.g., 0-5V or 1-5V) and current loops (e.g., 4-20mA), depending on the specific model variant.
Wide Application Range: Suitable for process industries where precise and continuous monitoring is critical, such as oil and gas, power generation, and manufacturing.

Technical Specifications

Feature	Specification
Model	Triconex 3700
Type	Analog Input Module
Manufacturer	Triconex
Input Types	Voltage (0-5V, 1-5V), Current (4-20mA)
Signal Conditioning	Amplifies, Filters, Isolates Signals
Input Channels	Up to 16 Input Channels (depending on model variant)
Dimensions (L x W x H)	8.5 in x 5.5 in x 2.3 in (21.6 cm x 14 cm x 5.8 cm)
Weight	1.2 kg (2.65 lbs)
Operating Temperature	-40°C to +70°C
Power Supply	24 VDC
Certifications	CE, UL, ATEX

Applications

The Triconex 3700 analog input module is ideal for a wide range of applications in industries where precise measurement and control are paramount. Typical uses include:

Oil & Gas: Measures parameters like temperature, pressure, and flow in critical pipelines and processing systems.
Power Generation: Monitors key equipment such as turbines, boilers, and transformers, ensuring smooth and safe operations.
Manufacturing: Provides accurate data from sensors to automate processes in production lines.
Chemical Processing: Ensures accurate data acquisition from chemical reaction systems, maintaining safety and stability.

Conclusion

In summary, the Triconex 3700 analog input module is a crucial component for safety and reliability in industrial automation. Its capability to convert and condition a range of analog signals ensures accurate data transmission for control and monitoring systems. Built to handle diverse input types, it guarantees smooth integration with Triconex SIS for optimal operational performance.
