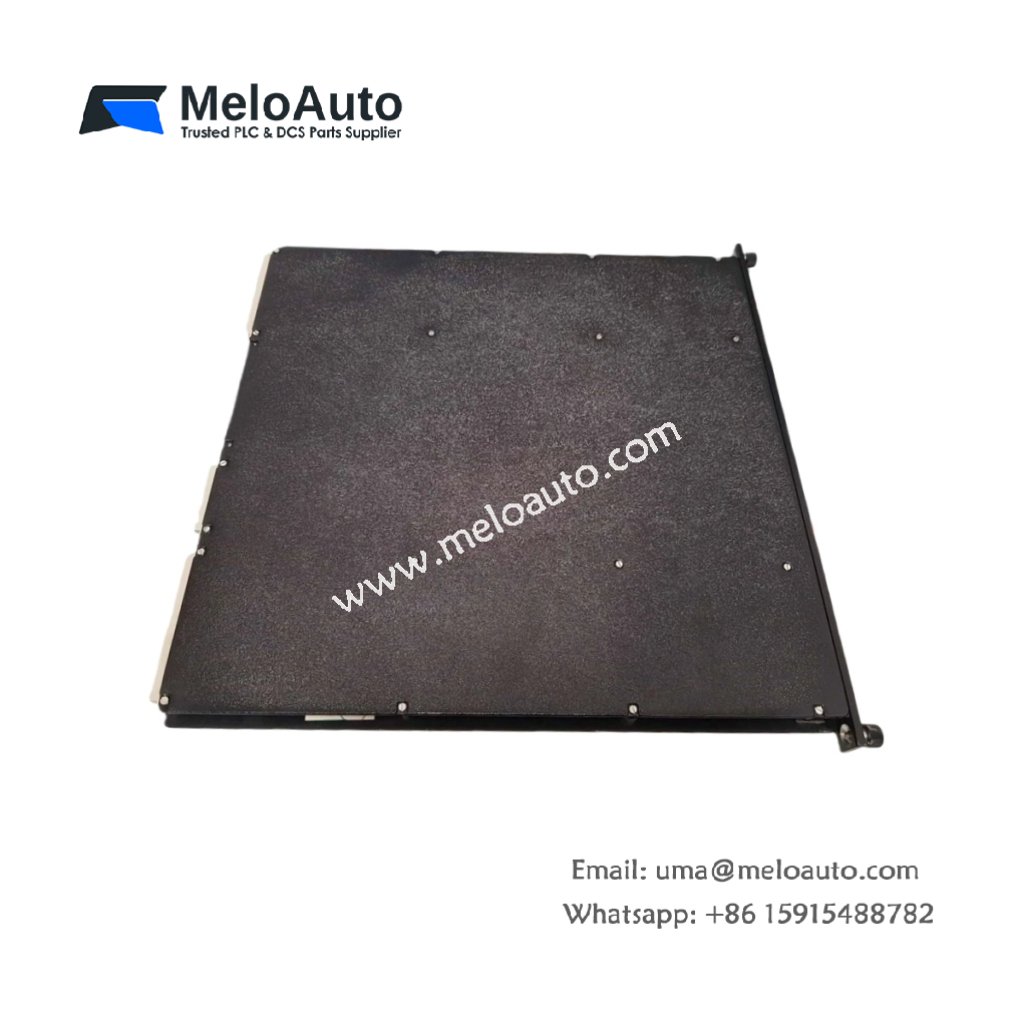

Triconex 3614E Supervised Digital Output (DO) Module

Overview

The Triconex 3614E is a Supervised Digital Output (DO) Module designed for use in safety-critical industrial applications. Manufactured by Triconex (now part of Schneider Electric), this module operates with 24V DC systems and ensures high reliability for controlling field devices. It provides fault tolerance and supervision to detect open/short circuits or component failures, making it ideal for environments where reliability is essential.

Typically used within Tricon PLC controllers, the Triconex 3614E supports critical safety instrumented systems (SIS), particularly in industries such as oil & gas, power generation, and chemical processing.

Key Features

Supervised Digital Output: Detects open/short circuits and failures, enhancing system integrity.
24V DC Compatibility: Designed to operate seamlessly in low-voltage systems, common in industrial safety applications.
Fault-Tolerant Design: Guarantees continued operation even in the event of component failure, ensuring maximum uptime.
High Reliability: Features Tricon’s triplicated architecture (TriBus) for redundant data transfer and comparison, providing high availability.
Versatile Application: Controls field devices like solenoids, lights, and relays within Triconex safety systems.

Technical Specifications

Parameter	Description
Model	Triconex 3614E
Type	Supervised Digital Output (DO) Module
Voltage	24V DC
Output Type	Digital Output
Supervision	Detects open/short circuits and failures
Reliability	Fault-Tolerant design with redundancy
Application	Safety Instrumented Systems (SIS)
Architecture	TriBus (triplicated architecture)

Applications

Oil & Gas: Used to control valves, solenoids, and other safety-critical devices.
Power Generation: Manages output signals for emergency shutdown systems and safety control.
Chemical Processing: Controls safety systems and process devices, ensuring operational safety.
Industrial Safety Systems: Ideal for SIS where high availability and fault tolerance are critical.

Advantages

Improved Reliability: The fault-tolerant design ensures that the system continues to operate smoothly, even during component failure.
Enhanced Supervision: The ability to detect faults such as open/short circuits enhances overall system integrity and safety.
Scalability: Compatible with various industrial applications, making it a versatile choice for large-scale systems.
Redundant Architecture: Utilizes TriBus architecture to guarantee the high availability of digital output signals.
